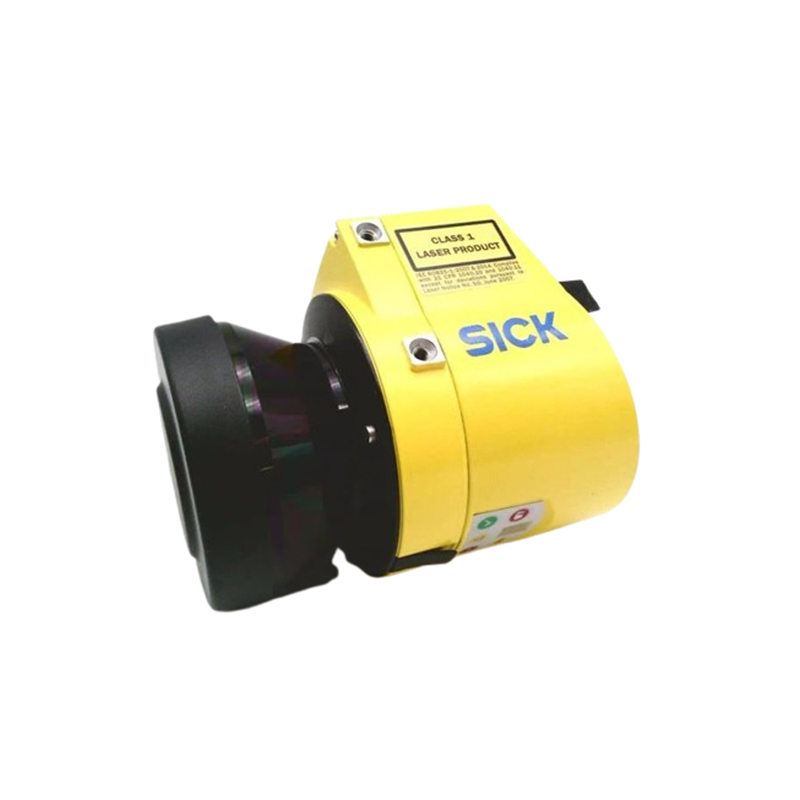

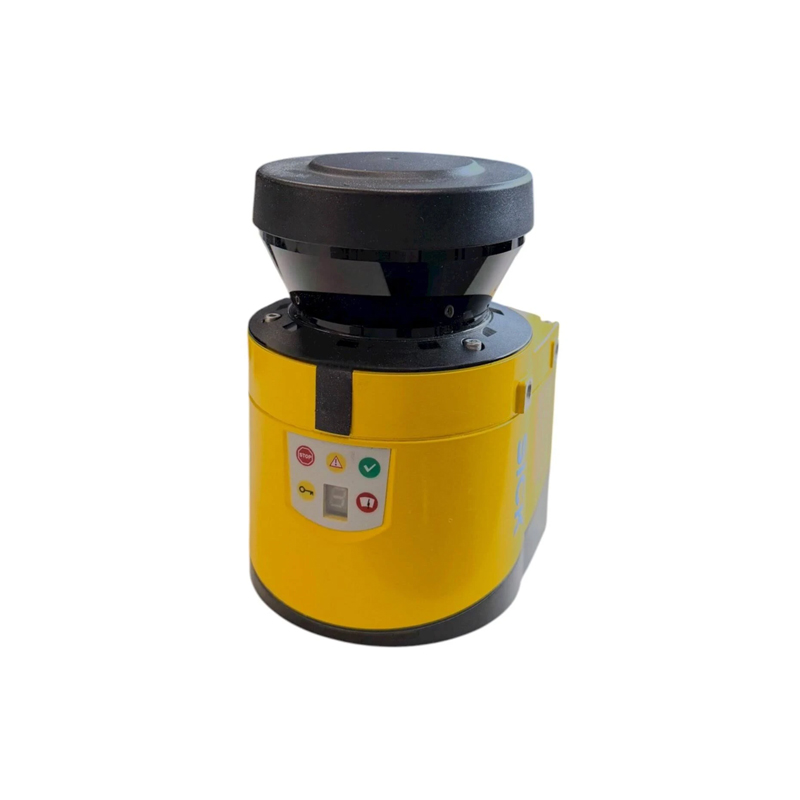

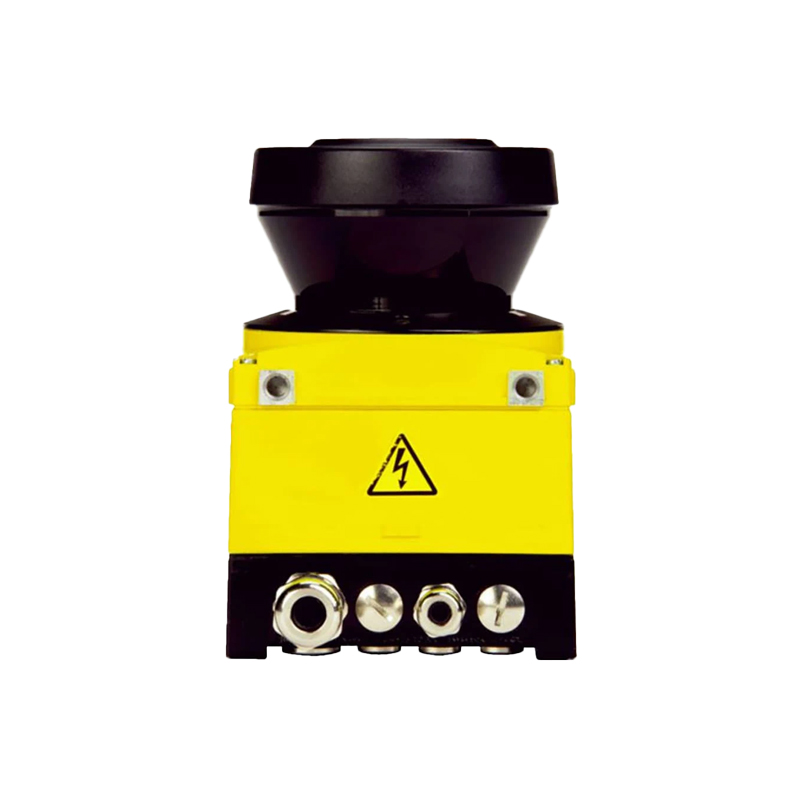

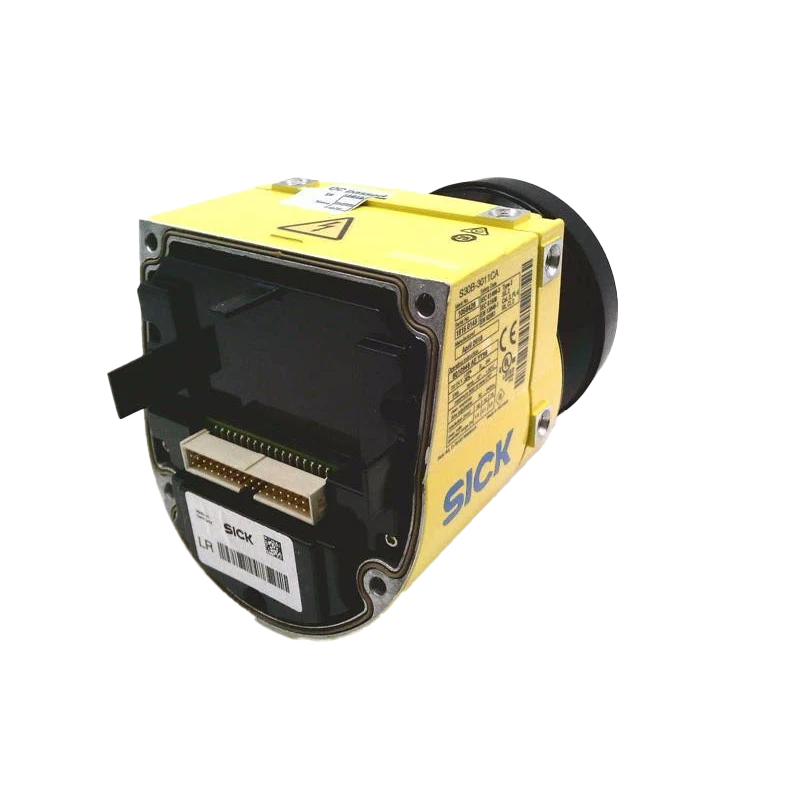

SICK S30B-3011DA Safety Laser Scanner, 270° Beam Angle, 24 Field Pair, Type 3, SIL2, IP65, Sensing Range: 30m
The SICK S30B-3011DA is a Type 3, SIL2-rated safety laser scanner designed for critical industrial automation and AGV applications. It provides 270° scanning coverage with a 30m protective range and 24 configurable field pairs for flexible safety and warning zone setup, housed in a rugged IP65 enclosure.
Features
- Type 3 (IEC 61496) and SIL2 (IEC 61508) certified safety laser scanner for critical machine guarding.
- 270° scanning angle with a configurable protective field range of up to 30 meters.
- 24 configurable field pairs enable flexible setup of multiple safety and warning zones.
- Rugged IP65-rated housing ensures reliable operation in dusty or wet industrial environments.
- RS-232 interface for configuration, diagnostics, and integration with PLCs and safety controllers.
Out of stock
The SICK S30B-3011DA Safety Laser Scanner utilizes time-of-flight (ToF) laser measurement to create a protective field around hazardous machinery or automated guided vehicles (AGVs). Its advanced signal processing allows for the definition of up to 24 distinct field pairs, enabling complex zone configurations that adapt to different operational states, such as running, standby, or maintenance modes.
Engineered for industrial durability, the scanner operates reliably within a temperature range of -10°C to 50°C and is protected against dust and water jets with an IP65 rating. The compact, robust housing is designed for straightforward mounting and integration into existing automation systems, providing reliable intrusion detection and personnel safety.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 120 × 1.1 cm |
