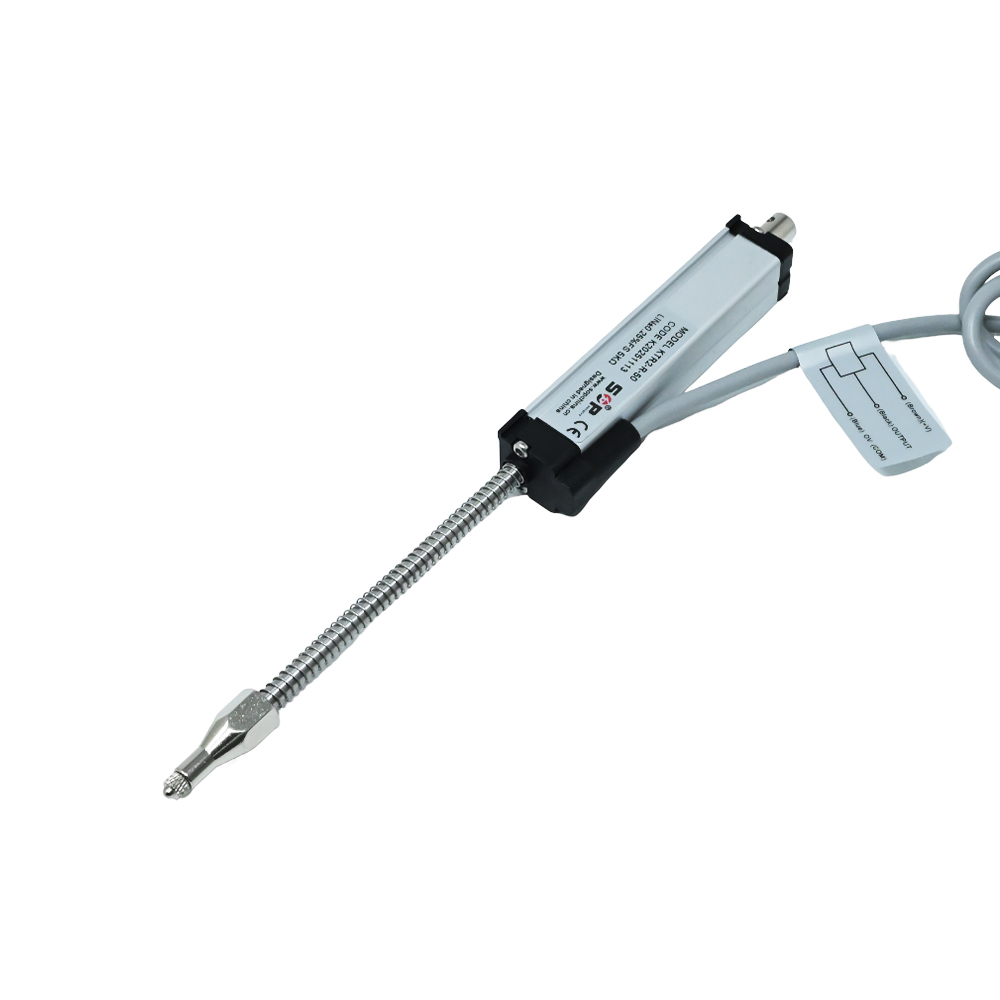

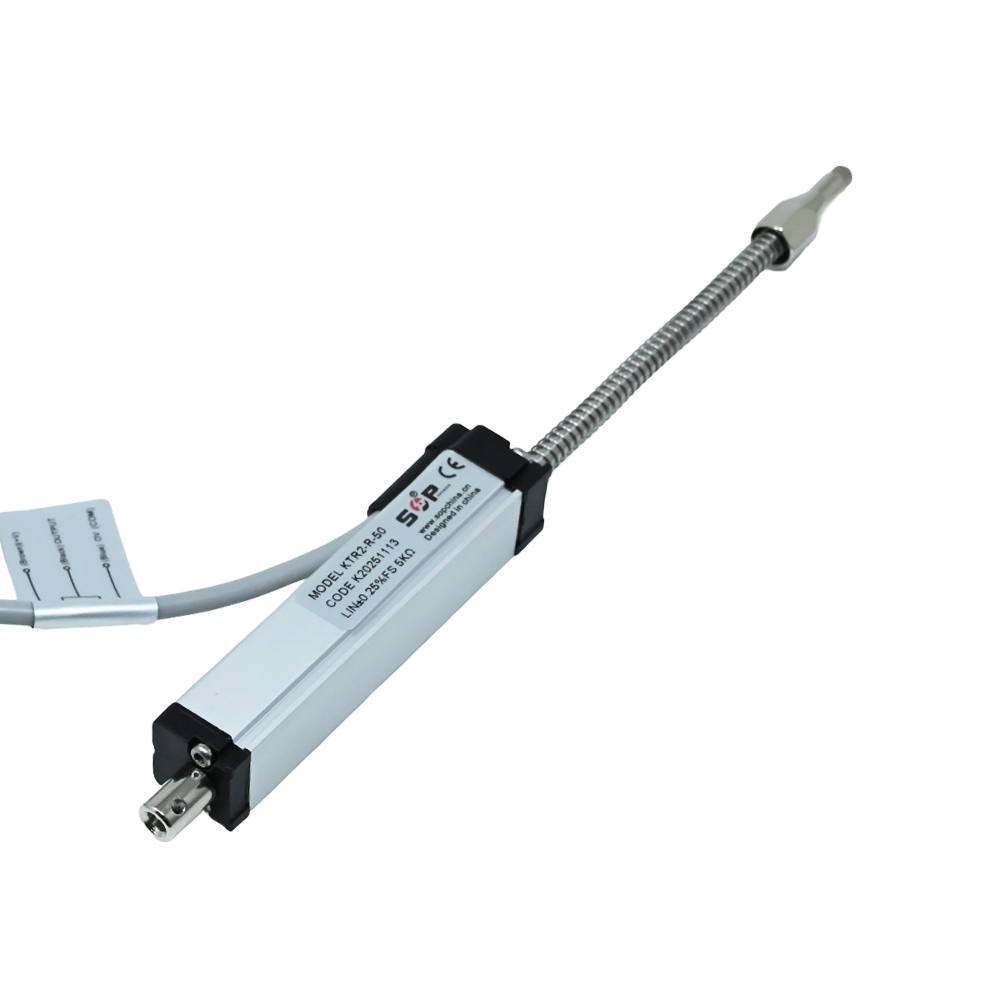

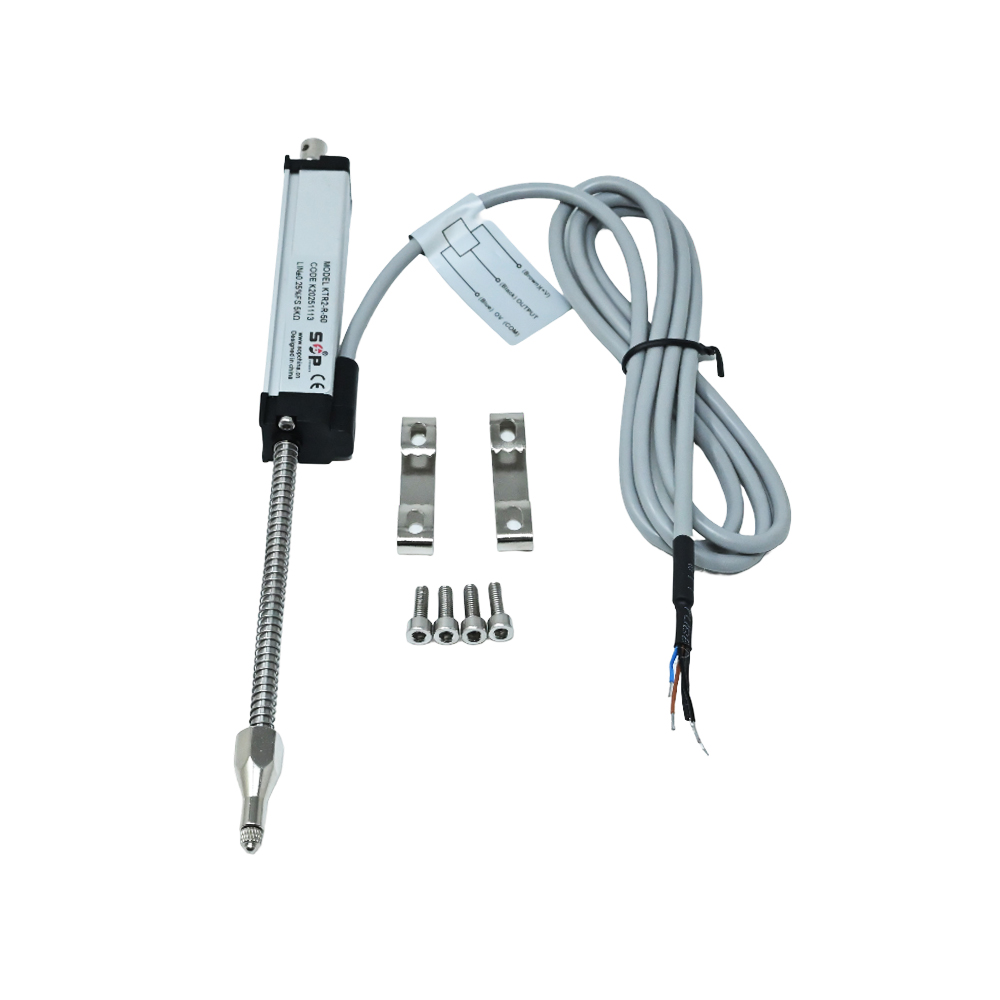

SOP KTR2-R-50 5KΩ Linear Displacement Sensor with Spring Return, 0-50mm Range
The SOP KTR2-R-50 is a compact, spring-return linear potentiometer displacement sensor providing a 5KΩ analog resistance output for precise 0-50mm position measurement. Designed for industrial automation, it integrates directly with PLCs, DAQ systems, and 3.3V/5V microcontroller ADCs for reliable motion feedback.
Features
- High-precision 0-50mm linear displacement measurement with ±0.05% linearity.
- Spring-return mechanism ensures consistent contact and eliminates manual resetting.
- Rugged anodized aluminum housing with IP65 rating for dust and water resistance.
- Long-life design rated for over 30 million mechanical cycles in demanding environments.
- Simple DIN-standard cable connection for easy integration into control systems.
Out of stock
The SOP KTR2-R-50 operates on a precision resistive potentiometer principle, where the linear displacement of the stainless steel rod directly alters the wiper position on a 5KΩ conductive track. This provides a continuous, infinite-resolution analog resistance signal proportional to position. The integrated return spring ensures the rod retracts automatically, making it ideal for reciprocating or push-to-measure applications.
Engineered for industrial durability, its anodized aluminum body and robust internal construction withstand significant vibration and impact. The sensor’s wide operating temperature range of -40°C to +80°C and IP65 ingress protection allow for reliable performance in harsh factory floor, automotive testing, or outdoor automation environments.
Additional Information
| Weight | 0.22 kg |
|---|---|
| Dimensions | 22 × 2.3 cm |
