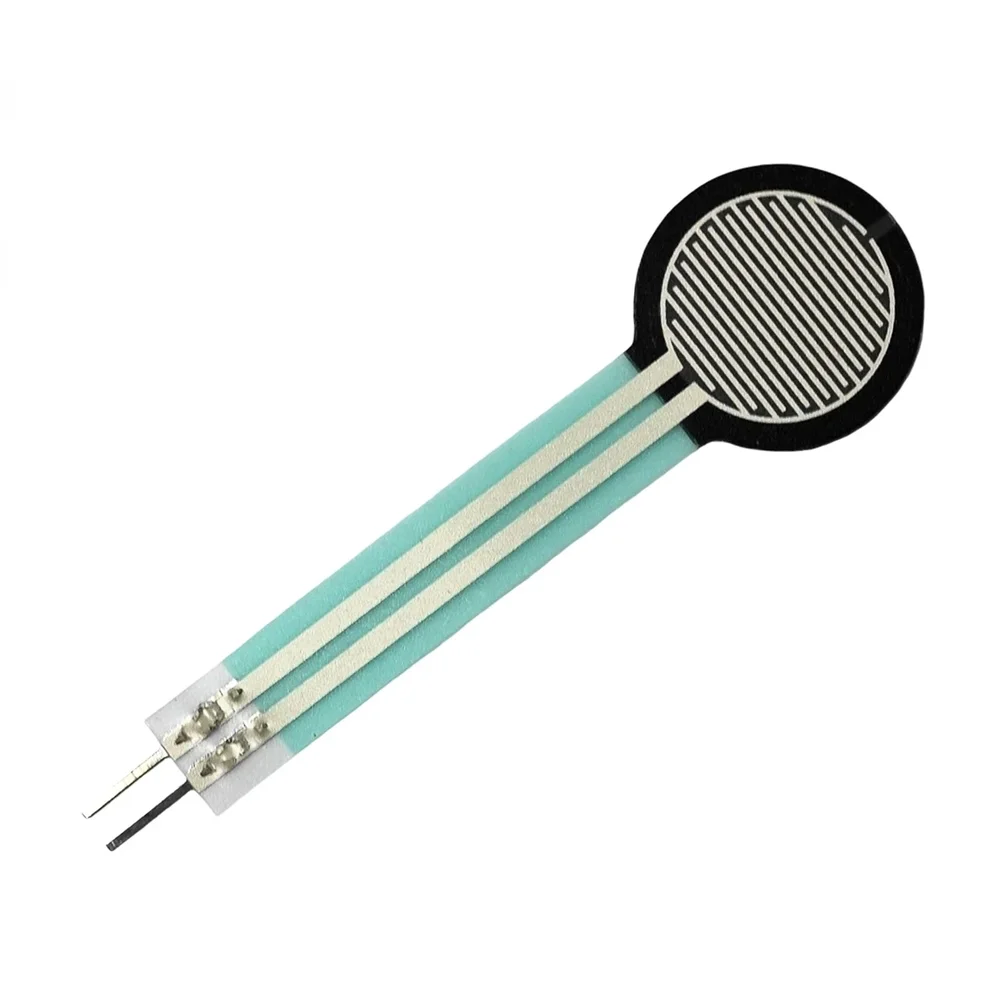

SOUSHINE FSR402-long tail 14.7mm Force Sensing Resistor (20g-10Kg) - Flexible Thin-Film
The SOUSHINE FSR402 is a flexible thin-film force sensing resistor utilizing piezoresistive technology for precise pressure detection from 20g to 10Kg. Its compact, durable PET construction and IP65 rating make it suitable for integration into space-constrained, flexible, or harsh environment applications, including portable electronics and industrial control systems.
Features
- Piezoresistive sensing technology provides reliable, repeatable force-to-resistance output.
- Flexible thin-film PET substrate enables conformal mounting in tight or curved spaces.
- IP65 environmental rating ensures dust-tight and water-jet resistant operation.
- Broad force sensing range from a light 20 grams up to a substantial 10 kilograms.
- Compact 14.7mm diameter active sensing area for minimal footprint designs.
Out of stock
The SOUSHINE FSR402 operates on the principle of piezoresistivity, where applied force decreases the internal resistance of a specialized polymer thick film. This change in resistance provides an analog signal proportional to the applied pressure, enabling precise measurement across its 20g to 10Kg range.
Constructed from durable PET film, the sensor offers mechanical flexibility and long-term reliability. The IP65-rated sealing protects the sensing element from dust ingress and low-pressure water jets, making it suitable for applications exposed to challenging environments. Its simple two-wire interface (long tail leads) facilitates easy integration with microcontroller ADCs, op-amp conditioning circuits, or dedicated FSR interface ICs for accurate signal acquisition.
