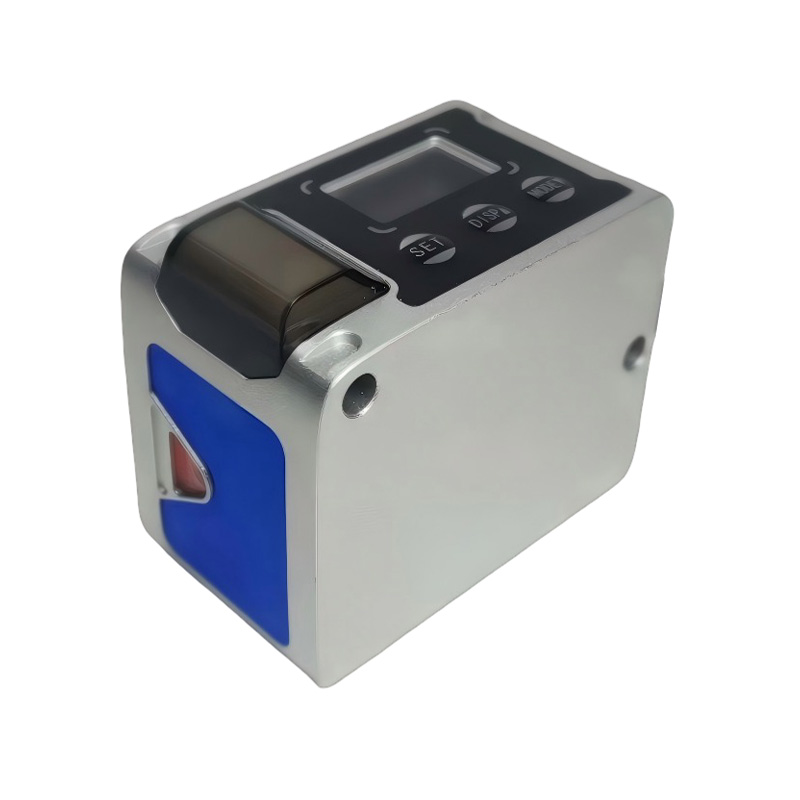

PONO WTA50-50M Laser Distance Sensor, RS485, 12-30VDC, 2000Hz, 0.05-50m Range
The PONO WTA50-50M is a high-speed industrial laser distance sensor featuring a 0.05 to 50-meter range with ±10cm accuracy and a 2000Hz response rate. It integrates via RS485 Modbus and operates on 12-30VDC, making it suitable for robotics, automation, and PLC-based control systems.
Features
- High-speed 2000Hz measurement frequency for real-time dynamic tracking.
- Wide 0.05m to 50m sensing range with ±10cm accuracy.
- Industrial RS485 Modbus communication interface for robust system integration.
- IP65-rated housing ensures reliable operation in dusty or damp industrial environments.
- Low 1.5W power consumption from a 12-30VDC supply.
Out of stock
The PONO WTA50-50M utilizes a 905nm Class 1 laser and time-of-flight (ToF) measurement principles to deliver precise, non-contact distance readings. Its high 2000Hz sampling rate ensures minimal latency for monitoring fast-moving objects or processes. The sensor’s internal signal conditioning provides stable performance across varying surface reflectivities.
Housed in a compact, IP65-protected enclosure, the sensor is built to withstand harsh industrial conditions, including exposure to dust and water jets. The 12-30VDC wide-range power input and low 1.5W consumption make it energy-efficient and compatible with standard industrial power supplies and PLCs.
Additional Information
| Weight | 0.072 kg |
|---|---|
| Dimensions | 5.2 × 4.4 cm |
