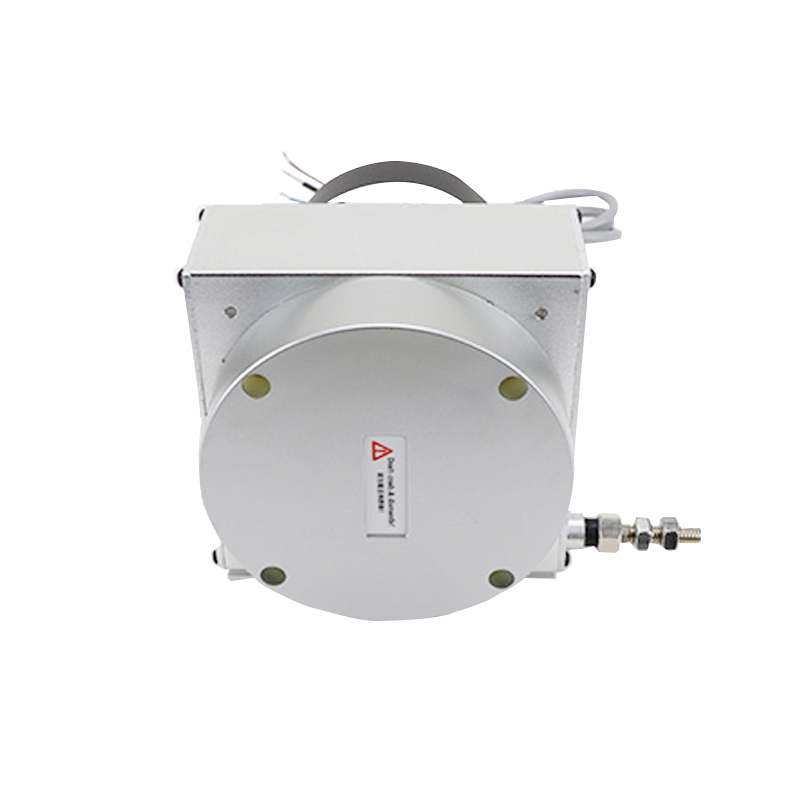

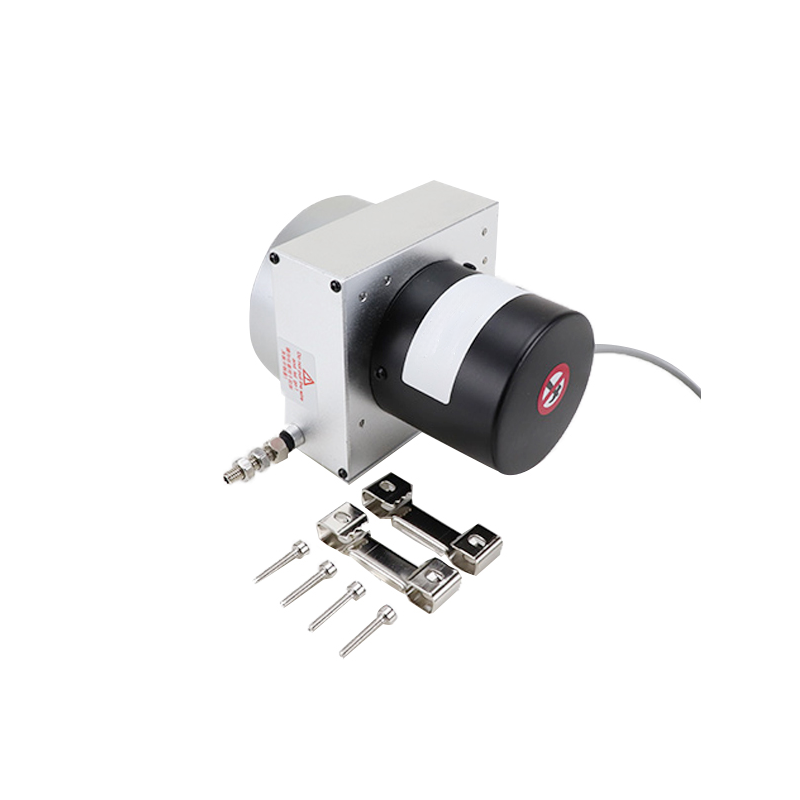

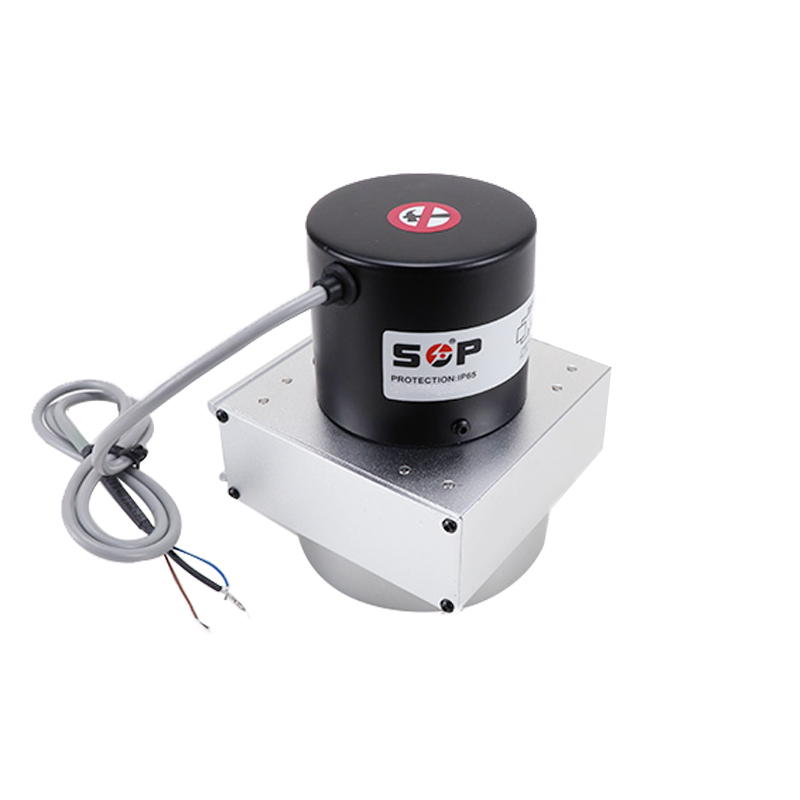

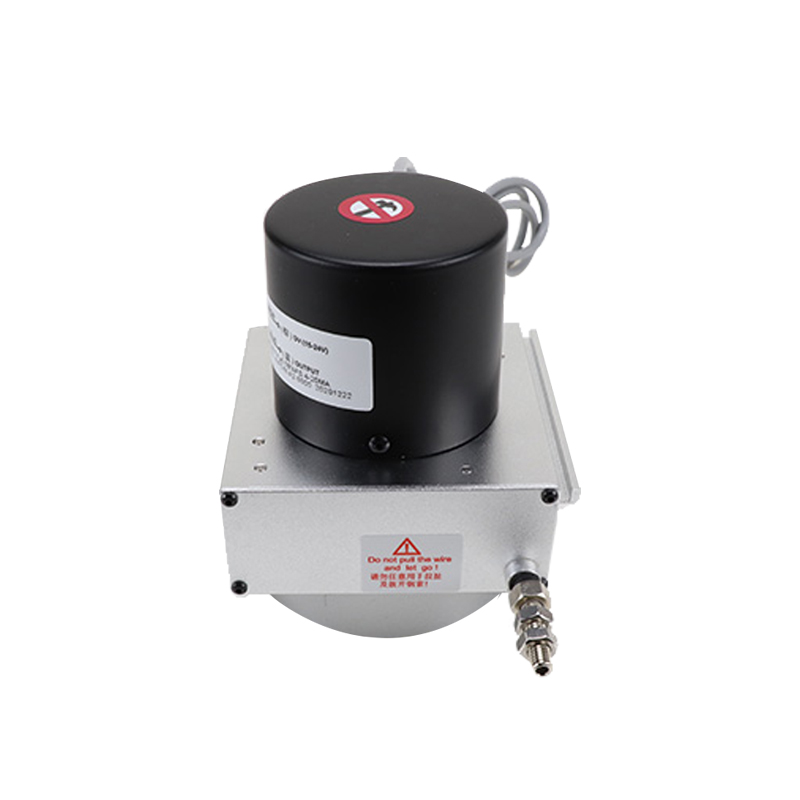

SOP WPS-S-R-500 0-500mm Rope Displacement Sensor, 5K Resistance Output, IP65, 1m Cable
The SOP WPS-S-R-500 is a compact draw-wire displacement sensor providing a 5KΩ analog resistance output for precise linear position measurement over a 0-500mm stroke. Featuring an IP65-rated aluminum housing and a 1m cable, it is designed for integration into industrial automation, machinery control, and motion feedback systems.
Features
- 0-500mm measurement range with high linearity and repeatability.
- 5KΩ analog resistive output for direct voltage divider interfacing.
- Rugged aluminum alloy housing with IP65 dust and water jet protection.
- Long-life design rated for up to five million operational cycles.
- Compact footprint for easy panel or bracket mounting in tight spaces.
Out of stock
The SOP WPS-S-R-500 is a robust rope displacement sensor, also known as a string potentiometer, utilizing a resistive belt measurement system. As the cable extends or retracts, the internal potentiometer provides a corresponding change in resistance, enabling accurate tracking of linear position. The sensor’s voltage distribution output ensures a stable analog signal proportional to the cable extension.
Engineered for demanding industrial environments, the unit features a sealed IP65 enclosure that protects the internal mechanism from dust and water jets. Its wide operating temperature range and durable aluminum alloy construction guarantee reliable performance in automation, material handling, and motion control applications where precise, long-stroke linear feedback is critical.
Additional Information
| Weight | 0.378 kg |
|---|---|
| Dimensions | 8.5 × 7 cm |
