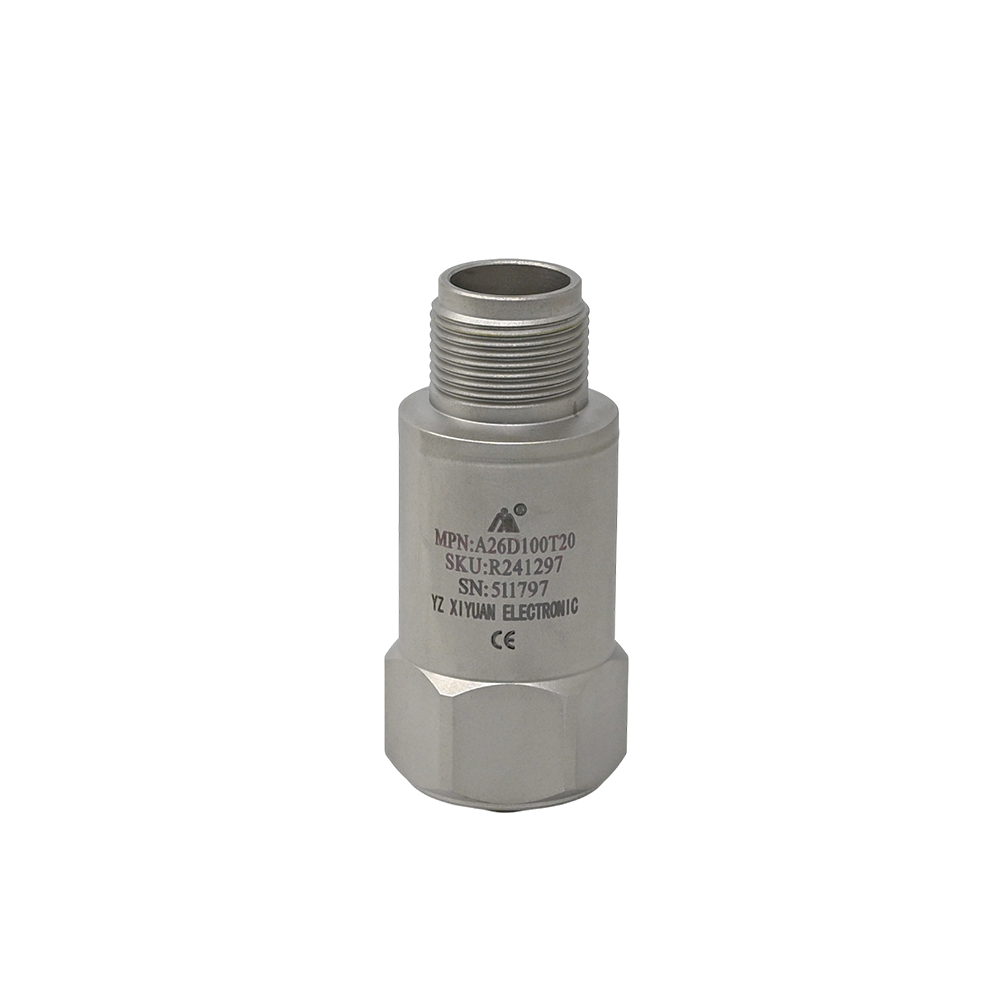

XIYUAN A26D100T20 Piezoelectric Acceleration Sensor, 100mV/g @ 160Hz, IEPE Output, IP65, MIL Connector w/ 3M Cable

Name: XIYUAN A26D100T20 Piezoelectric Acceleration Sensor, 100mV/g @ 160Hz, IEPE Output, IP65, MIL Connector w/ 3M Cable
Brand: XIYUAN
SKU: SENS-1109
Price: 19989.00 INR
Availability: OutOfStock

₹19,989.00 (Inclusive of all taxes)

Out of Stock

The XIYUAN A26D100T20 is a high-precision piezoelectric accelerometer with a 100mV/g sensitivity at 160Hz, delivering IEPE voltage output for direct compatibility with industrial data acquisition systems, PLCs, and vibration monitoring hardware. Its robust stainless-steel housing and IP65 rating ensure reliable performance in demanding environments.

Features

High sensitivity of 100mV/g at 160Hz for precise vibration measurement.
IEPE (ICP®) voltage output (±5V peak) for plug-and-play industrial DAQ integration.
Wide frequency response from 1Hz to 20kHz for capturing a broad vibration spectrum.
Rugged IP65-rated stainless-steel housing for harsh environment durability.

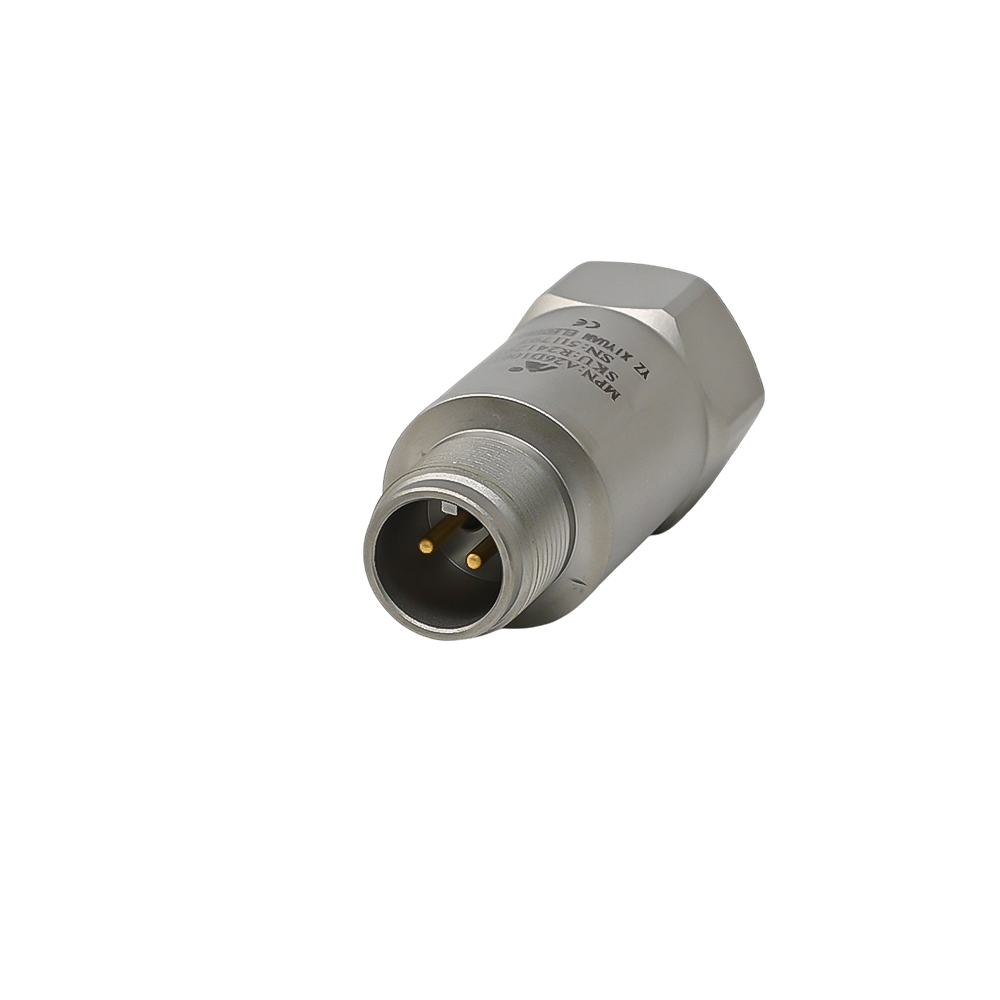

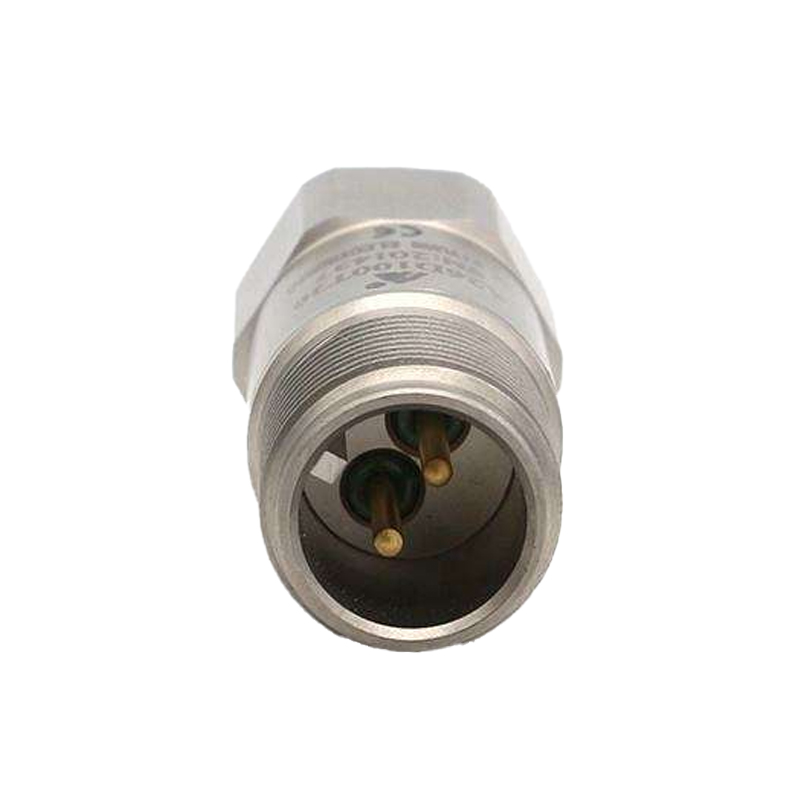

Includes MIL two-core connector with a pre-wired 3-meter shielded cable.

Out of stock

Get Notified When Available

Description

The A26D100T20 utilizes a high-grade PZT-5 piezoelectric sensing element to convert mechanical vibration into a proportional, low-noise electrical signal. Its built-in IEPE (Integrated Electronics Piezo-Electric) signal conditioning provides a stable, low-impedance voltage output, eliminating the need for external charge amplifiers and simplifying system integration.

Engineered for industrial condition monitoring, the sensor operates reliably across an extended temperature range of -40°C to +120°C and withstands shock loads up to ±3000g. The hermetic stainless-steel construction and IP65 environmental sealing protect the sensitive electronics from moisture, dust, and corrosive atmospheres, ensuring long-term measurement stability in applications from power generation to heavy machinery.

Key Features

Industrial-grade PZT-5 piezoelectric ceramic sensing element for high stability.
IEPE constant current powered output (18-28 VDC, 2-10 mA) for simplified two-wire operation.
Excellent amplitude linearity (±1%) across the full ±50g dynamic range.
High signal-to-noise ratio with less than 50μV RMS inherent noise.
Robust stainless-steel housing with integral mounting thread for secure installation.
IP65 protection rating for resistance to dust and water jets.
Wide operating temperature range (-40°C to +120°C) for extreme environments.

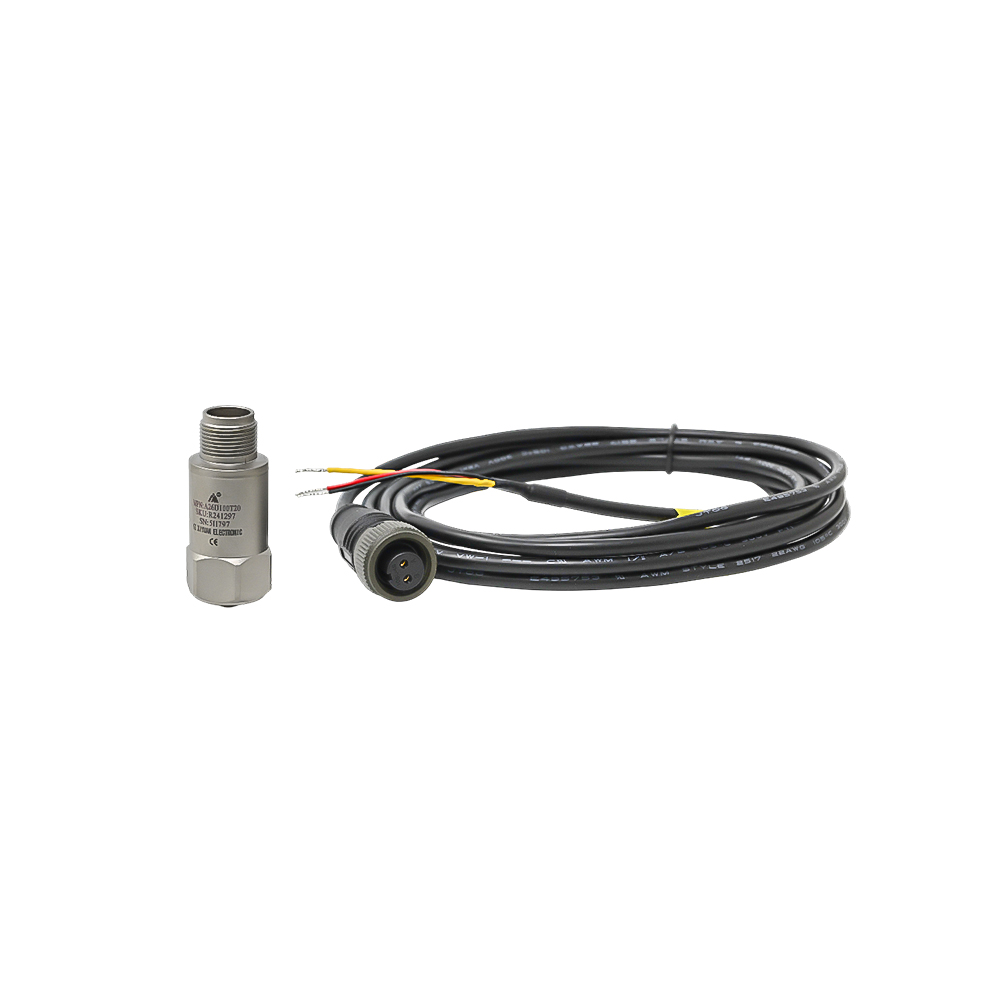

Supplied with a 3-meter shielded cable terminated with a standard MIL-style connector.

Applications

Predictive maintenance and vibration monitoring on industrial turbines, compressors, and pumps.
Structural health monitoring and modal analysis on bridges, wind turbines, and heavy machinery.
Condition-based monitoring of rotating equipment such as motors, gearboxes, and fans.
Acoustic emission detection for early fault identification in bearings and mechanical assemblies.
Vibration testing and analysis in automotive, aerospace, and product validation labs.

Technical Specifications

Sensitivity	100 mV/g @ 160 Hz
Frequency Range	1 Hz – 20,000 Hz
Dynamic Range (Peak)	±50 g
Output Type	IEPE (ICP®) Voltage
Output Voltage (Peak)	±5 V
Excitation Voltage	18 – 28 VDC
Excitation Current	2 – 10 mA
Non-Linearity	≤ ±1%
Broadband Noise	< 50 µV RMS
Shock Survival	±3000 g
Housing Material	Stainless Steel
Protection Rating	IP65
Operating Temperature	-40°C to +120°C
Connector	MIL Two-Core
Cable Length	3 m
Weight (Approx.)	80 g

Frequently Asked Questions

What power supply is required for the A26D100T20 IEPE sensor?

The sensor requires a constant current DC excitation voltage between 18 and 28 volts, with a current supply capability of 2 to 10 mA, which is standard for IEPE/ICP® compatible data acquisition systems and signal conditioners.

What is the output signal type and how do I connect it to my DAQ system?

The sensor provides a low-impedance, voltage-mode IEPE output. Connect the supplied two-core shielded cable between the sensor's MIL connector and an IEPE-compatible input channel on your DAQ device, PLC, or analyzer, ensuring proper grounding for noise immunity.

Can this sensor be used for high-frequency vibration measurement?

Yes, with a flat frequency response from 1 Hz up to 20 kHz, the A26D100T20 is suitable for capturing a wide spectrum of vibration signals, including those associated with bearing defects, gear mesh, and high-speed machinery.

Is the sensor suitable for outdoor or harsh industrial environments?

Absolutely. The stainless-steel hermetic housing and IP65 rating provide robust protection against dust, moisture, and corrosive atmospheres, making it ideal for long-term installation in challenging environments like power plants, offshore platforms, and manufacturing facilities.
