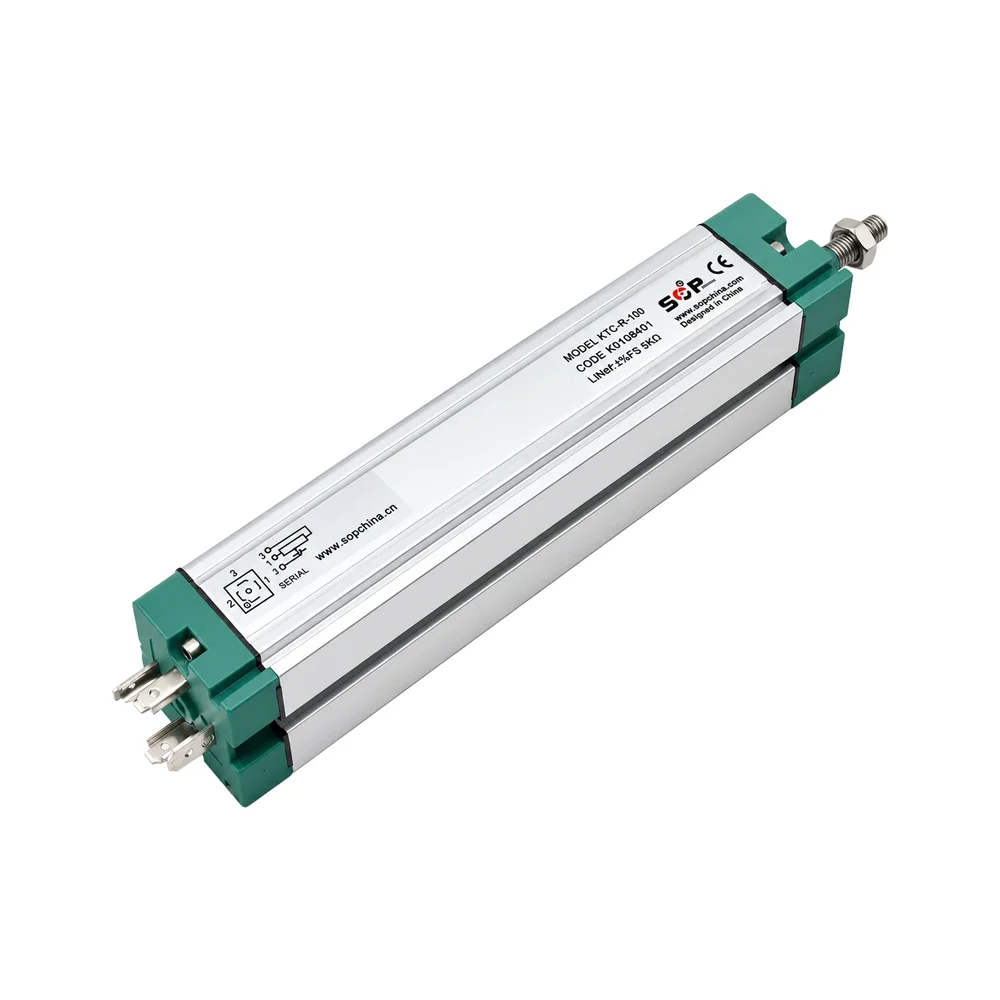

SOP KTC-R-100 Linear Displacement Sensor, 100mm Stroke, 5KΩ Analog Output, Rod-Type Potentiometer

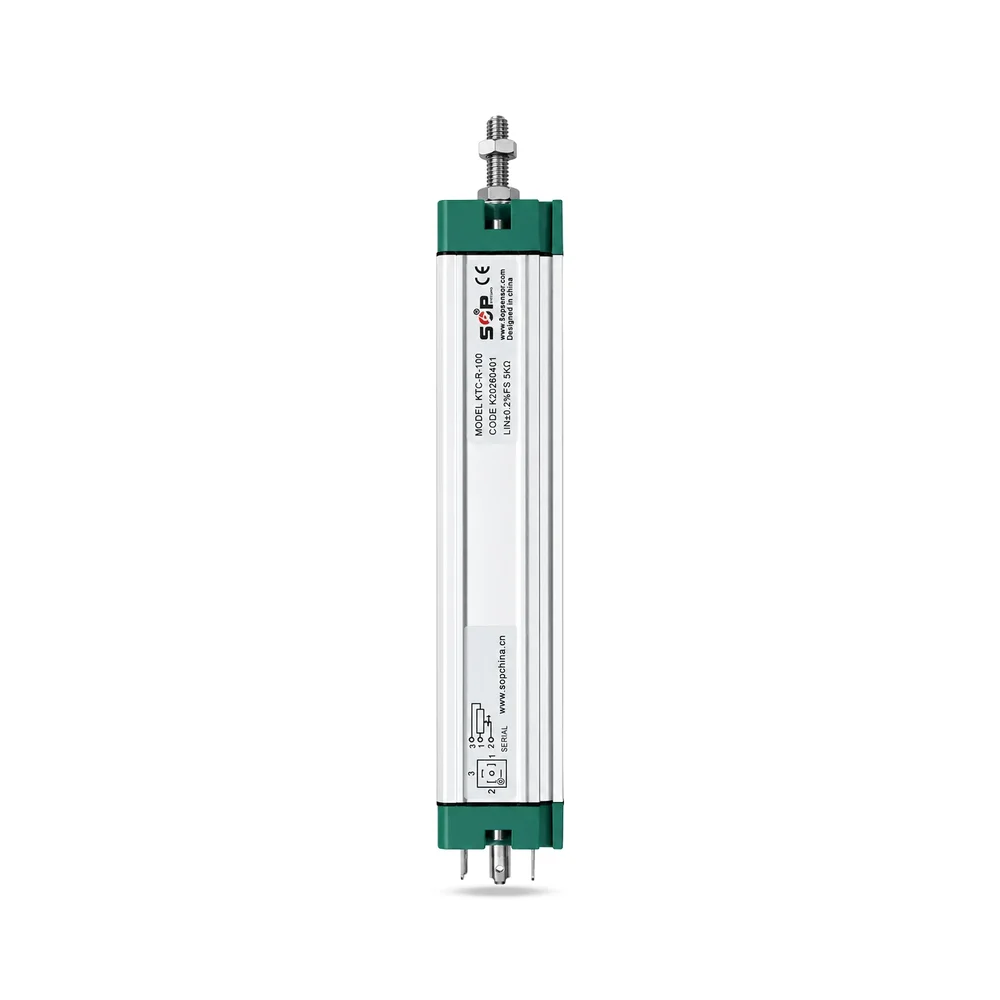

SOP KTC-R-100 Linear Displacement Sensor, 100mm Stroke, 5KΩ Analog Output, Rod-Type Potentiometer - Image 2

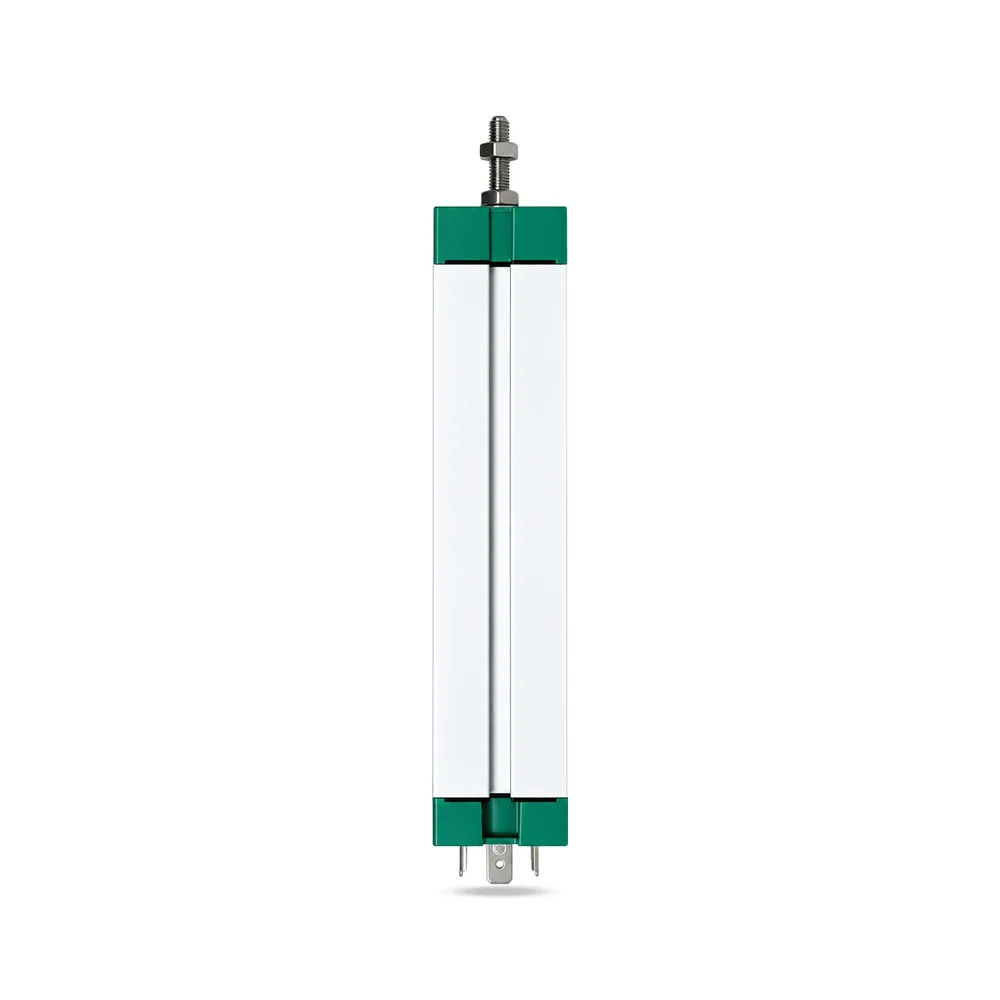

SOP KTC-R-100 Linear Displacement Sensor, 100mm Stroke, 5KΩ Analog Output, Rod-Type Potentiometer - Image 3
SKU: SENS-0044
📋 GST Invoice Available

SOP KTC-R-100 Linear Displacement Sensor, 100mm Stroke, 5KΩ Analog Output, Rod-Type Potentiometer

₹3,289.00 (Inclusive of all taxes)
Out of Stock

The SOP KTC-R-100 is a high-precision rod-type linear displacement sensor providing a 5KΩ analog resistive output over a 100mm stroke. Engineered for industrial automation, hydraulic systems, and motion control applications, it delivers exceptional linearity and repeatability for reliable position feedback.

Features

  • 100mm Measuring Stroke with ±0.05% high linearity for accurate position detection.
  • 5KΩ Analog Resistive Output provides infinite resolution and direct interface with PLCs and control systems.
  • IP65 Protection Rating and anodized aluminum housing ensure durability in harsh industrial environments.
  • Exceptional Repeatability below 0.01mm and mechanical life exceeding 30 million cycles.
  • DIN 43650 Connector and adjustable mounting stand facilitate easy installation and maintenance.

Out of stock

Description

The SOP KTC-R-100 Linear Displacement Sensor operates on a precision resistive potentiometer principle, converting linear rod movement into a proportional analog resistance change. This provides infinite resolution position feedback ideal for closed-loop control systems in industrial machinery.

Constructed with a stainless steel measuring rod and an anodized aluminum housing, the sensor is built for long-term reliability under demanding conditions. Its IP65 rating protects against dust ingress and water jets, while its operating temperature range from -40°C to +80°C ensures stable performance across diverse industrial environments.

Key Features

  • High-Precision Measurement: Delivers ±0.05% linearity and repeatability below 0.01mm for critical position control.
  • Robust Industrial Design: Features an anodized aluminum housing and stainless steel rod for impact resistance and corrosion protection.
  • Long Operational Life: Rated for over 30 million mechanical cycles and displacement speeds up to 5m/s.
  • Versatile Electrical Interface: Standard 5KΩ output (10KΩ optional) with a DIN 43650 connector for reliable industrial wiring.
  • Wide Operating Range: Functions from -40°C to +80°C with an allowable supply voltage up to 28V DC.
  • Integrated Mounting Solution: Includes an adjustable stand for flexible and secure flange mounting.

Applications

  • Hydraulic Cylinder Position Feedback: Precise stroke monitoring and control in industrial hydraulic presses and actuators.
  • Injection Molding & Die-Casting Machines: Accurate measurement of mold clamp position and ejection plate travel.
  • Industrial Automation & Robotics: Linear axis positioning and end-effector travel feedback in automated assembly lines.
  • Material Handling Systems: Position control for lifts, conveyors, and gantry systems requiring reliable linear feedback.
  • Test & Measurement Equipment: Integration into fixtures for verifying linear displacement and repeatability in quality control.

Technical Specifications

ModelKTC-R-100
Measuring Stroke100 mm
Electrical Stroke100 mm
Standard Resistance5 KΩ
Optional Resistance10 KΩ
Linearity±0.05%
Repeatability<0.01 mm
Mechanical Life>30 × 10⁶ cycles
Max Displacement Speed<5 m/s
Housing MaterialAnodized Aluminum
Rod MaterialStainless Steel
Protection RatingIP65
Operating Temperature-40°C to +80°C
Allowable Supply VoltageUp to 28 VDC
Output SignalAnalog Resistance
Sensor TechnologyResistive Potentiometer
Mechanical FixationAdjustable Stand (Flange Mount)
ConnectorDIN 43650 Standard
Shell Length168 mm
Housing Size32 × 32 mm
Weight (Without Accessories)210 g

Frequently Asked Questions

What is the output signal of the KTC-R-100 sensor and how do I interface with it?

The KTC-R-100 provides a 5KΩ analog resistive output, which changes proportionally with the rod's position. You can interface it directly with PLC analog input modules, data acquisition systems, or simple voltage divider circuits using its standard DIN 43650 connector. The infinite resolution output requires no special communication protocol.

What is the maximum supply voltage and how do I power this sensor?

The sensor has an allowable supply voltage of up to 28V DC. It is a passive resistive device, so you typically apply a stable excitation voltage across its two signal wires. Ensure your power source is within this limit to prevent damage and maintain measurement accuracy over the full operating temperature range.

How do I mount and install the KTC-R-100 linear displacement sensor?

The sensor is designed for rod-type, flange mounting using the included adjustable stand. The stainless steel rod should be aligned with the moving part whose displacement you need to measure, typically via a clevis or ball joint to avoid side loads. Secure the anodized aluminum housing via the provided mounting assembly and screws for stable operation.

Package Includes

  • 1 x SOP KTC-R-100 Linear Displacement Sensor
  • 1 x Electro Valve Connector (DIN 43650)
  • 2 x Mounting Assembly (Adjustable Stand)
  • 4 x Screw

Additional Information

Weight 0.221 kg
Dimensions 25 × 6 × 4 cm
