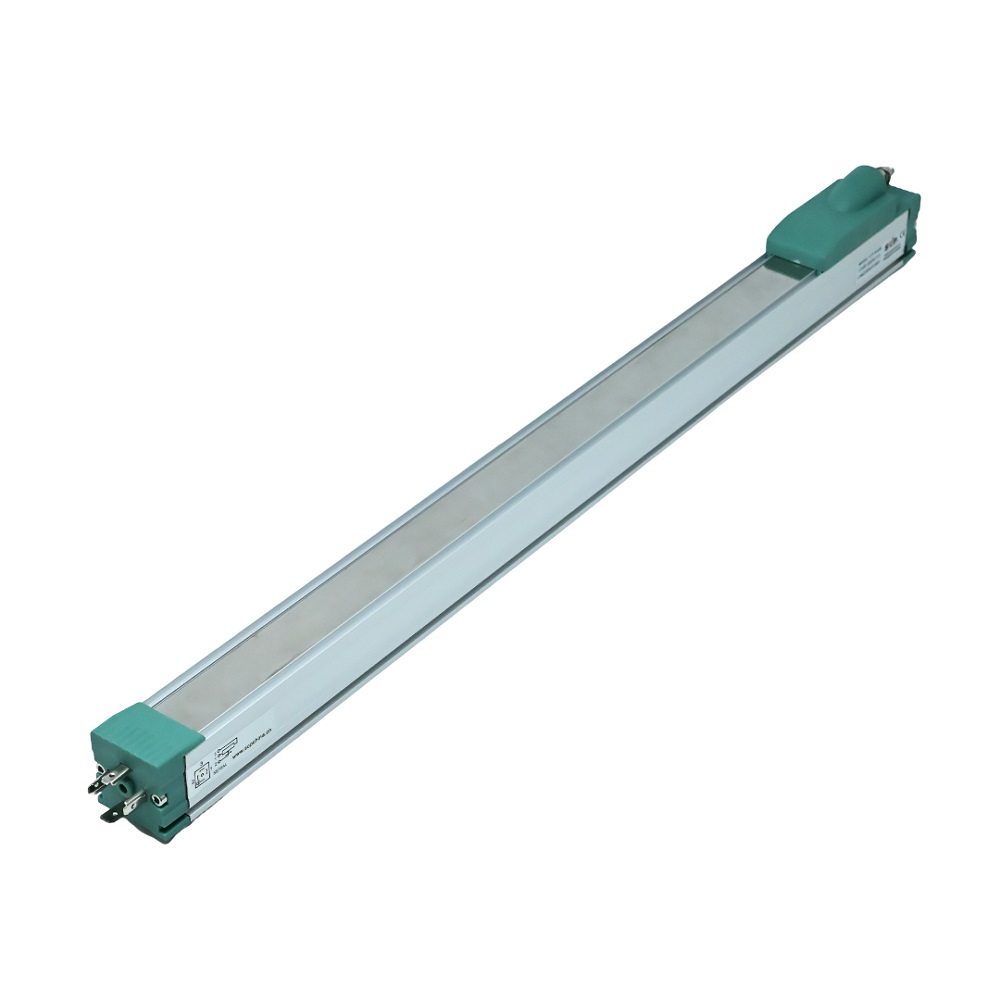

SOP KTF-R-400mm Linear Displacement Sensor, 5KΩ Resistance, ≤28VDC - Flange Mount, Pulling Rod-Type
The SOP KTF-R-400mm is a linear displacement sensor utilizing a 5KΩ resistive potentiometer for precise position feedback over a 400mm stroke. Designed for industrial automation systems, it operates on ≤28VDC and provides a stable analog resistance output suitable for PLCs and motion controllers.
Features
- 400mm stroke length for medium-range linear position measurement.
- 5KΩ resistive potentiometer output ensures stable, drift-free analog signal.
- Rated for ≤28VDC operation with a low 10µA working current.

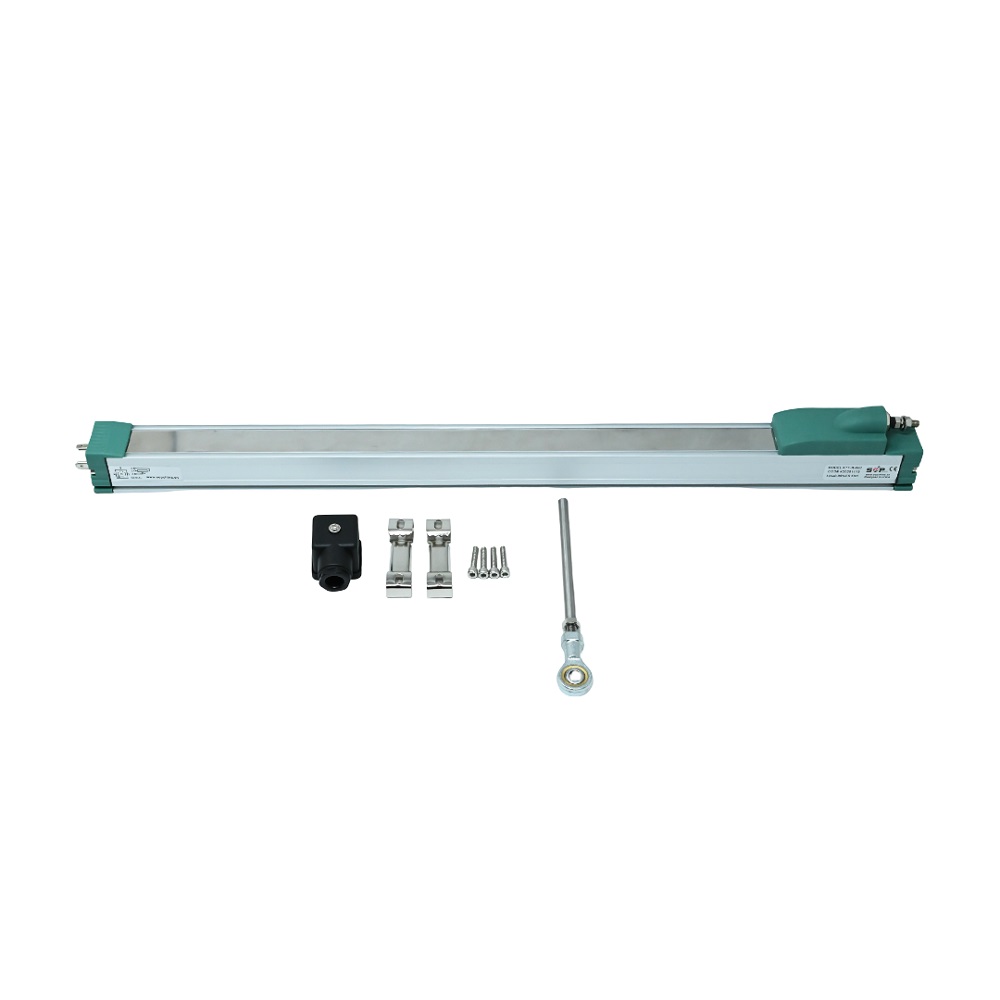

- IP65-rated housing with flange/bracket and pulling rod-type mounting.
- Robust construction for demanding industrial environments.
Out of stock
The SOP KTF-R-400mm linear displacement sensor is a precision electromechanical device based on a resistive potentiometer (pot) sensing principle. As the internal wiper moves along the resistive element in proportion to the attached rod’s displacement, it provides a corresponding change in resistance, delivering a highly linear and reliable analog position signal.
Engineered for durability, the sensor features an IP65-rated enclosure, protecting it from dust ingress and water jets, making it suitable for harsh industrial settings like machine tool feedback and hydraulic cylinder monitoring. Its low-power design and ≤28VDC rating ensure compatibility with standard industrial control voltages and safe, long-term operation.
Additional Information
| Weight | 0.611 kg |
|---|---|
| Dimensions | 54 × 3.2 cm |
