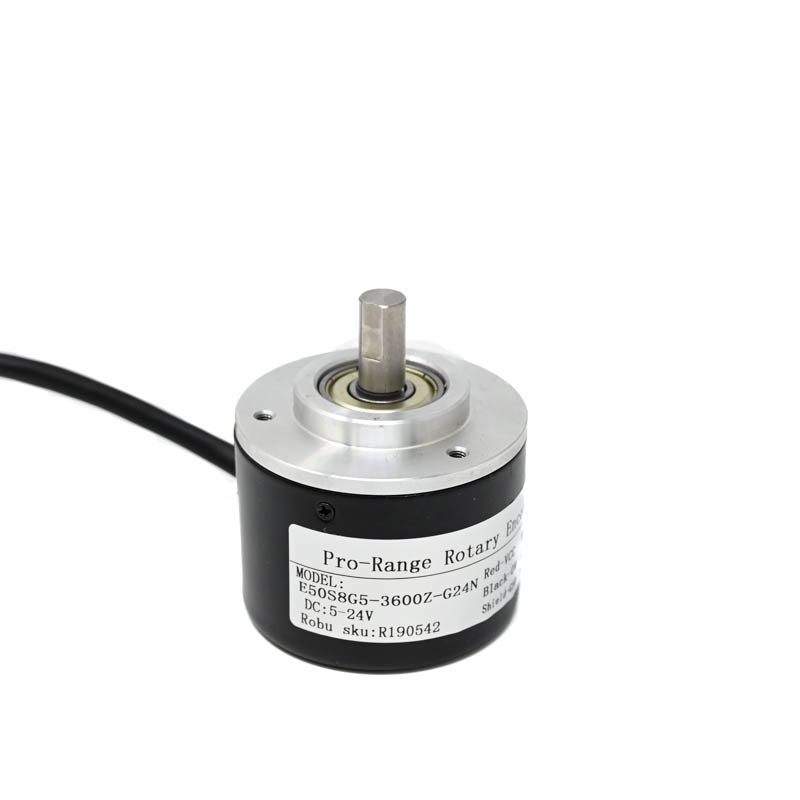

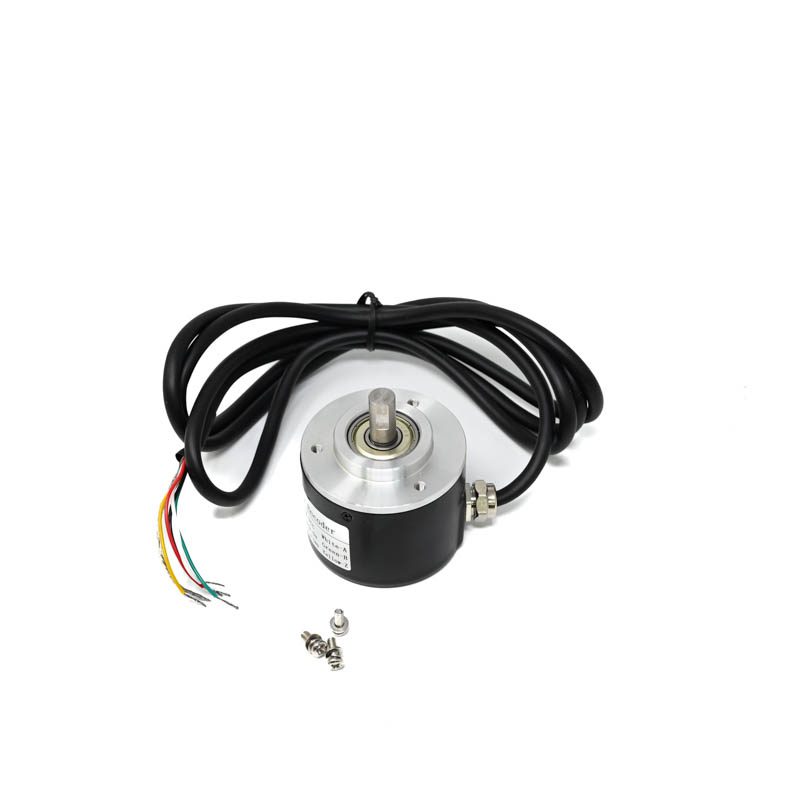

Pro-Range E50S8G5-3600Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 3600 PPR
The Pro-Range E50S8G5-3600Z-G24N is a photoelectric rotary incremental encoder delivering 3600 pulses per revolution (PPR) via ABZ three-channel output. Designed for industrial automation and motion control systems, it operates on a wide 5-24V DC supply for versatile integration with PLCs, servo drives, and microcontroller platforms.
Features
- High-resolution 3600 P/R (Pulses per Revolution) for precise angular position and speed feedback.
- ABZ three-channel output (A, B quadrature and Z index) for reliable direction detection and reference positioning.
- Wide operating voltage range of 5-24V DC ensures compatibility with diverse industrial and embedded control systems.
- Compact 50mm outer diameter (PCB hole diameter) with aluminum housing for robust, space-efficient mounting.
- Photoelectric sensing principle provides high accuracy and repeatability with minimal mechanical wear.
Out of stock
The Pro-Range E50S8G5-3600Z-G24N encoder utilizes a photoelectric sensing mechanism to translate rotary motion into precise digital quadrature signals. Its incremental design outputs A and B phase pulses 90 degrees out of phase, enabling accurate determination of rotation direction and distance, while the Z channel provides a single index pulse per revolution for absolute reference.
Constructed with an aluminum housing, this encoder is built for durability in industrial environments. The wide 5-24V DC input range allows for direct interfacing with a variety of logic levels and industrial power supplies, making it suitable for integration into CNC machinery, robotic joints, conveyor systems, and automated test equipment requiring reliable motion feedback.
Additional Information
| Weight | 0.211 kg |
|---|---|
| Dimensions | 9 × 9 × 7 cm |
