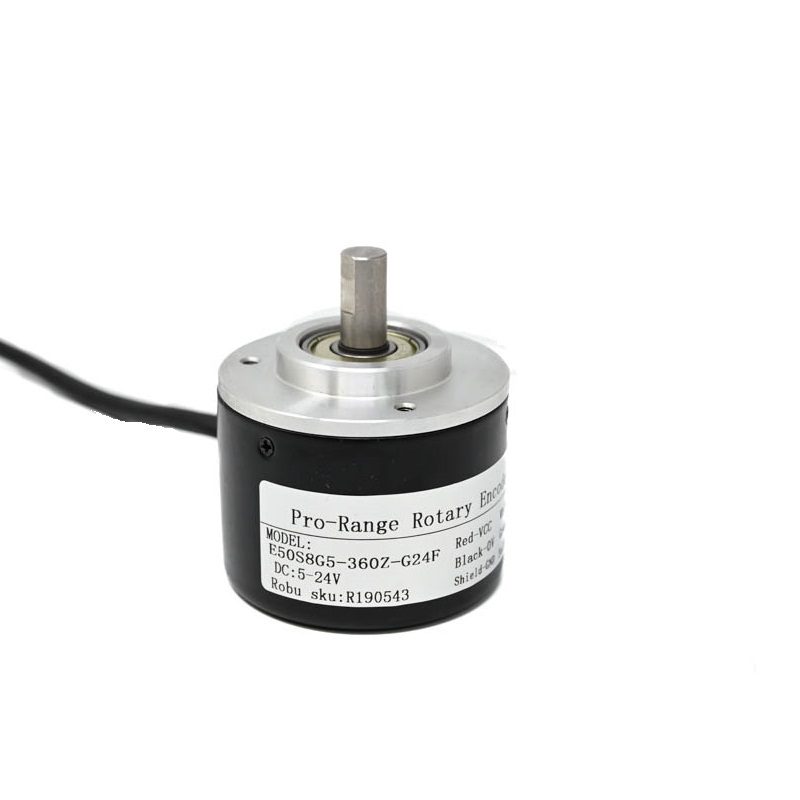

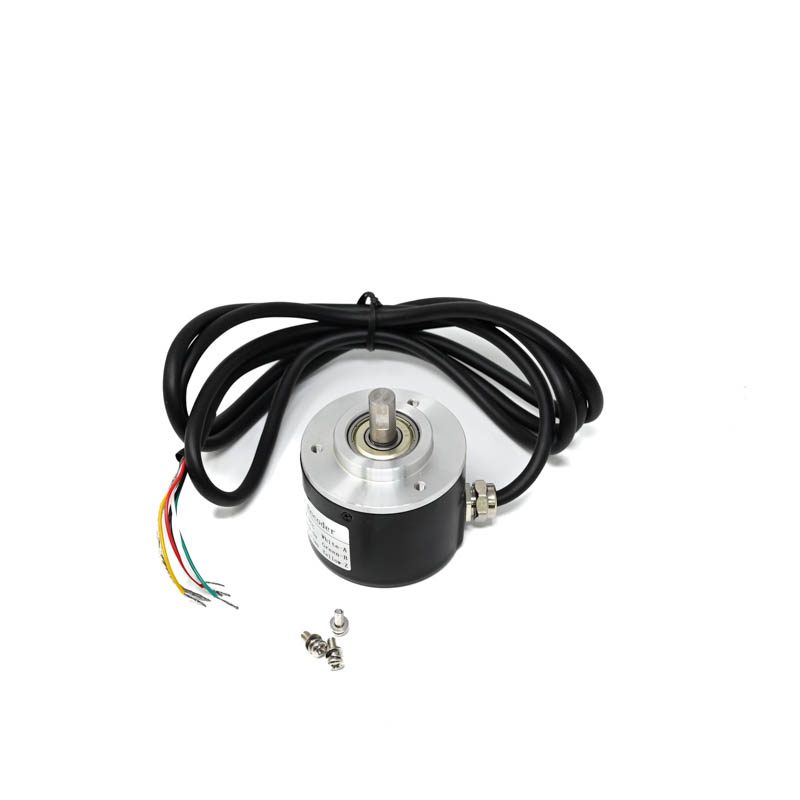

Pro-Range E50S8G5-360Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 360 PPR
The Pro-Range E50S8G5-360Z-G24F is a 50mm diameter rotary incremental encoder delivering 360 pulses per revolution (PPR) via ABZ three-channel photoelectric output. It operates on a wide 5-24V DC supply, making it compatible with industrial PLCs, servo drives, and robotics controllers for precise angular position and speed feedback.
Features
- 360 PPR resolution for precise angular position and speed measurement.
- ABZ three-channel (quadrature) output for enhanced signal reliability and direction detection.
- Wide operating voltage range of 5V to 24V DC for flexible system integration.
- Compact 50mm diameter photoelectric design with robust construction for industrial environments.
- Standard mounting hole pattern for easy mechanical installation into machinery and robotic joints.
Out of stock
The Pro-Range E50S8G5-360Z-G24F is a photoelectric rotary incremental encoder engineered for motion control systems requiring accurate feedback. It utilizes an optical disc and sensor pair to generate 360 discrete pulses per revolution, providing high-resolution data for position, speed, and direction. The ABZ output channels deliver the standard A/B quadrature signals for incremental counting and a Z-index (zero) pulse for homing reference.
Constructed with a durable housing, this encoder is designed to withstand the mechanical stresses of industrial automation and robotics. Its wide 5-24V DC input voltage range ensures compatibility with diverse control electronics, from microcontroller-based projects (Arduino, Raspberry Pi with level shifters) to standard 24V industrial PLCs. The 50mm form factor and standard mounting pattern facilitate straightforward integration into motor shafts and rotating assemblies.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 9 × 9 × 7 cm |
