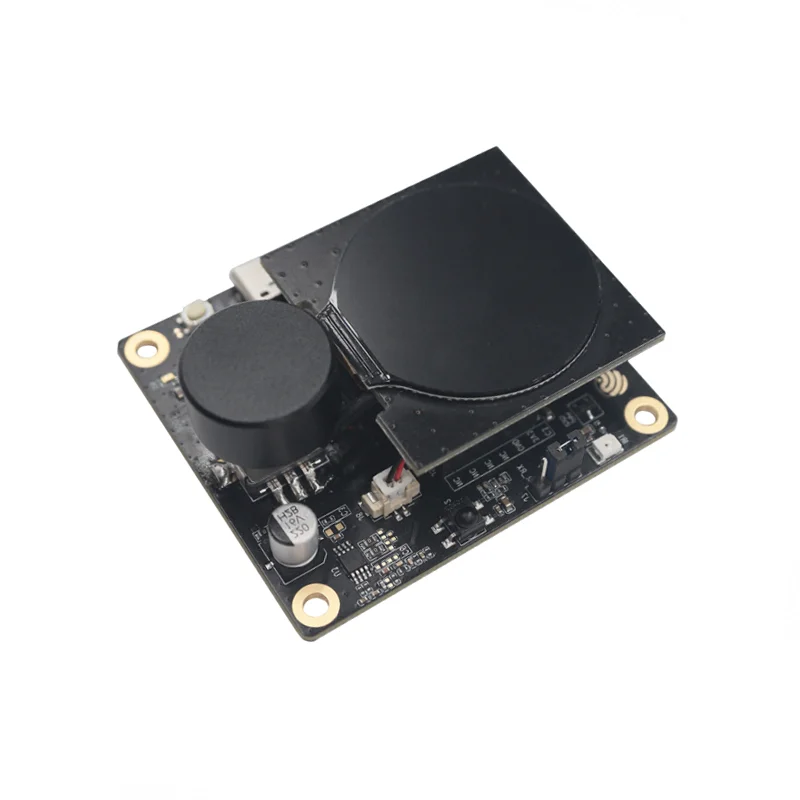

Espressif ESP32-C3-LCDkit Development Board w/ Display & Rotary Encoder

The board is fully supported by Espressif's official ESP-IDF (IoT Development Framework) and the Arduino Core for ESP32. You can develop applications using C/C++ in ESP-IDF for maximum control or use the Arduino IDE for quicker prototyping. The USB Type-C port allows easy flashing using esptool.py. Ensure you select the correct board target (ESP32-C3) and the proper COM port in your development environment.

The board uses standardized SPI and I2C interfaces for displays, compatible with Espressif's range of LCD subboards. You need to physically attach a compatible subboard (which hosts the display) to the main kit's connectors. In your code, initialize the display using the appropriate SPI or I2C driver libraries provided by ESP-IDF or community libraries like TFT_eSPI for Arduino. Check Espressif's documentation for specific subboard pin mappings and initialization sequences.

Yes, the kit includes both an IR transmitter LED and a receiver sensor. You can use the IRremote library (adapted for ESP32) or ESP-IDF's RMT peripheral driver to receive, decode, and transmit infrared signals. This allows you to clone existing remote controls or create custom IR commands to control appliances like TVs, AC units, or DIY projects, integrating remote control into your IoT application.
