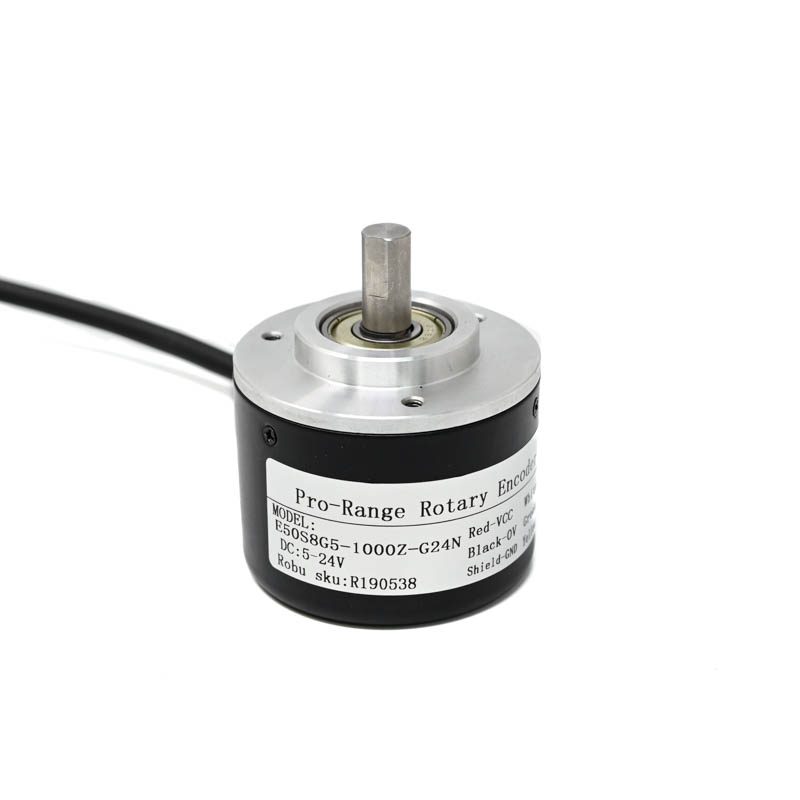

Pro-Range E50S8G5-1000Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR

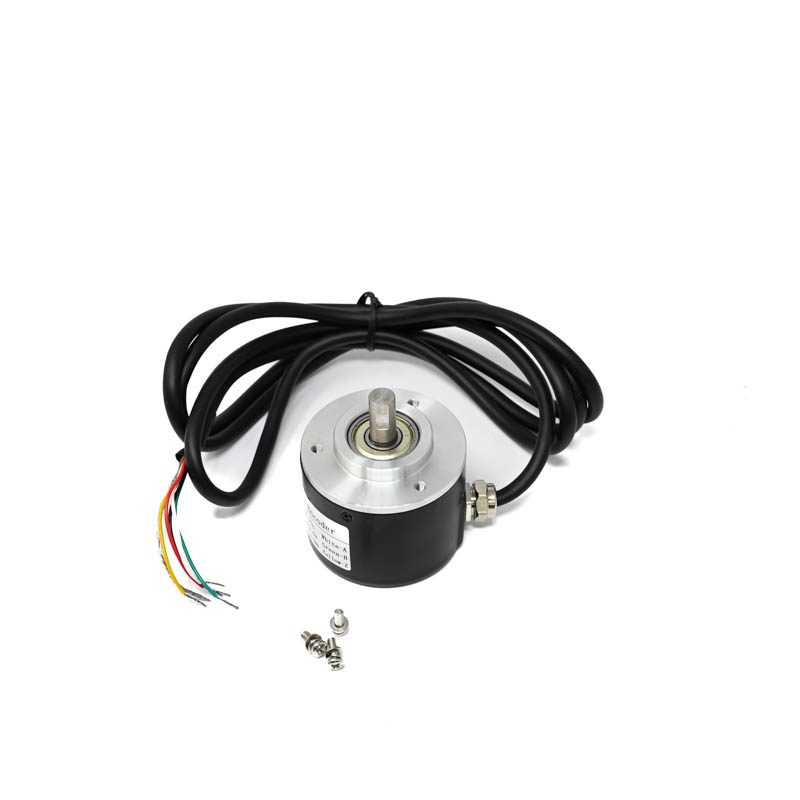

Pro-Range E50S8G5-1000Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR - Image 2
SKU: SENS-2631
📋 GST Invoice Available

Pro-Range E50S8G5-1000Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR

₹1,439.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E50S8G5-1000Z-G24N is a 50mm diameter rotary incremental encoder delivering 1000 PPR resolution via ABZ three-channel photoelectric output. It operates from a wide 5-24V DC range, making it compatible with industrial PLCs, motor drives, and motion control systems requiring precise angular position and speed feedback.

Features

  • High-resolution 1000 pulses per revolution (PPR) for accurate angular measurement.
  • ABZ three-channel quadrature output (A, B, Z index) for reliable direction and position sensing.
  • Wide operating voltage range of 5V to 24V DC for flexible system integration.
  • Compact 50mm outer diameter housing with a 6mm x 15mm shaft for easy mechanical mounting.
  • Photoelectric sensing principle ensures stable, contactless operation and long-term reliability.

Out of stock

Description

The Pro-Range E50S8G5-1000Z-G24N encoder utilizes a photoelectric incremental sensing mechanism. A light source and photodetector array read a patterned disk, generating precise square-wave pulses on the A and B channels with a 90-degree phase shift for direction detection, plus a Z-channel index pulse per revolution for absolute reference.

Built for industrial environments, its robust construction supports reliable operation in applications requiring consistent feedback. The wide 5-24V DC input range ensures compatibility with diverse control systems, from microcontroller-based projects (Arduino, Raspberry Pi) to standard 24V industrial automation panels.

Key Features

  • 1000 PPR resolution provides fine granularity for precise speed and position control.
  • Three-channel ABZ output (quadrature A/B with index Z) enables comprehensive motion analysis.
  • Photoelectric (optical) sensing technology offers high accuracy and non-contact operation.
  • Broad 5V to 24V DC operating voltage accommodates both logic-level and industrial power supplies.
  • Compact 50mm diameter form factor with a 38mm PCB mounting hole pattern for straightforward installation.
  • Durable mechanical design with a 6mm diameter, 15mm long shaft for secure coupling.
  • High-value build from a trusted manufacturer (Pro-Range) ensures consistent performance.

Applications

  • Precision speed and position feedback in CNC spindle drives and servo motors.
  • Angular measurement and closed-loop control in industrial robotics and automated conveyor systems.
  • RPM monitoring and indexing in packaging machinery, textile equipment, and printing presses.
  • Motion control and navigation feedback in antenna positioning systems and telescope mounts.
  • Retrofit upgrades for manual machinery requiring digital position readout and automation.

Technical Specifications

Manufacturer Part NumberE50S8G5-1000Z-G24N
Encoder TypeRotary Incremental
Sensing PrinciplePhotoelectric (Optical)
Resolution (PPR)1000 Pulses Per Revolution
Output Channels3 (ABZ Quadrature with Index)
Operating Voltage5V to 24V DC
Outer Diameter50 mm
Shaft Dimensions6 mm Diameter x 15 mm Length
Mounting Hole Diameter (PCB)38 mm
BrandPro-Range

Frequently Asked Questions

What is the operating voltage range for this Pro-Range encoder?

The encoder supports a wide DC input range from 5V to 24V. This flexibility allows it to interface directly with 5V/3.3V microcontroller logic (Arduino, Raspberry Pi) as well as standard 12V or 24V industrial power supplies commonly used in PLC and motor drive systems.

How do I interpret the ABZ three-channel output signals?

The A and B channels provide two square-wave signals offset by 90 degrees (in quadrature). The phase relationship indicates rotation direction, while pulse counting determines position and speed. The Z channel provides a single index pulse per full revolution, serving as an absolute reference point for homing or multi-turn tracking.

What is the physical mounting specification for this 50mm encoder?

The encoder housing has an outer diameter of 50mm. It is designed for panel or bracket mounting via a 38mm diameter PCB mounting hole pattern. The drive shaft is 6mm in diameter and extends 15mm from the housing, requiring a compatible coupling to connect to your motor or rotating assembly.

Can this encoder be used for speed control in a DC motor application?

Yes, the 1000 PPR resolution provides high-frequency feedback suitable for precise speed regulation and closed-loop control of DC motors, BLDC motors, or servo systems. The ABZ signals can be processed by dedicated encoder counters, microcontroller timers, or PLC high-speed inputs to calculate RPM and adjust drive output accordingly.

Package Includes

  • 1 x Pro-Range E50S8G5-1000Z-G24N Rotary Incremental Encoder

Additional Information

Weight 0.213 kg
Dimensions 8.5 × 8.5 × 6.5 cm
