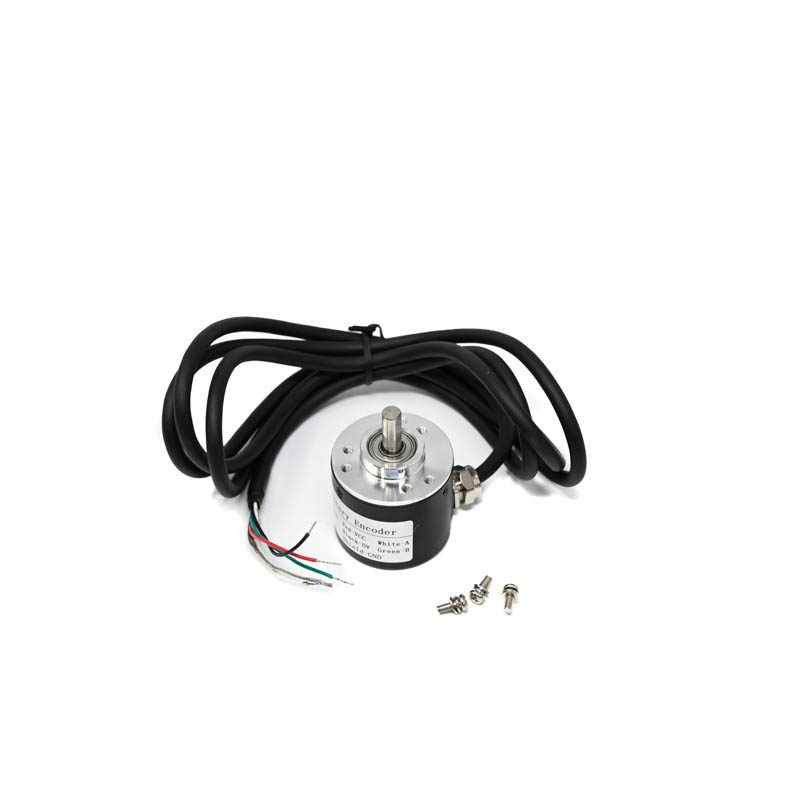

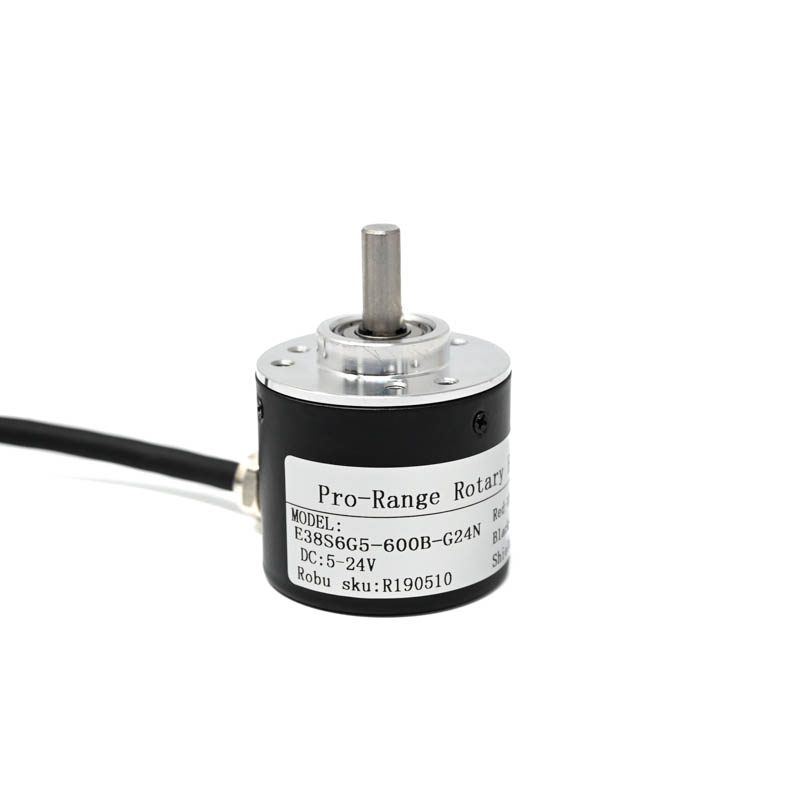

Pro-Range E38S6G5-600B-G24N Rotary Incremental Encoder - 38mm Photoelectric, AB 2 Channels, 600 PPR
The Pro-Range E38S6G5-600B-G24N is a 38mm diameter rotary incremental encoder delivering 600 pulses per revolution (PPR) via photoelectric sensing. It provides AB quadrature output for precise position and direction feedback, designed for integration into industrial automation, CNC machinery, and servo motor systems.
Features
- 600 PPR resolution for accurate angular position feedback.
- Compact 38mm diameter photoelectric design for space-constrained installations.
- AB 2-channel quadrature output enables precise direction sensing.
- Rated for high-speed operation up to 6000 RPM.
- Robust construction suitable for demanding industrial environments.
Out of stock
The E38S6G5-600B-G24N encoder utilizes a photoelectric sensing principle, where an internal LED light source and photodetector read a patterned disk to generate precise digital pulses. This method ensures high signal integrity and immunity to electrical noise compared to magnetic sensing alternatives.
Its quadrature output (channels A and B) provides two square wave signals 90 degrees out of phase, allowing connected controllers to determine both rotational position and direction. The encoder’s durable housing and sealed design protect the internal optics from dust and contaminants, supporting reliable operation in industrial settings such as factory automation and motion control systems.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
