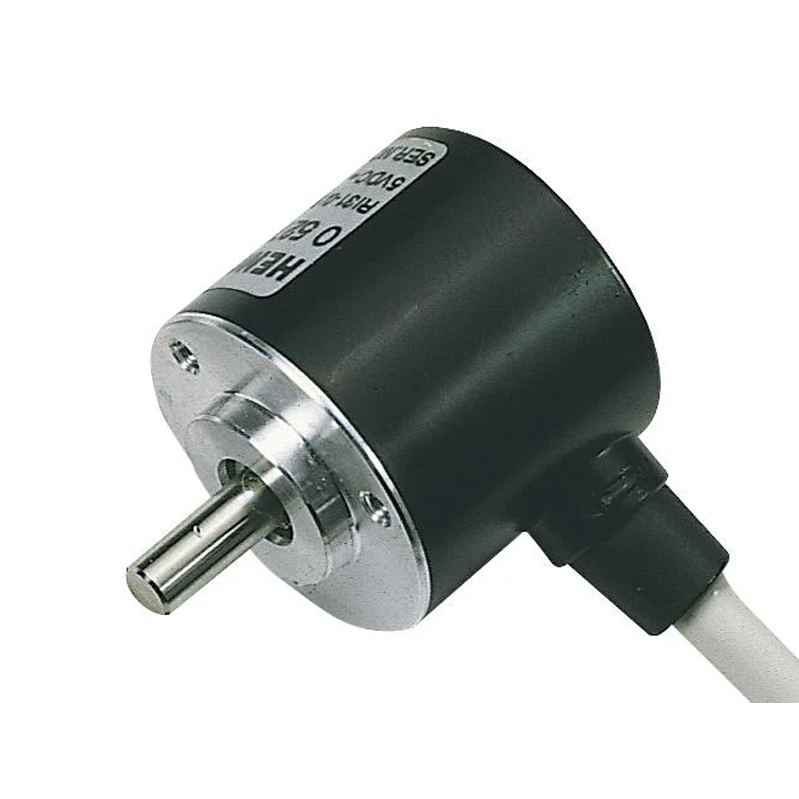

Hengstler RI32-0/1000ER.14KB Rotary Encoder, Optical, Incremental, 1000 PPR, Horizontal, Without Push Switch
The Hengstler RI32-0/1000ER.14KB is a compact, high-precision incremental optical rotary encoder delivering 1000 pulses per revolution (PPR) for accurate position and speed feedback in industrial automation, laboratory equipment, and compact machinery.
Features
- High-resolution 1000 PPR incremental optical encoder for precise motion control.
- Durable ball bearing construction ensures long operational life and smooth, low-torque rotation.
- Push-pull output with short-circuit protection for robust signal integrity in industrial environments.
- Compact round flange design with 5mm D-type shaft for easy integration into space-constrained applications.
- Wide 10-30V DC supply voltage range and IP40/IP50 protection rating for versatile use.
Out of stock
The Hengstler RI32-0/1000ER.14KB utilizes an optical incremental sensing principle to generate 1000 precise square wave pulses per revolution. This high-resolution output is ideal for closed-loop control systems requiring accurate angular position and rotational speed data. The encoder’s internal ball bearing design minimizes mechanical wear, supporting a maximum rotational speed of 6000 RPM while maintaining signal stability.
Engineered for industrial durability, the encoder features a push-pull output stage that is protected against short circuits, ensuring reliable communication with PLCs, motor drives, and data acquisition systems. Its compact 32mm diameter housing, IP40/IP50 ingress protection, and operating temperature range of -20°C to +70°C make it suitable for integration into small appliances, fitness equipment, crimping machines, and other automated systems where reliable motion feedback is critical.
Additional Information
| Weight | 0.18 kg |
|---|---|
| Dimensions | 3.2 × 3.2 cm |
