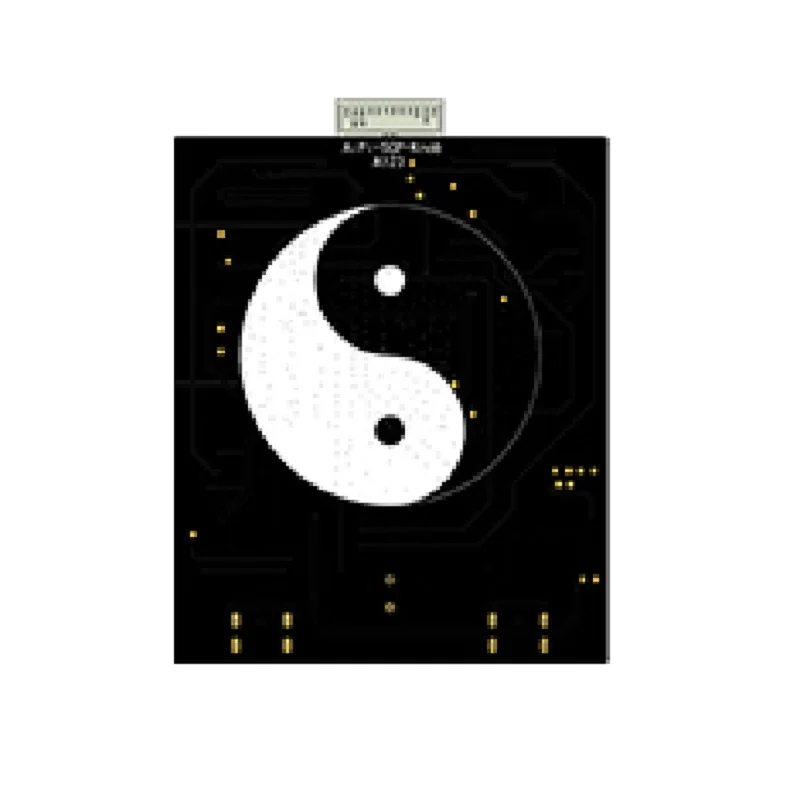

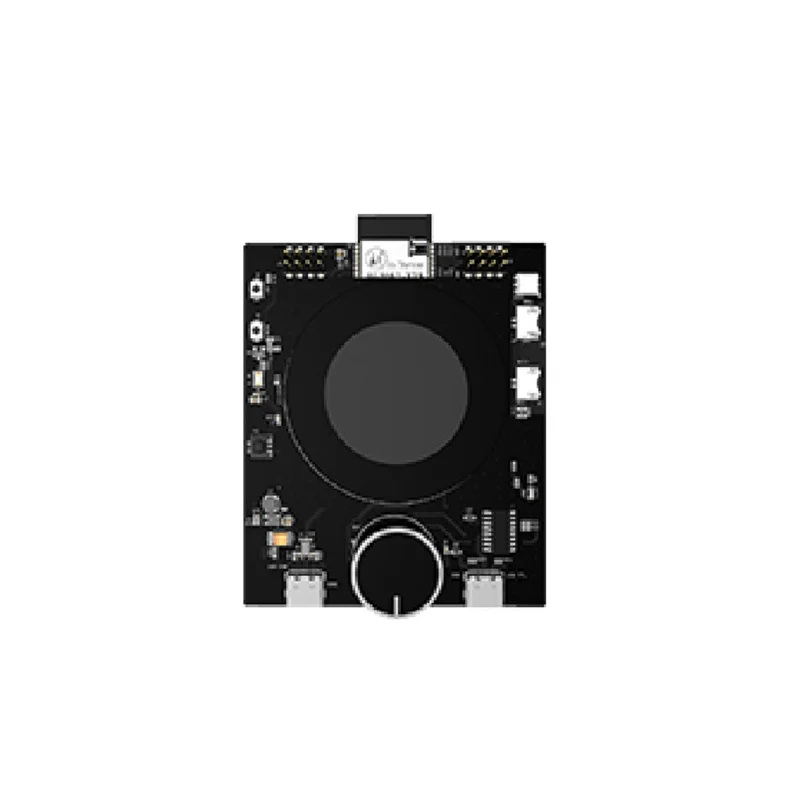

AI-Thinker AiPi-Knob V1.0 Rotary Encoder Board w/ 1.28-Inch Display
The AI-Thinker AiPi-Knob V1.0 is a versatile rotary encoder driver board featuring an integrated 1.28-inch circular display and powered by the Ai-M61-32S module. It offers onboard audio, infrared capabilities, and multiple interfaces, making it ideal for interactive control and display applications with pre-burned demo firmware.
Features
- Integrates Ai-M61-32S module with robust processing capabilities.
- Features a crisp 1.28-inch circular display for intuitive visual feedback.
- Onboard rotary encoder, RGB light, built-in audio, and IR transceiver for diverse control.
- Rich peripheral set including DVP, USB2.0, Ethernet, SPI, UART, I2C, and GPIOs.
- Pre-burned firmware with demonstration interfaces for immediate application.
Out of stock
The AI-Thinker AiPi-Knob V1.0 is an innovative rotary encoder driver board designed for interactive control and display applications. Developed by the AI-Thinker open-source team, this compact board integrates a 1.28-inch circular screen, a precise rotary encoder, an RGB LED, and built-in audio. Further enhancing its versatility, the AiPi-Knob includes both infrared emission and reception capabilities, along with a suite of essential interfaces for robust system integration.
Powered by the Ai-M61-32S module, the AiPi-Knob provides a wealth of peripheral connectivity options, including DVP, MJPEG, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and numerous GPIOs. This extensive I/O allows for flexible expansion and interfacing with various sensors, actuators, and communication modules. The board comes pre-flashed with demonstration firmware, showcasing applications like washing machine control, RGB light management, TV remote functions, and air conditioning interfaces, facilitating rapid prototyping and development.
Additional Information
| Weight | 0.051 kg |
|---|---|
| Dimensions | 8.8 × 7.2 cm |
