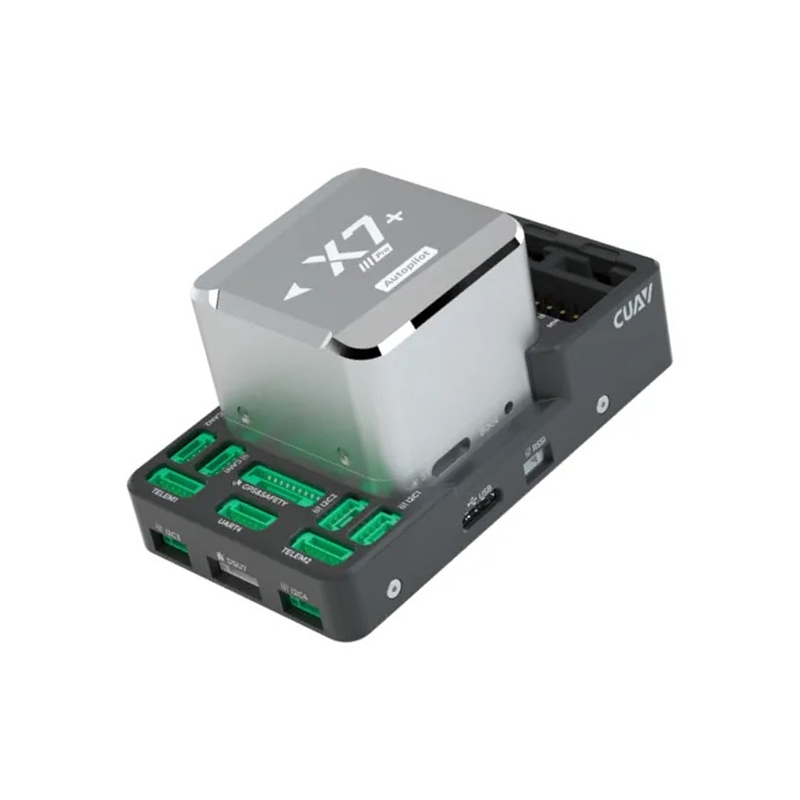

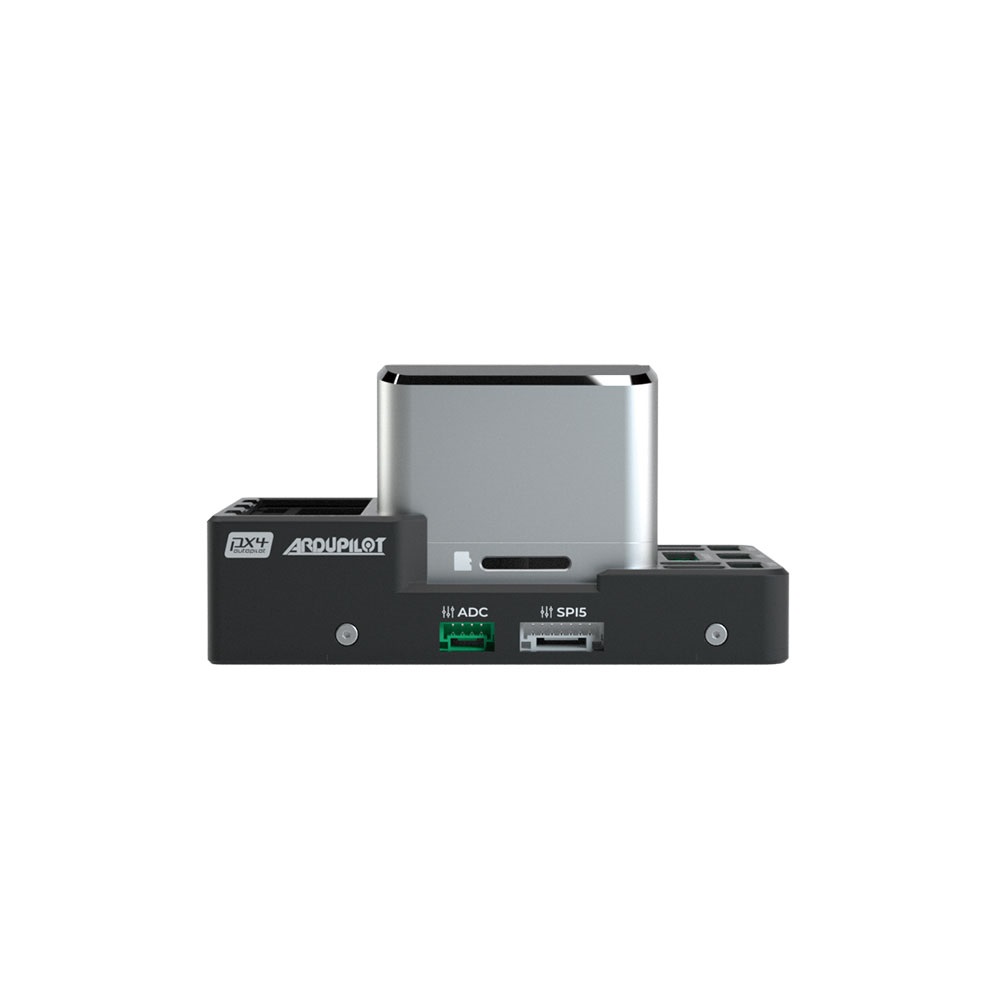

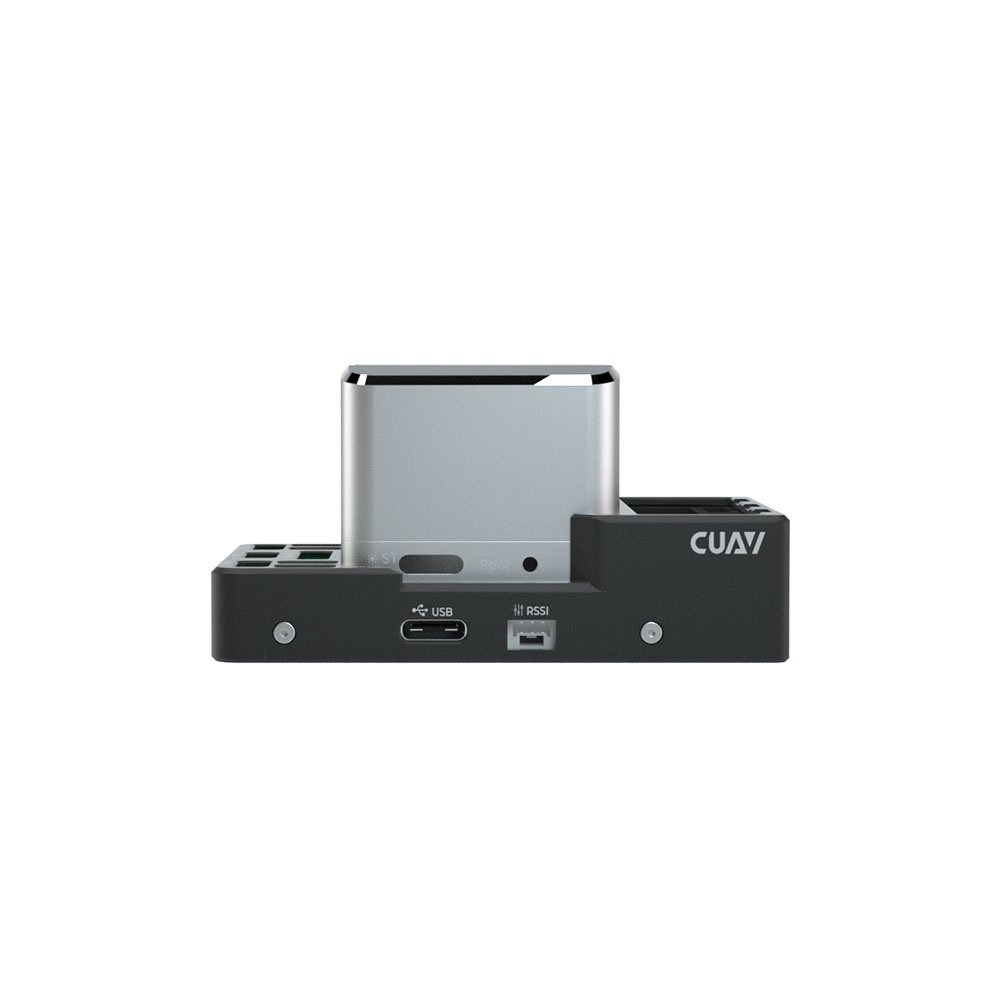

CUAV X7+ Pro Flight Controller | Autopilot for PX4 APM Drone Quadcopter Pixhawk
The CUAV X7+ Pro is an advanced autopilot flight controller built around the high-performance STM32H743 processor, featuring triple-redundant IMUs with industrial-grade ADIS16470 and RM3100 sensors for exceptional stability and reliability in demanding UAV applications. It is fully compatible with ArduPilot and PX4 firmware, supporting a wide range of multirotor and fixed-wing platforms.
Features
- High-performance STM32H743 processor operating at 480MHz with 2MB Flash and 1MB RAM.
- Triple-redundant IMU system featuring industrial-grade ADIS16470, ICM-42688-P, and ICM-20689 sensors with intelligent failover.
- Integrated RM3100 industrial magnetometer and MS5611 barometer for precise navigation.
- Supports 14 PWM outputs (12 with Dshot protocol) and multiple RC inputs (SBUS, CPPM, DSM).
- Designed with CUAV’s patented shock absorption and temperature compensation system for optimal sensor performance.
Out of stock
The CUAV X7+ Pro Flight Controller represents a significant advancement in open-source autopilot technology, engineered for professional and commercial drone applications requiring maximum reliability. Its core is the powerful STM32H743 MCU, which provides the computational headroom for complex autonomous flight algorithms and high-speed data logging via USB_HS. The board’s standout feature is its sensor suite, which integrates a high-end ADIS16470 MEMS IMU—known for its ultra-low drift—alongside two additional IMUs and an RM3100 magnetometer, creating a robust, fault-tolerant inertial measurement system.
Built with a modular design philosophy, the X7+ Pro supports custom carrier boards and features dedicated ports for Uavcan battery telemetry and CAN bus peripherals. Its construction includes active IMU heating and a sophisticated damping system to maintain sensor accuracy across a wide operational temperature range from -20°C to 85°C. This flight controller is engineered to serve as the central brain for high-end Pixhawk-standard drones, from heavy-lift cinematography platforms to precision agricultural and mapping UAVs.
Additional Information
| Weight | 0.105 kg |
|---|---|
| Dimensions | 7.7 × 4.55 × 3.9 cm |
