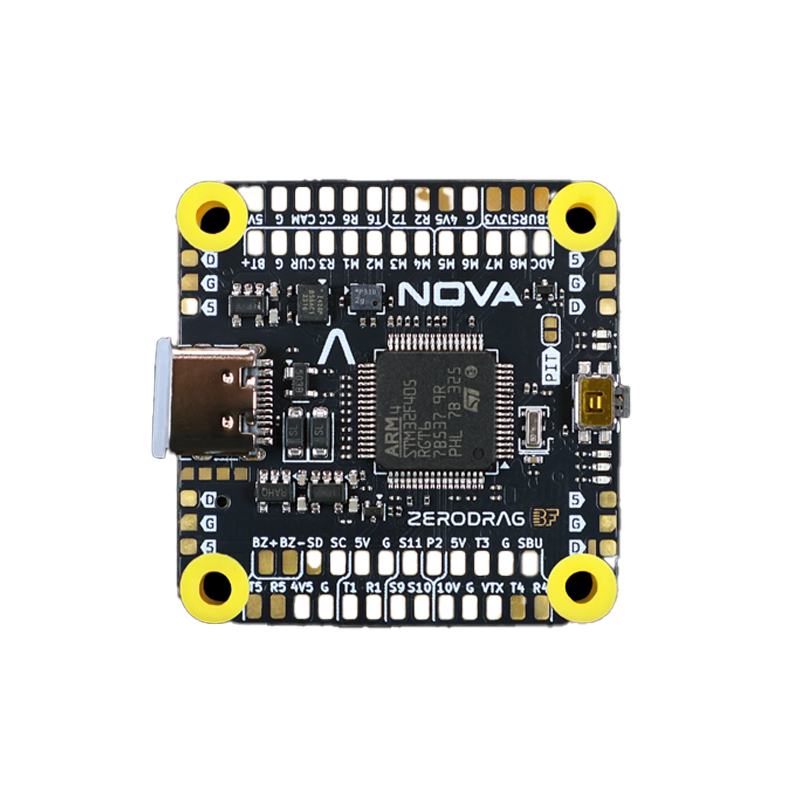

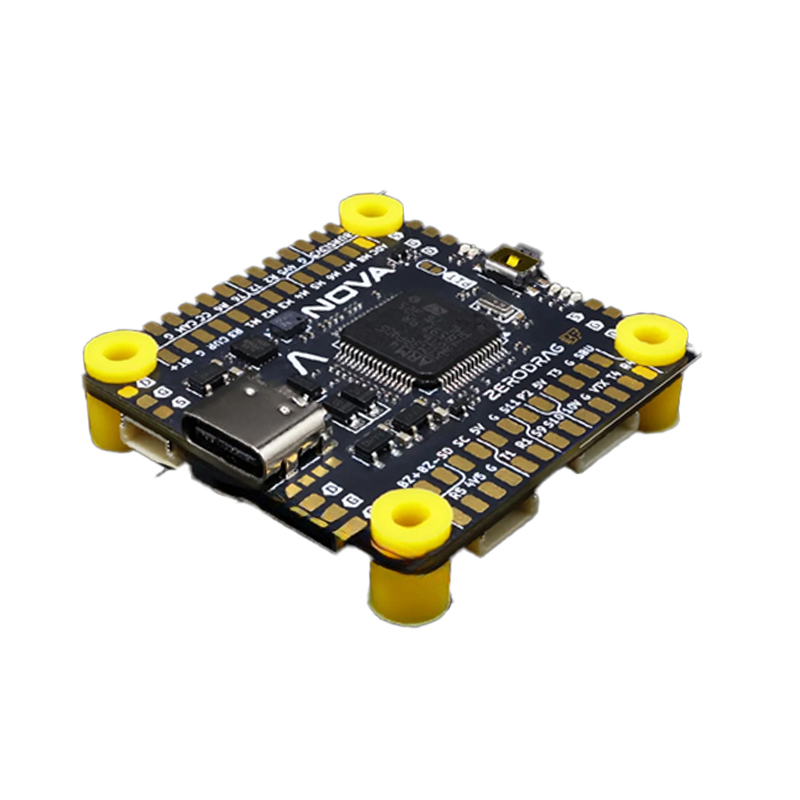

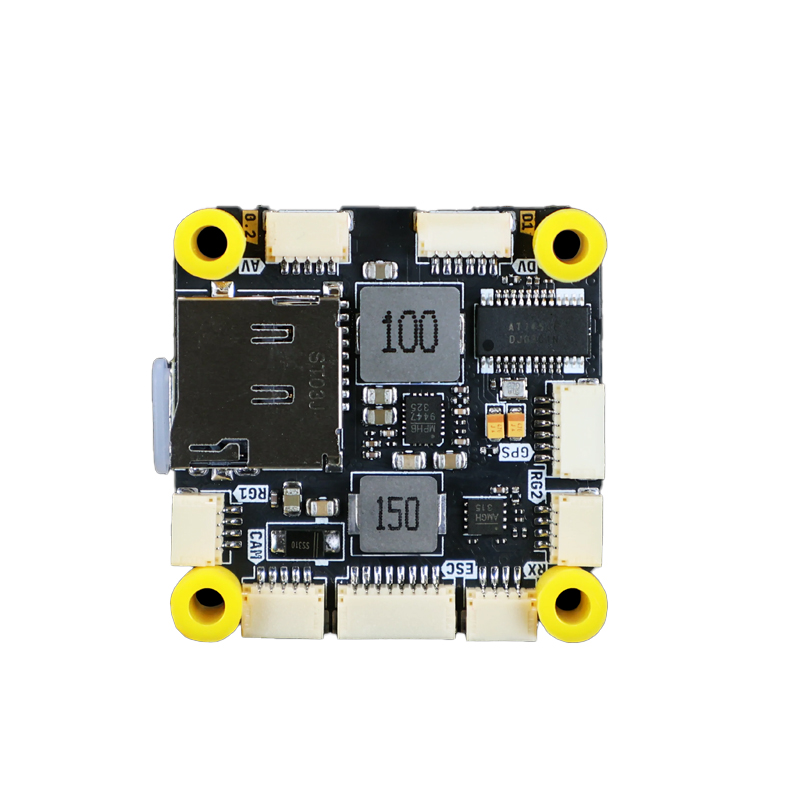

Zerodrag Nova F4 Flight Controller
The Zerodrag Nova F4 Flight Controller is built around the STM32F405 MCU and features an ICM42688P gyro with DPS310 barometer for precise flight control, supporting Betaflight, iNav, and ArduPilot firmware for versatile UAV applications from 2S to 6S LiPo.
Features
- High-performance STM32F405 MCU with ICM42688P gyro & DPS310 barometer
- Supports Betaflight, iNav, and ArduPilot firmware for versatile flight modes
- Dual BEC outputs: 5V 3A and 10V 5A for reliable peripheral power
- Integrated MicroSD slot for BlackBox flight data logging
- Compact 30.5×30.5mm mounting with USB Type-C and 6 UARTs
Out of stock
The Zerodrag Nova F4 Flight Controller is engineered for demanding UAV pilots requiring a robust and flexible flight management platform. Its core is the STM32F405 microcontroller, paired with the advanced ICM42688P gyroscope and Infineon Technologies DPS310 barometer, delivering exceptional stability and accurate altitude data for both acrobatic and autonomous flight profiles.
Designed for seamless integration, the board features a comprehensive I/O suite including six UARTs, dedicated I2C pads, and support for up to eight ESCs via its motor pads. The dual switching BECs provide clean, high-current power for FPV systems and other accessories, while the on-board AT7456E OSD chip allows for real-time telemetry overlay without external modules.
Additional Information
| Weight | 0.0093 kg |
|---|---|
| Dimensions | 3.85 × 3.7 cm |
