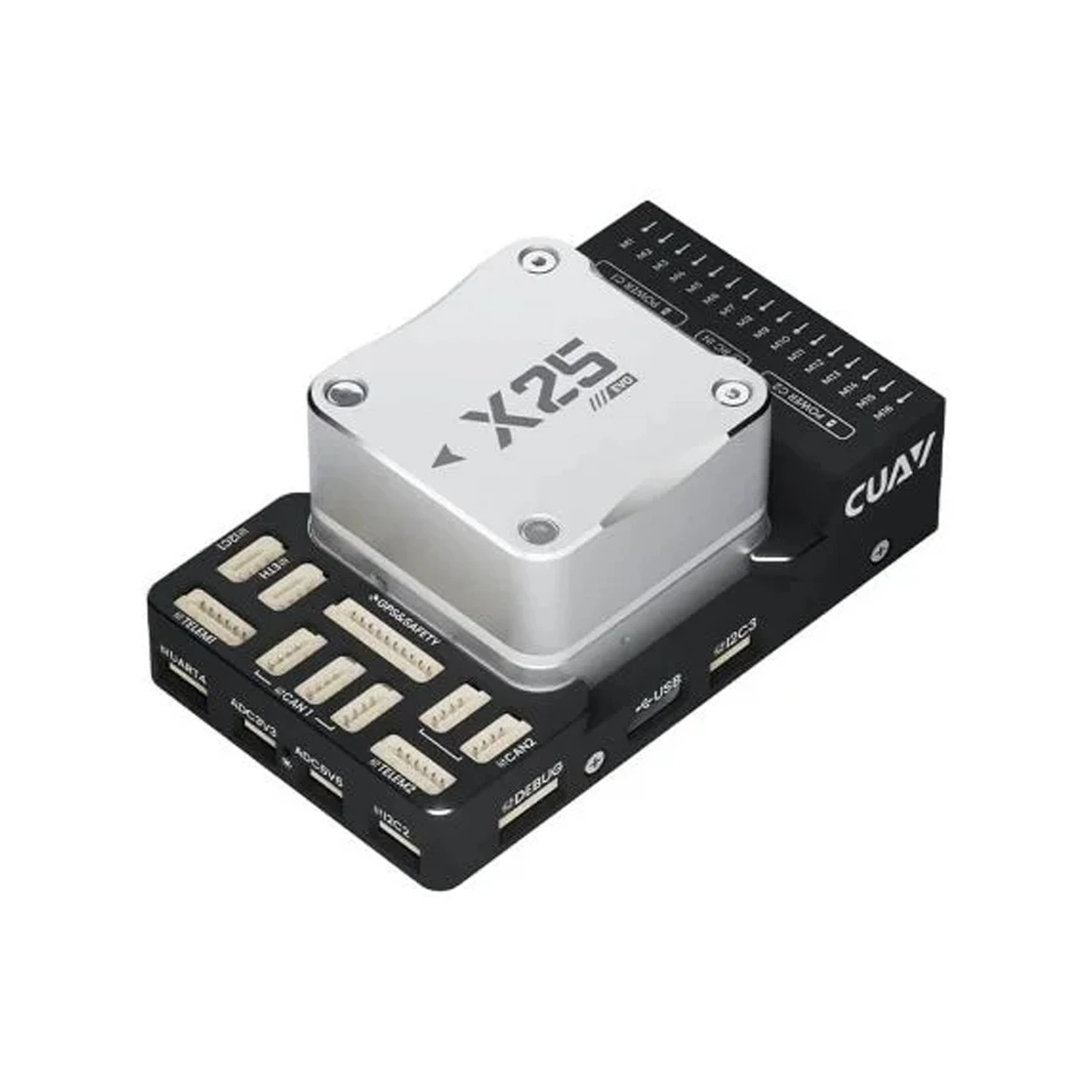

CUAV X25 EVO Pixhawk Autopilot Flight Controller
The CUAV X25 EVO is a high-performance industrial-grade Pixhawk autopilot flight controller featuring a powerful STM32H7 processor, triple-redundant IMUs, and a wide 10V–18V DC input. It is fully compatible with ArduPilot and PX4 firmware for advanced autonomous UAV applications.
Features
- High-performance STM32H7 Cortex-M7 processor running at 480MHz for complex flight control algorithms.
- Triple-redundant IIM-42653/42652 IMUs and dual barometers with automatic failover for maximum reliability.
- Wide 10V–18V DC power input range, supporting high-voltage operation for heavy-lift and industrial drones.
- Detachable CORE module design simplifies maintenance, upgrades, and system integration.
- Extensive connectivity with 16 PWM outputs, 5 CAN bus interfaces, dual GPS, and dual telemetry ports.
Out of stock
The CUAV X25 EVO represents a significant evolution in industrial flight control hardware. Its architecture is built around a powerful STM32H7 Cortex-M7 processor, providing the computational headroom required for demanding autonomous missions, complex sensor fusion, and real-time navigation tasks. The board’s electrical design prioritizes robustness, with a wide input voltage range and dedicated power management via the included PMU 2 Lite module.
Structural and sensor integrity is paramount. The X25 EVO employs a 4th-generation shock absorption Matrix with shaped silicone mounting lugs to isolate the triple IMUs and dual barometers from frame vibrations. A dedicated dual-temperature compensation system ensures sensor accuracy remains consistent across the full -20°C to +85°C operating temperature range, making it suitable for deployment in harsh environmental conditions.
Additional Information
| Weight | 0.354 kg |
|---|---|
| Dimensions | 15 × 15 × 5 cm |
