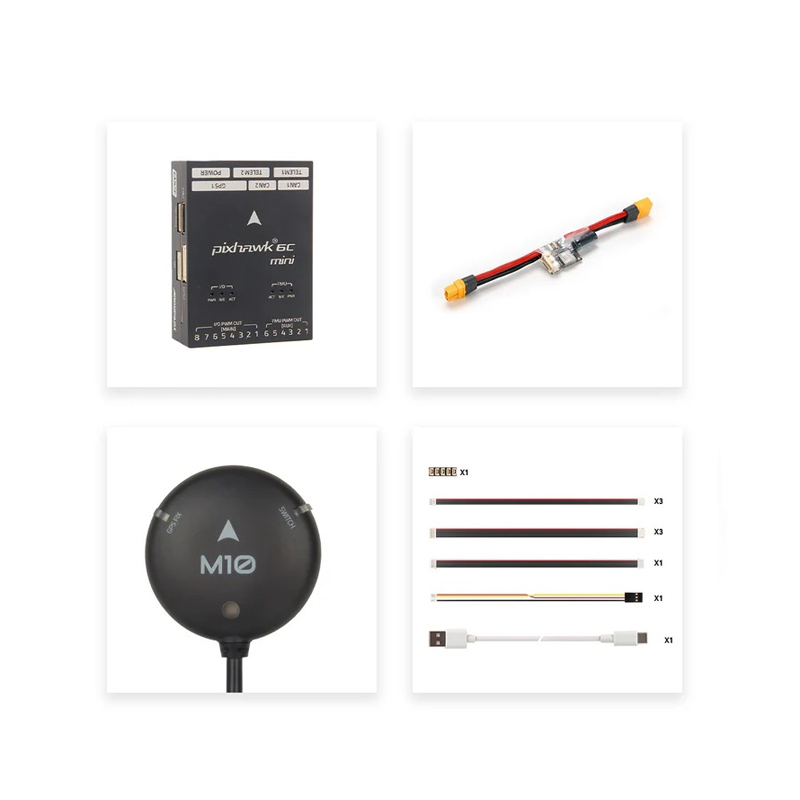

Holybro Pixhawk 6C Mini and PM02-12S and M10 GPS Combo

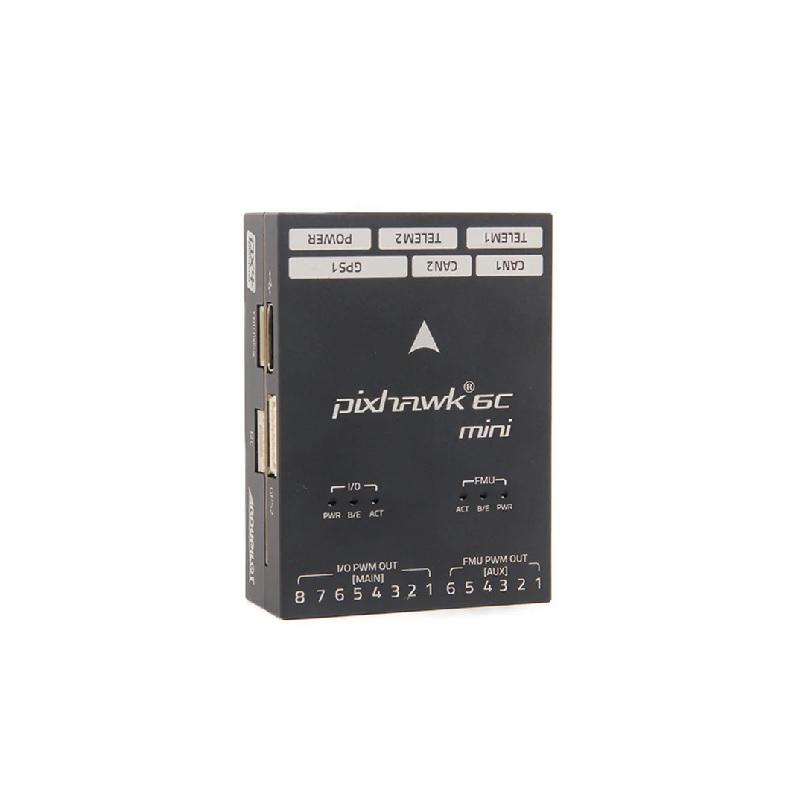

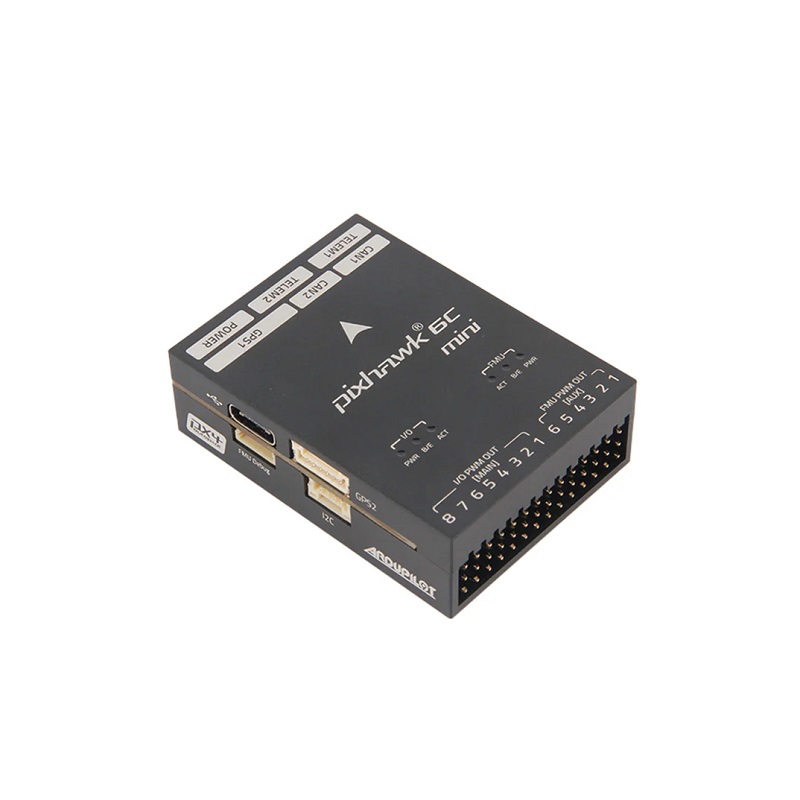

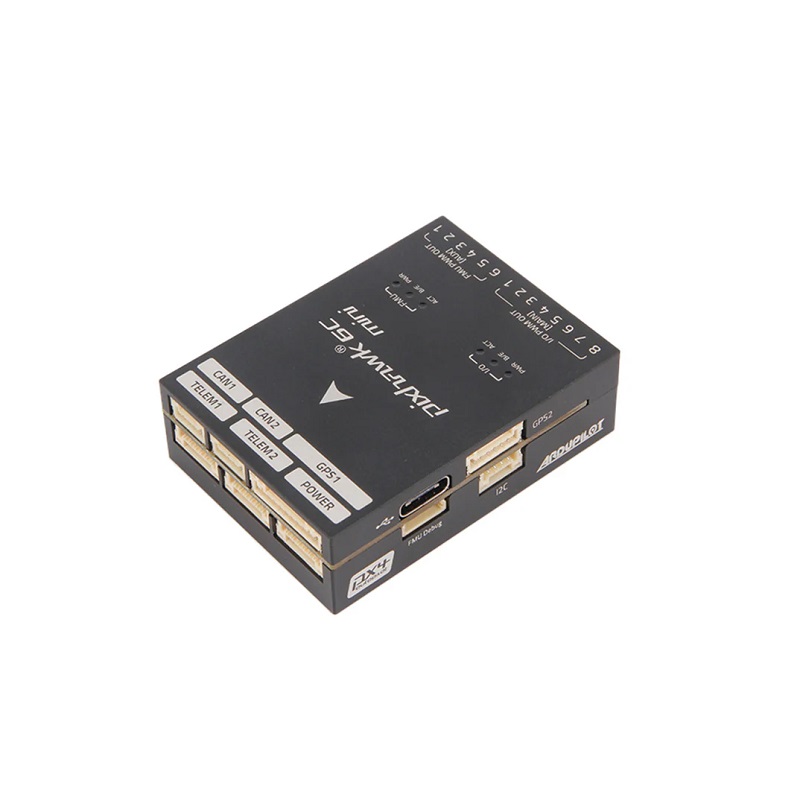

The Holybro Pixhawk 6C Mini is a compact, high-performance flight controller based on the FMUv6C Open Standard, paired with a PM02-12S Power Module and M10 GPS. Featuring an STM32H743 processor and redundant Bosch/InvenSense sensors, it delivers reliable autonomous control for academic, research, and commercial UAV applications.
Features
- STM32H743 Arm Cortex-M7 processor (480 MHz) with 2MB Flash and 1MB SRAM for complex algorithms.
- Redundant IMU suite featuring ICM-42688-P and BMI055 accelerometers/gyros with vibration isolation.
- Integrated PM02-12S Power Module supports up to 12S LiPo input with 6V regulated output.
- Compact form factor with built-in PWM header for simplified wiring in mini UAVs and rovers.
- Full ArduPilot and PX4 firmware compatibility for advanced autonomous navigation and mission planning.
Out of stock
The Pixhawk 6C Mini is engineered for demanding autonomous vehicle applications where space, reliability, and computational power are critical. Its core is the STM32H743 microprocessor, which provides the processing headroom required for advanced navigation, computer vision, and real-time control algorithms. The flight controller’s sensor fusion is handled by a redundant array of low-noise IMUs, a high-precision barometer, and a magnetometer, all mounted with vibration-damping to ensure stable flight in dynamic environments.

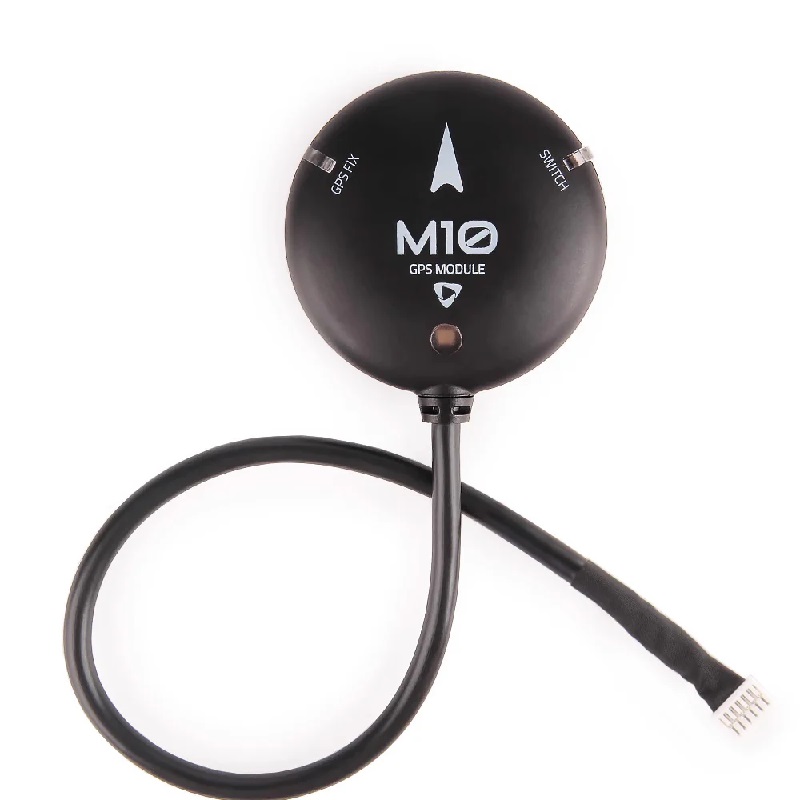

This combo package includes the essential peripherals for a complete autopilot system: the PM02-12S Power Module handles high-voltage battery inputs and provides clean, regulated power, while the M10 GPS module delivers centimeter-level positioning accuracy for precise navigation. The integrated PWM header simplifies connection to servos and ESCs, making the system ideal for compact fixed-wing, VTOL, and multirotor platforms used in research, education, and commercial payload delivery.
Additional Information
| Weight | 0.241 kg |
|---|---|
| Dimensions | 10 × 15 × 7 cm |
