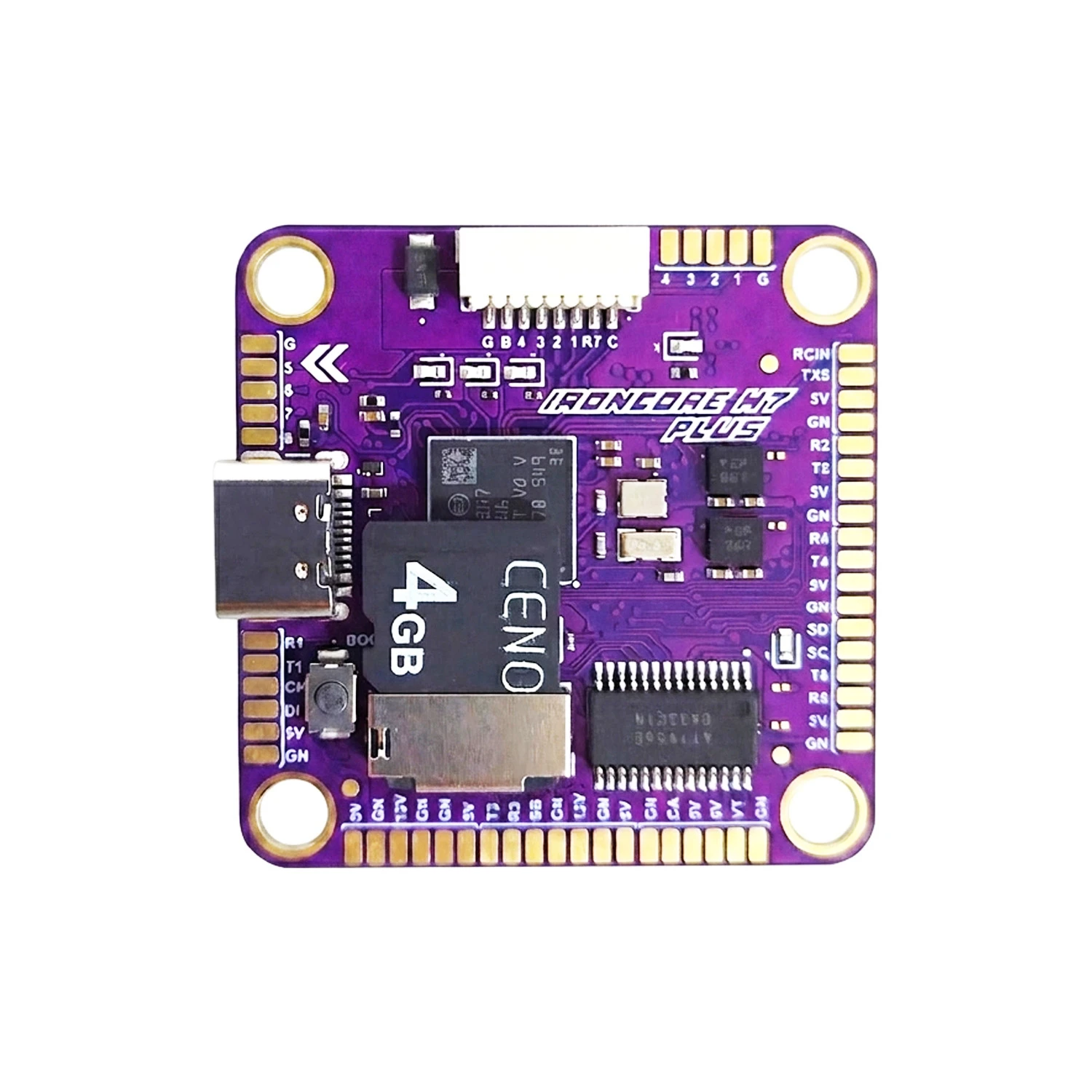

EDITHFPV Ironcore H7 Plus Flight Controller
The EDITHFPV Ironcore H7 Plus Flight Controller is a high-performance autopilot built around the STM32H743 MCU, featuring dual BMI270 IMUs for redundancy and supporting 3–8S LiPo input with 8 motor outputs for complex multirotor and UAV builds.
Features
- High-performance STM32H743 MCU for fast flight control processing.
- Dual BMI270 IMUs provide sensor redundancy and accurate motion tracking.
- Wide 3–8S LiPo input voltage range for versatile power system integration.
- Supports up to 8 motor outputs for octocopter and complex multirotor configurations.
- ArduPilot firmware compatibility for professional and custom UAV applications.
Out of stock
The EDITHFPV Ironcore H7 Plus is engineered as a robust flight control solution for demanding UAV platforms. Its core is the STM32H743 microcontroller, delivering the computational power required for advanced navigation algorithms and smooth, responsive flight characteristics. The inclusion of dual BMI270 inertial measurement units provides critical sensor redundancy, enhancing system reliability in professional applications.
Designed with extensive connectivity, the controller features 7 UART ports for seamless integration of peripherals such as GPS modules, telemetry radios, and FPV video systems. Its integrated AT7456E OSD chip allows for clean, customizable flight data overlay directly on your FPV feed. The compact 30.5×30.5mm mounting footprint ensures compatibility with a wide range of frame designs.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 8 × 8 × 4 cm |
