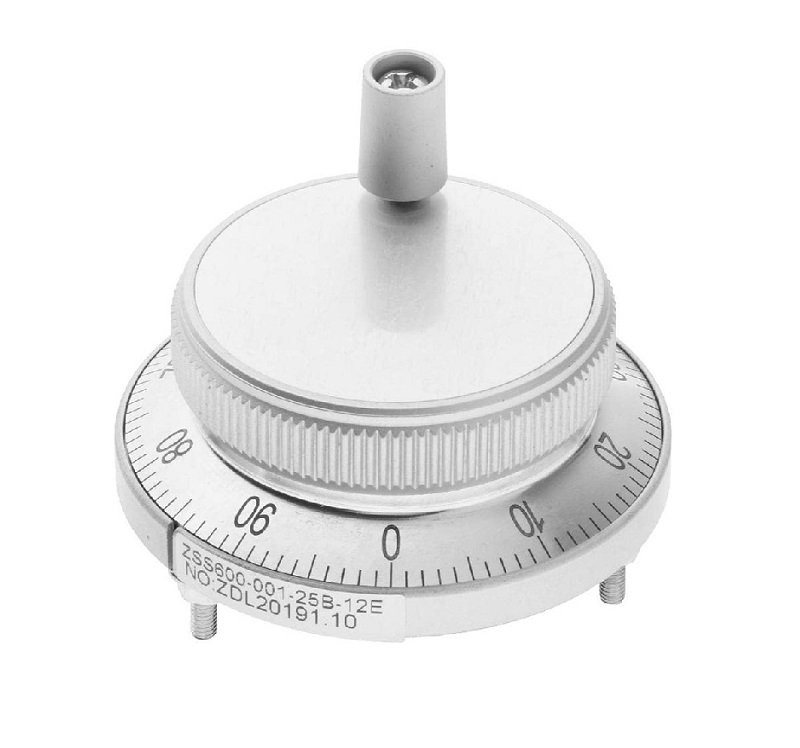

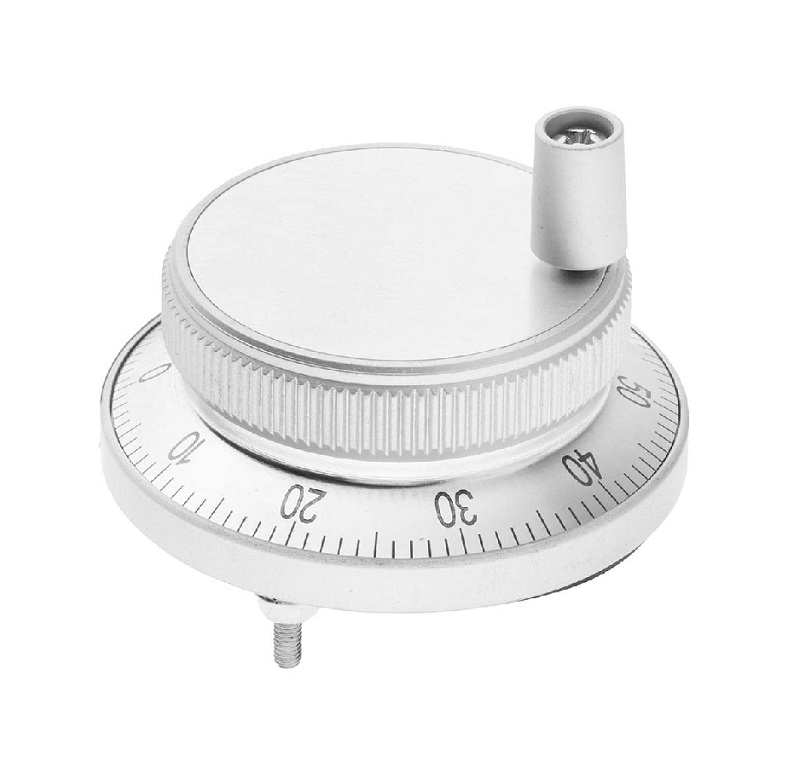

ZSS600-25B-12E Hand Wheel Pulse Encoder for CNC - 25 Resolution, 12VDC
The ZSS600-25B-12E is a 12VDC hand wheel pulse encoder designed for manual precision control and positioning in CNC machinery. It generates 25-pulse-per-revolution signals for accurate feedback integration with CNC controllers and industrial PLCs.
Features
- 25 pulses per revolution (PPR) resolution for precise incremental positioning.
- 12VDC operating voltage compatible with standard industrial control power supplies.
- 60mm diameter hand wheel with ergonomic grip for manual operator input.
- Generates clean pulse signals (A/B quadrature) for direct CNC controller interface.
- Compact 48mm body length for integration into control panels and pendant stations.
Out of stock
The ZSS600-25B-12E is a manual rotary pulse encoder engineered for CNC machine tool applications. It translates the operator’s hand wheel rotation into precise digital pulse trains, enabling functions like manual pulse generation (MPG), axis jogging, and fine feed rate overrides. The device utilizes an optical or magnetic incremental encoding mechanism to produce A/B quadrature outputs, ensuring reliable directional and positional feedback to the CNC system.
Built for the industrial environment, this encoder features a robust mechanical construction with a smooth-rotation hand wheel. Its 12VDC power requirement aligns with common industrial logic levels, facilitating straightforward wiring to CNC controller I/O modules or pendant interfaces. The 25 PPR resolution provides a balance between fine control sensitivity and system processing requirements.
Additional Information
| Weight | 0.182 kg |
|---|---|
| Dimensions | 8 × 9 × 6.5 cm |
