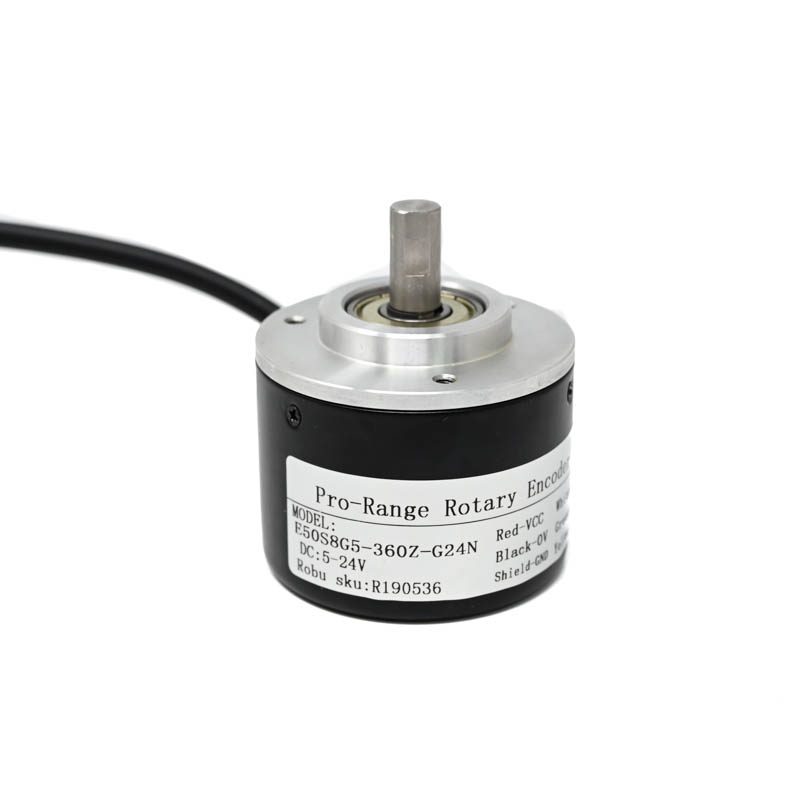

Pro-Range E50S8G5-360Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 360 PPR

The A and B channels provide two square wave signals in quadrature (90 degrees out of phase), allowing the control system to determine both the speed and direction of rotation. The Z channel outputs a single pulse per revolution, serving as an index or reference mark for establishing an absolute zero position within each rotation, which is critical for homing sequences.

Yes, when powered within its 5-24V range. For direct connection to a 5V microcontroller like an Arduino, ensure the encoder's output signal levels are compatible (typically 5V TTL). For the 3.3V logic of a Raspberry Pi, a level shifter or voltage divider may be required on the signal lines to prevent damage. The ABZ outputs are typically open-collector or push-pull, so consult the datasheet for specific interface details.

The encoder is designed for panel mounting via its 38mm diameter PCB mounting hole. Secure the encoder body firmly to your chassis, ensuring the shaft is properly coupled to the rotating element with minimal radial and axial play. Precise alignment is crucial to prevent bearing wear and ensure accurate pulse generation. Use a flexible coupling if significant misalignment is possible.

PPR (Pulses Per Revolution) refers to the number of electrical output pulses from a single channel per full shaft rotation. For a quadrature encoder like this one with A and B channels, the system can count the rising and falling edges of both signals, effectively providing 4x the PPR for higher resolution, often termed Counts Per Revolution (CPR). This 360 PPR encoder can yield up to 1440 counts per revolution when using quadrature decoding.
