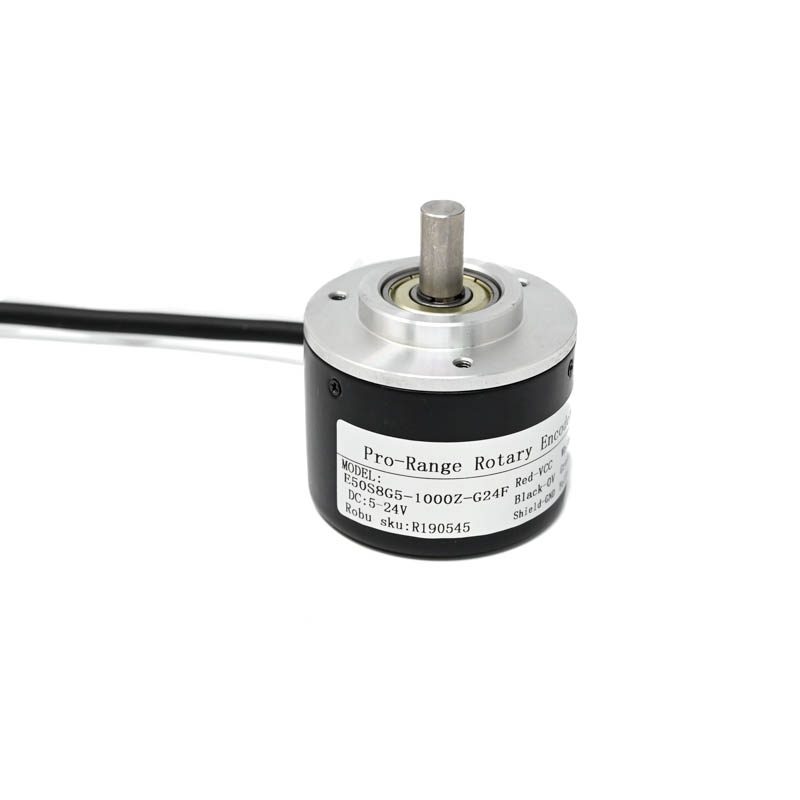

Pro-Range E50S8G5-1000Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR

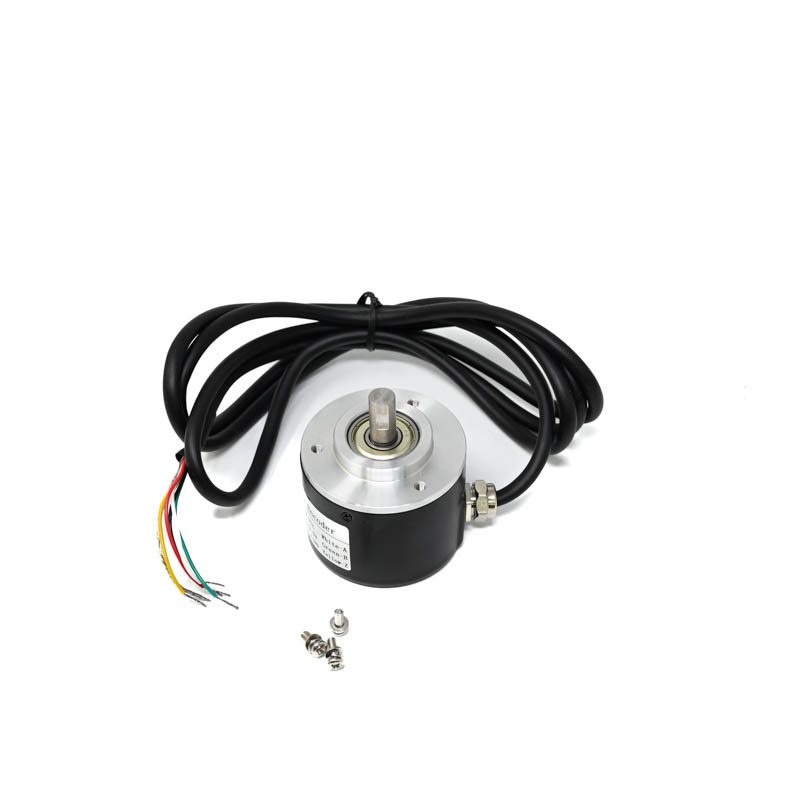

Pro-Range E50S8G5-1000Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR - Image 2
SKU: SENS-2632
📋 GST Invoice Available

Pro-Range E50S8G5-1000Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1000 PPR

₹1,999.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E50S8G5-1000Z-G24F is a 50mm diameter rotary incremental encoder delivering 1000 PPR resolution via photoelectric sensing and ABZ three-channel output. Operating from 5-24V DC, it provides precise position and speed feedback for integration into industrial PLCs, motion controllers, and robotic systems.

Features

  • High-resolution 1000 pulses per revolution (PPR) for accurate angular measurement.
  • Photoelectric sensing principle with ABZ three-channel quadrature output for reliable direction and position detection.
  • Wide 5V to 24V DC operating voltage range for flexible integration into various control systems.
  • Compact 50mm diameter housing with a 6mm x 15mm shaft for robust and space-efficient mounting.
  • Designed for demanding industrial automation, CNC machinery, and servo motor feedback applications.

Out of stock

Description

The Pro-Range E50S8G5-1000Z-G24F rotary incremental encoder employs a photoelectric sensing mechanism to generate precise digital pulses corresponding to shaft rotation. Its ABZ output channels provide A and B quadrature signals for position and speed measurement, plus a Z-index (zero) pulse for absolute reference per revolution, ensuring reliable data for closed-loop control systems.

Constructed with a durable metal housing, this encoder is built to withstand the mechanical stresses of industrial environments. The wide 5-24V DC supply voltage compatibility allows for direct connection to a broad spectrum of industrial PLCs, motor drives, and microcontroller interfaces (3.3V/5V logic compatible with appropriate level shifting).

Key Features

  • Precision Photoelectric Sensing: Utilizes an optical disk and sensor pair for high-accuracy, non-contact pulse generation, ensuring long-term reliability and minimal mechanical wear.
  • Quadrature & Index Output (ABZ): Delivers A and B channels in 90-degree phase shift for direction detection and precise incremental counting, plus a Z-channel marker for homing routines.
  • Broad Voltage Operation: Supports a wide input range from 5V to 24V DC, facilitating seamless integration with 12V/24V industrial power rails and 5V microcontroller systems.
  • Industrial-Grade Construction: Features a robust 50mm diameter metal housing and a sturdy 6mm shaft designed for direct coupling in high-vibration applications.
  • High Resolution: 1000 pulses per revolution provides fine angular resolution for precise speed control and positional feedback.
  • Easy Mechanical Integration: Standard 50mm flange mounting with through-holes and a 6mm x 15mm shaft simplifies installation onto motors and rotating machinery.

Applications

  • Servo motor and stepper motor speed and position feedback in CNC machines and industrial robots.
  • Angular position measurement in conveyor systems, packaging machinery, and rotary indexing tables.
  • Speed monitoring and control in automated guided vehicles (AGVs) and precision drives.
  • Integration into PLC-based industrial automation systems for process control and monitoring.
  • Educational and prototyping platforms for motion control research and mechatronics projects.

Technical Specifications

Manufacturer Part NumberE50S8G5-1000Z-G24F
Encoder TypeRotary Incremental
Sensing PrinciplePhotoelectric
Pulses Per Revolution (PPR)1000
Output ChannelsABZ (3 Channels)
Supply Voltage5V to 24V DC
Housing Diameter50 mm
Shaft Dimensions6 mm diameter, 15 mm length
Mounting Hole Diameter50 mm (PCB/Flange)
Product TypeRotary Incremental Encoder

Frequently Asked Questions

What is the output signal type of this Pro-Range encoder?

This encoder provides a standard ABZ three-channel digital output. The A and B channels are quadrature signals (90° out of phase) used for determining both rotational direction and incremental position. The Z-channel outputs a single pulse per revolution, serving as an index or reference mark for absolute position homing.

What is the operating voltage range, and can I use it with a 5V Arduino?

The encoder operates from 5V to 24V DC. For direct connection to a 5V microcontroller like an Arduino, ensure your power supply provides a stable 5V to the encoder's Vcc pin. The digital output signals (A, B, Z) will be at the same logic level as the supply voltage, making them directly compatible with 5V logic inputs.

How do I mount and connect this 50mm encoder?

Mount the encoder via its 50mm diameter flange using the provided mounting holes, ensuring the 6mm shaft is properly coupled to your rotating machinery. Electrical connection is typically made via a cable connector (not included; check datasheet for pinout). Wire the Vcc (5-24V), GND, and A, B, Z output pins to your controller, using shielded cable for noise immunity in industrial settings.

Package Includes

  • 1 x Pro-Range Rotary Incremental Encoder (Model: E50S8G5-1000Z-G24F)

Additional Information

Weight 0.2 kg
Dimensions 9 × 9 × 7 cm
