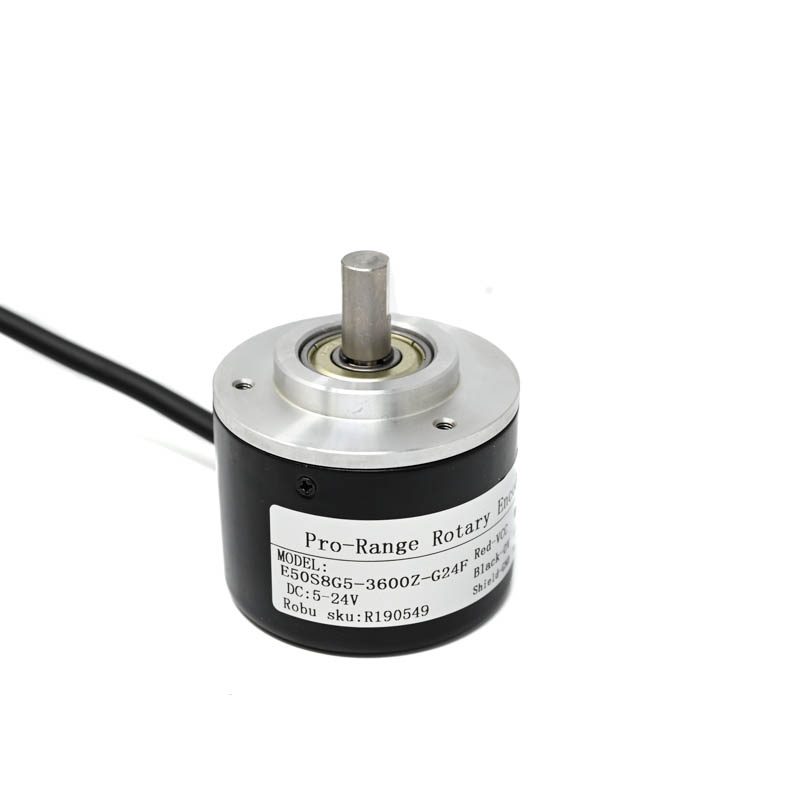

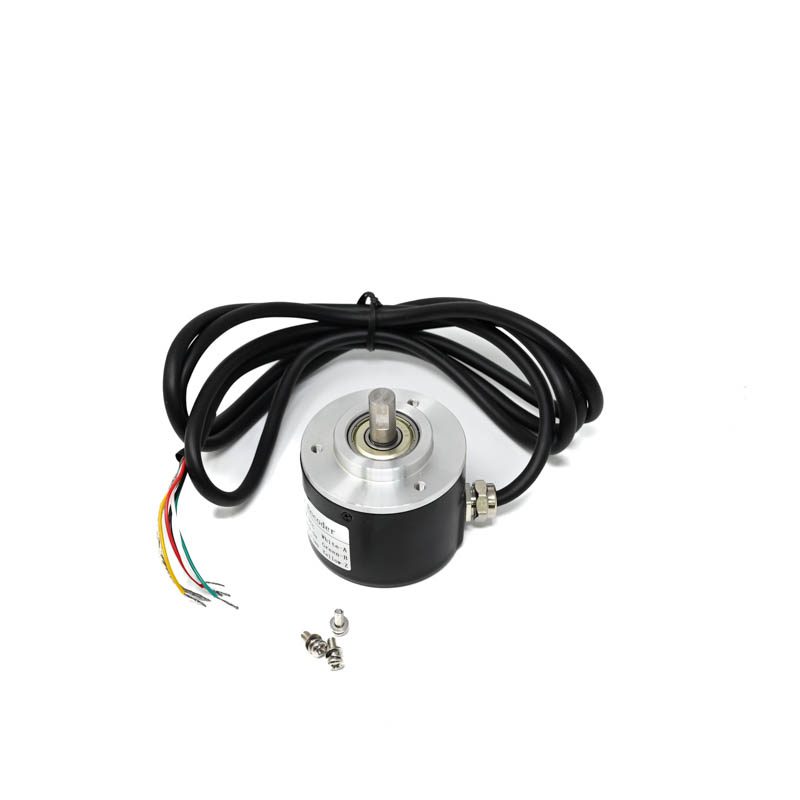

Pro-Range E50S8G5-3600Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 3600 PPR
The Pro-Range E50S8G5-3600Z-G24F is a 50mm rotary incremental encoder delivering 3600 PPR via photoelectric sensing and ABZ three-channel output. It operates from 5-24V DC for compatibility with industrial PLCs, servo drives, and motion control systems requiring high-resolution position and speed feedback.
Features
- High-resolution 3600 pulses per revolution (PPR) for precise angular position and speed measurement.
- Photoelectric sensing principle with ABZ three-channel (A, B, Z) quadrature and index output for reliable signal integrity.
- Wide operating voltage range of 5V to 24V DC for flexible integration into diverse industrial and robotic control systems.
- Compact 50mm diameter housing with robust construction for durable performance in demanding mechanical environments.
- Standard 6mm diameter shaft with 15mm length for straightforward coupling to motors and rotating machinery.
Out of stock
The Pro-Range E50S8G5-3600Z-G24F rotary incremental encoder employs a photoelectric sensing mechanism, where an LED light source and a photodetector read a patterned disc to generate precise digital pulses. This method ensures high accuracy and repeatability for motion feedback in closed-loop control systems.
Featuring ABZ three-channel output, the encoder provides two 90-degree phase-shifted square waves (A and B) for determining direction and a once-per-revolution index pulse (Z) for absolute reference. The device is engineered for industrial durability, with a design suitable for integration into servo motors, CNC machinery, and automated robotic axes where reliable position and velocity data are critical.
Additional Information
| Weight | 0.206 kg |
|---|---|
| Dimensions | 9 × 9 × 7 cm |
