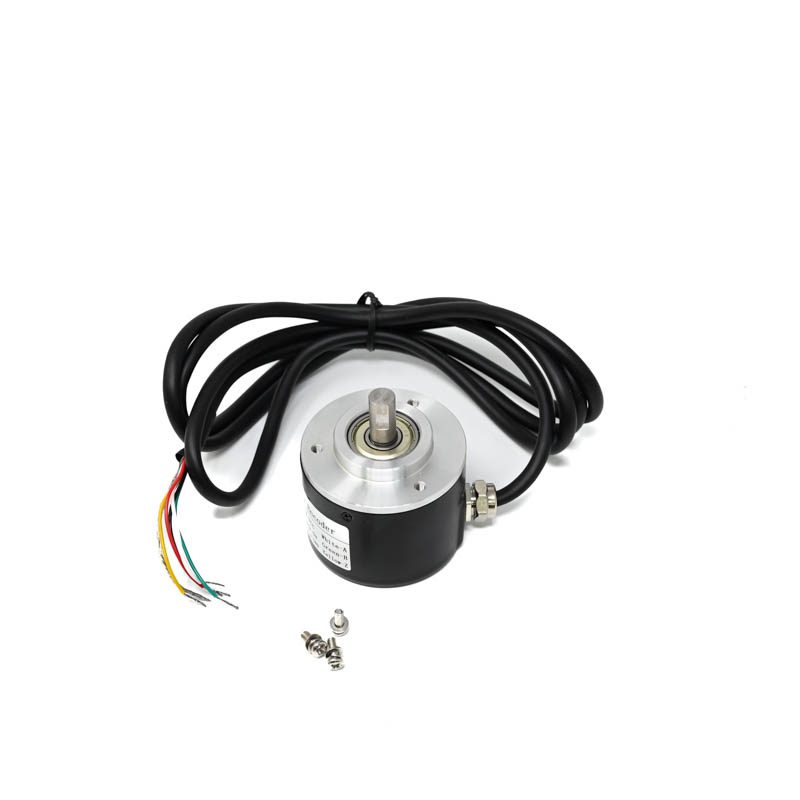

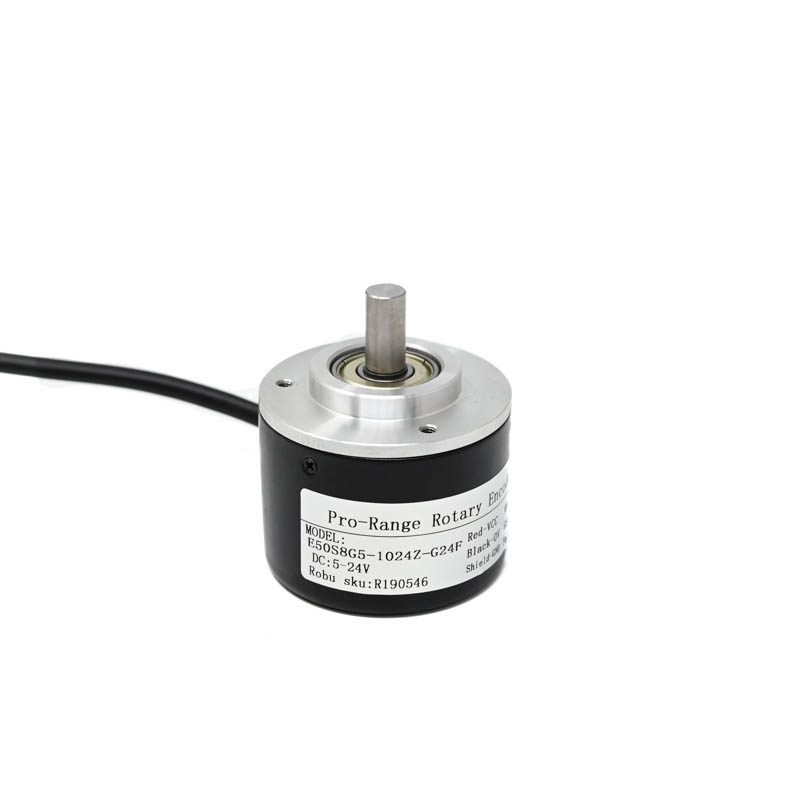

Pro-Range E50S8G5-1024Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1024 PPR
The Pro-Range E50S8G5-1024Z-G24F is a high-precision rotary incremental encoder delivering 1024 PPR via ABZ three-channel photoelectric output. Designed for industrial motion control, it operates from 5-24V DC, making it compatible with PLCs, servo drives, and robotic systems requiring accurate position and speed feedback.
Features
- High-resolution 1024 pulses per revolution (PPR) for precise angular measurement.
- ABZ three-channel incremental output (A, B, Z index) for direction detection and reference pulse.
- Photoelectric sensing principle ensures reliable, contactless operation with high noise immunity.
- Wide operating voltage range of 5V to 24V DC for versatile system integration.
- Compact 50mm diameter housing with robust construction for industrial and robotic applications.
Out of stock
The E50S8G5-1024Z-G24F rotary incremental encoder utilizes a photoelectric sensing mechanism, where a light source and photodetector read a patterned disc to generate precise digital pulses. This contactless design ensures long-term reliability and high-speed operation without mechanical wear.
Featuring ABZ three-channel output, it provides quadrature signals (A and B) for determining direction and counting pulses, along with a Z-index channel that outputs a single pulse per revolution for absolute reference. The encoder’s wide 5-24V DC supply range allows for direct compatibility with industrial PLCs, motor drives, and microcontroller-based systems like Arduino or Raspberry Pi with appropriate level shifters.
Additional Information
| Weight | 0.206 kg |
|---|---|
| Dimensions | 9 × 9 × 7 cm |
