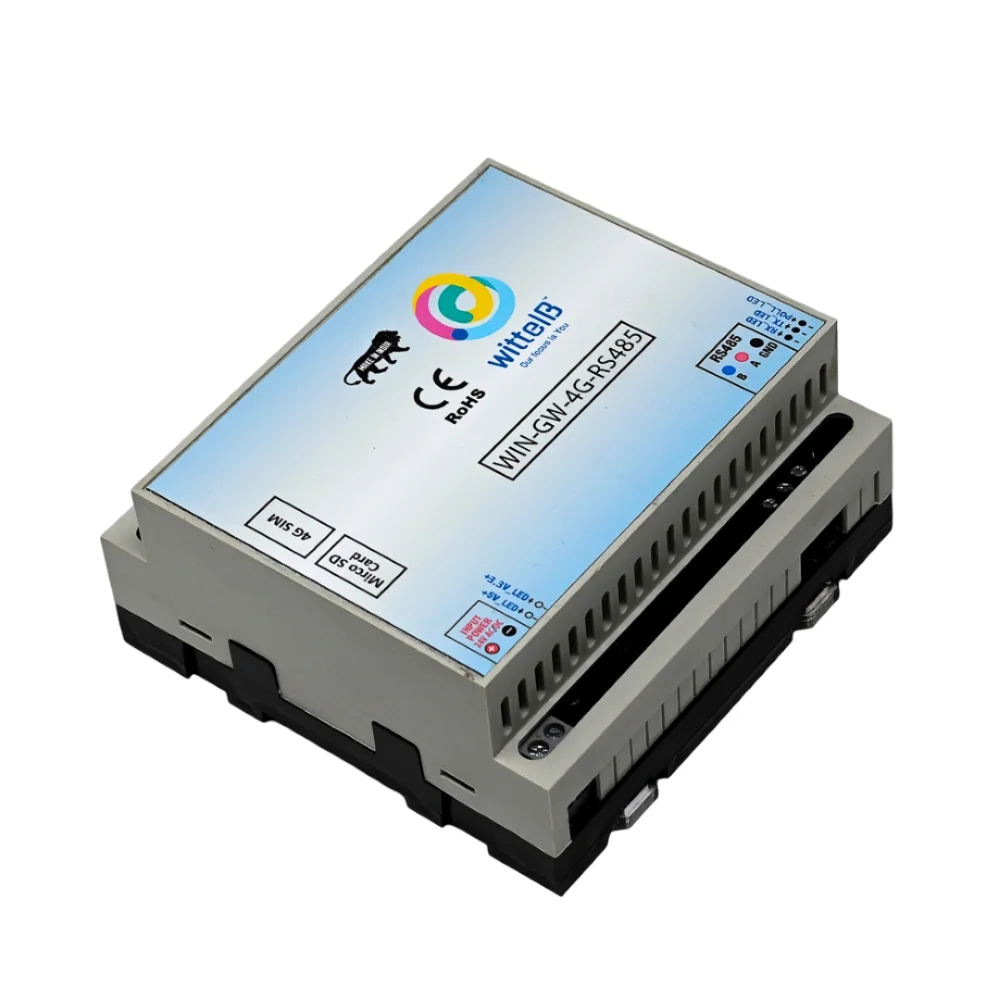

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway

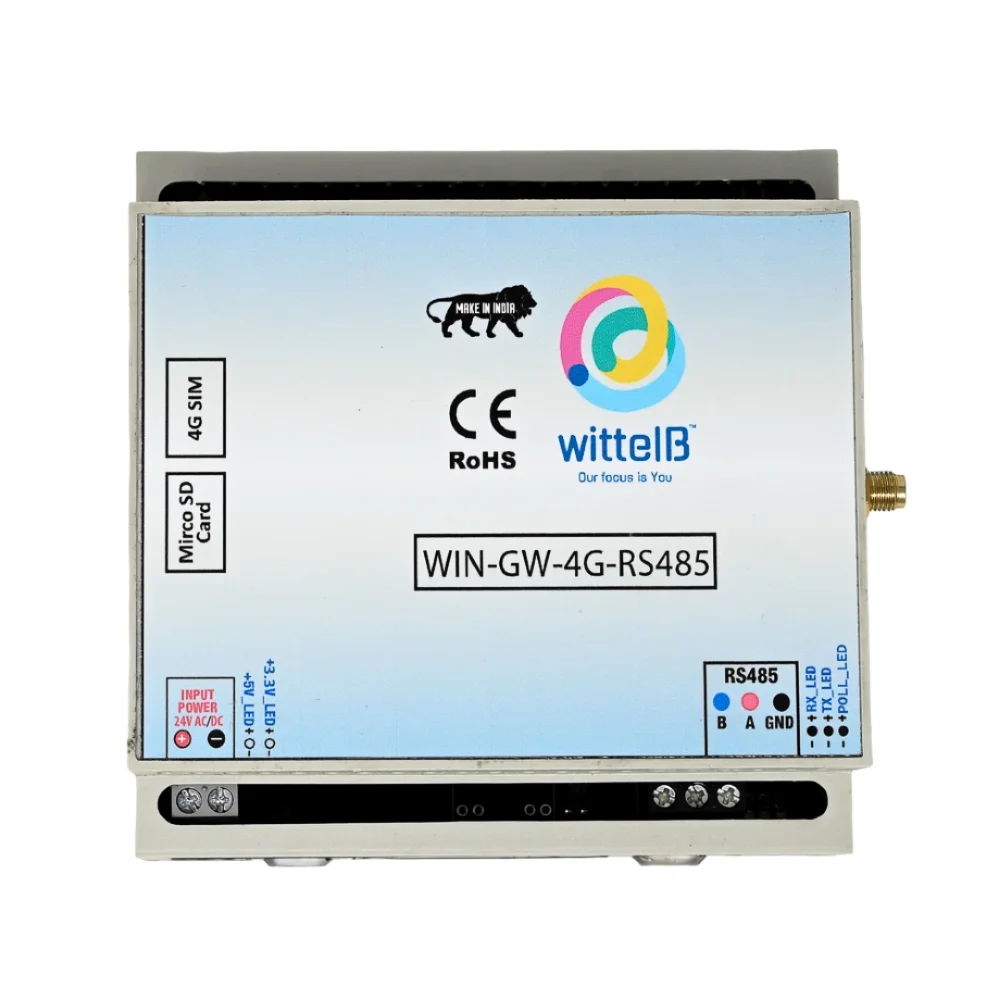

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway - Image 2

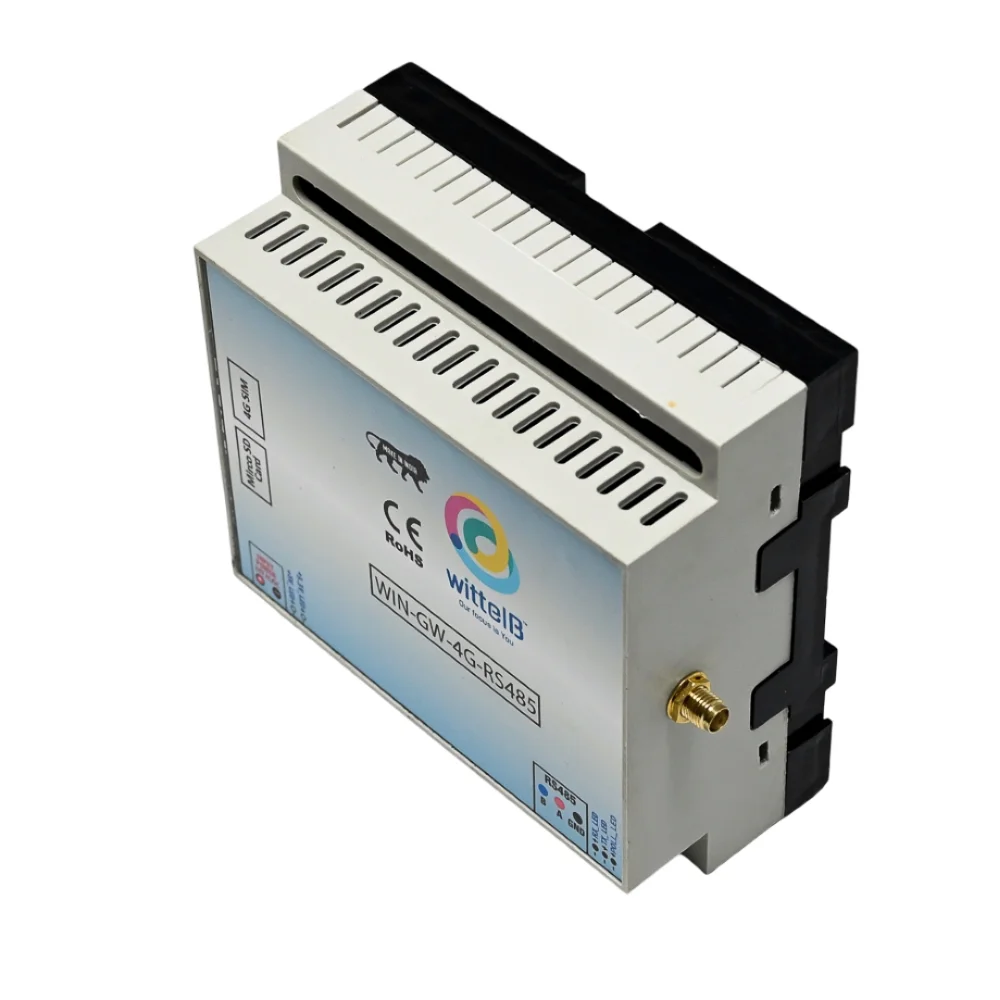

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway - Image 3

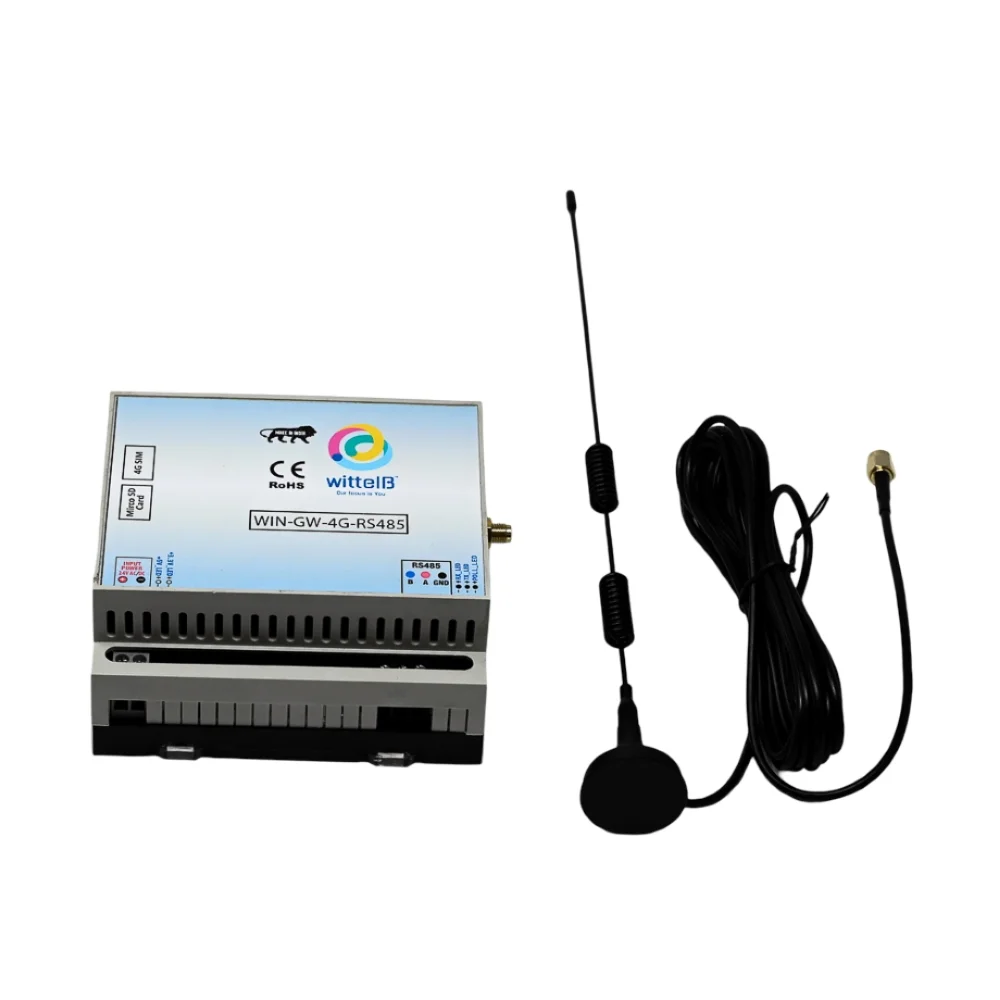

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway - Image 4
SKU: IOWC-1502
📋 GST Invoice Available

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway

₹5,444.00 (Inclusive of all taxes)
Out of Stock

The Wittelb WIN-GW-4G+RS485 is an industrial IoT gateway providing 4G LTE cellular connectivity and Modbus RS485 serial interfacing for remote telemetry and control. It features a web-based UI for configuration and supports MQTT for cloud data transmission.

Features

  • 4G LTE cellular connectivity ensures reliable, high-speed internet access for remote deployments.
  • Integrated Modbus RS485 port enables seamless connection to industrial PLCs, sensors, and control systems.
  • Cloud-ready with MQTT protocol support for efficient, bidirectional data transmission to cloud platforms.
  • Features a web-based user interface for straightforward configuration, monitoring, and management.
  • Includes digital and analog I/O ports for customizable sensor interfacing and control logic.

Out of stock

Description

The Wittelb WIN-GW-4G+RS485 is a robust industrial IoT gateway designed for reliable data acquisition and transmission in remote or challenging environments. It combines a 4G LTE cellular modem with a Modbus RS485 serial interface, creating a bridge between legacy industrial equipment and modern cloud-based monitoring systems.

Engineered for operational resilience, the gateway supports event-based data logging with substantial local storage capacity, ensuring data persistence during network outages. Its DIN-rail mountable enclosure and 24VDC power input make it suitable for direct integration into industrial control panels and automation cabinets.

Key Features

  • 4G LTE cellular modem provides reliable, always-on internet connectivity for remote sites.
  • Integrated Modbus RTU/ASCII master/slave support over RS485 for industrial sensor and PLC networks.
  • Cloud connectivity via MQTT protocol for efficient, publish-subscribe based data transmission.
  • Local event storage capability (up to 50,000+ events) with optional external microSD card support.
  • Built-in GPS receiver for equipment location tracking and geo-fencing applications.
  • Configurable digital and analog I/O ports for interfacing with switches, sensors, and actuators.
  • Intuitive web-based user interface for easy setup, real-time monitoring, and firmware updates.
  • DIN-rail mountable metal enclosure designed for harsh industrial environments.

Applications

  • Remote industrial telemetry and SCADA system data aggregation.
  • Smart agriculture for monitoring soil sensors, weather stations, and irrigation control.
  • Fleet and asset tracking with integrated GPS location and sensor data.
  • Building automation and energy management systems.
  • Environmental monitoring of air quality, water levels, and weather conditions.

Technical Specifications

Model NumberWIN-GW-4G+RS485-4G MQTT
Cellular Connectivity4G LTE
Serial InterfaceModbus RS485
Cloud ProtocolMQTT
Supply Voltage24 VDC
Operating Temperature0°C to 60°C
Storage Temperature-20°C to 70°C
SIM CardMicro SIM
Local StorageInternal + External microSD slot
GPSIntegrated
I/O PortsDigital & Analog Inputs/Outputs
MountingDIN Rail
Dimensions (LxWxH)110 x 110 x 50 mm

Frequently Asked Questions

How do I configure the MQTT connection on the WIN-GW-4G+RS485 gateway?

Access the gateway's web interface via its local IP address. Navigate to the Cloud Settings or MQTT configuration page. Enter your broker's server address (IP or URL), port (typically 1883 for unencrypted, 8883 for TLS), client ID, username, and password. Configure the publish/subscribe topics for your data points. Save the settings and restart the gateway to establish the connection. Verify the status on the dashboard.

What is the wiring procedure for connecting Modbus RTU devices to the RS485 port?

Identify the A (positive) and B (negative) data lines on your Modbus RTU sensor or PLC. Connect these to the corresponding A+ and B- terminals on the gateway's RS485 screw terminal block. Ensure proper termination (a 120-ohm resistor) is enabled at the end of the bus if required for your network length. Configure the gateway's Modbus settings (baud rate: 9600, 19200, etc.; parity; stop bits) in the web UI to match your slave device parameters. Assign unique slave IDs to each device on the bus.

What power supply specifications are required for reliable operation?

The gateway requires a stable 24VDC power supply, typically connected to the provided screw terminal block. Ensure the power source can deliver sufficient current, generally around 0.5A to 1A, to account for peak cellular transmission loads. For permanent installations, use a DIN-rail mounted 24VDC switching power supply rated for industrial environments. Avoid using undersized or unregulated power adapters, as voltage fluctuations can cause instability or damage to the cellular modem.

Package Includes

  • 1 x Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway

Additional Information

Weight 0.25 kg
Dimensions 11 × 11 × 5 cm

Related Products

Out of Stock

DFRobot RS485 Shield for Arduino

939.00
Learn More
Out of Stock

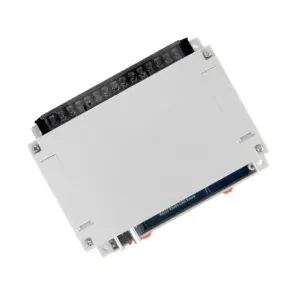

Waveshare Isolated RS232/RS485/CAN/CAN FD HAT for Raspberry Pi

5,369.00
Learn More
Out of Stock

Waveshare Industrial ESP32-S3 Control Board w/ 8-Channel I/O, RS485, CAN, ETH, PoE

5,459.00
Learn More
Out of Stock

Waveshare Isolated RS485 CAN HAT (B) for Raspberry Pi

2,229.00
Learn More
Out of Stock

Waveshare RS485 CAN Expansion Board for Jetson Nano w/ Digital Isolation

2,309.00
Learn More
Out of Stock

XBee IO Expansion Shield

1,153.00
Learn More
Out of Stock

Waveshare Isolated RS485/RS232 HAT for Raspberry Pi, SPI

1,719.00
Learn More
Out of Stock

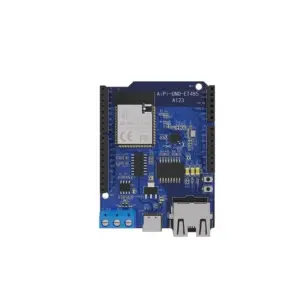

AI-Thinker AiPi-UNO-ET485 Arduino Dev Board w/ Ai-M61-32S
