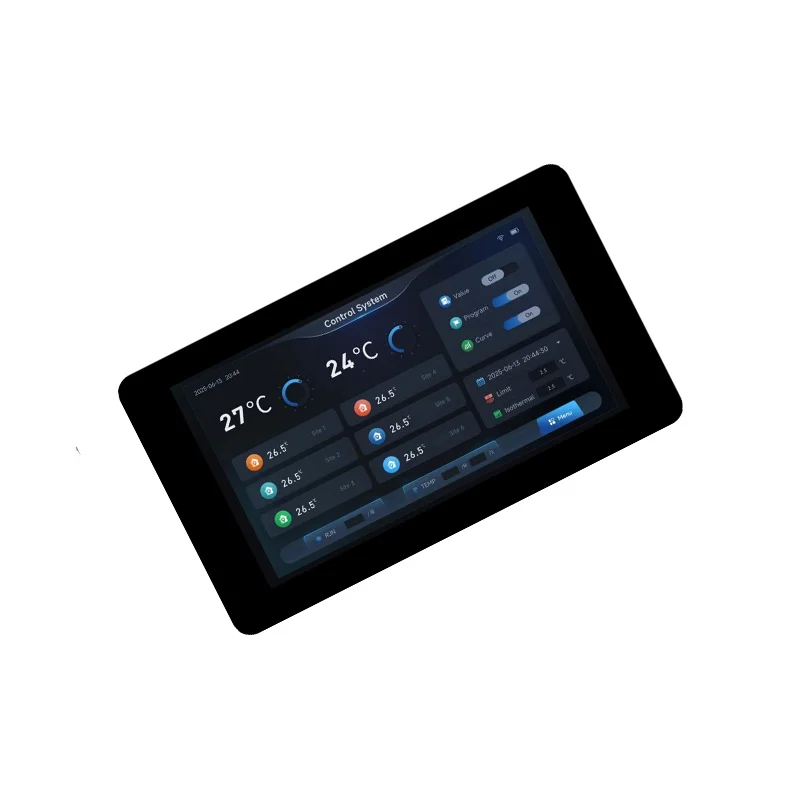

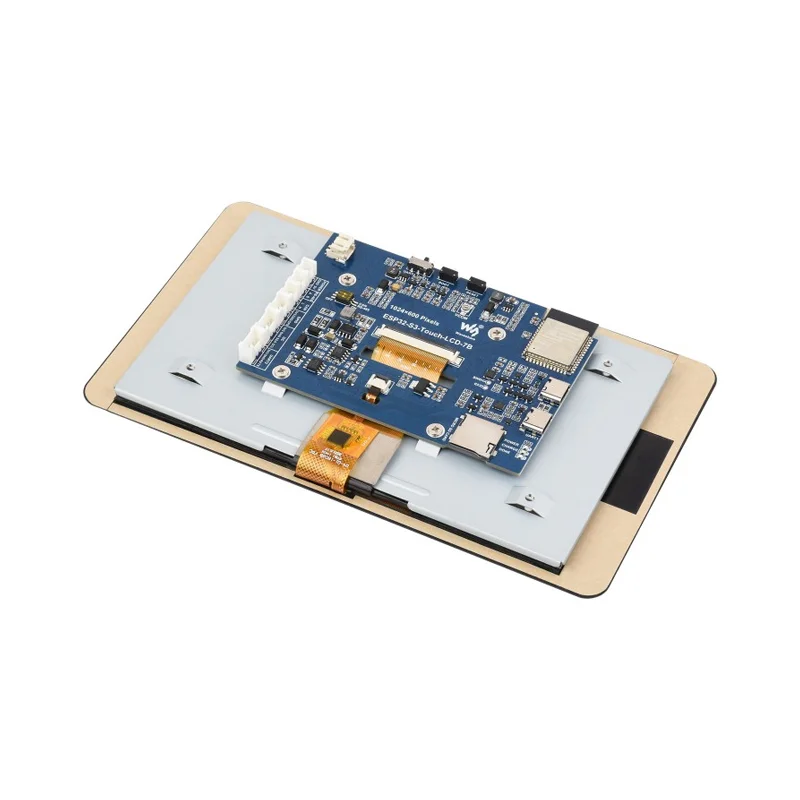

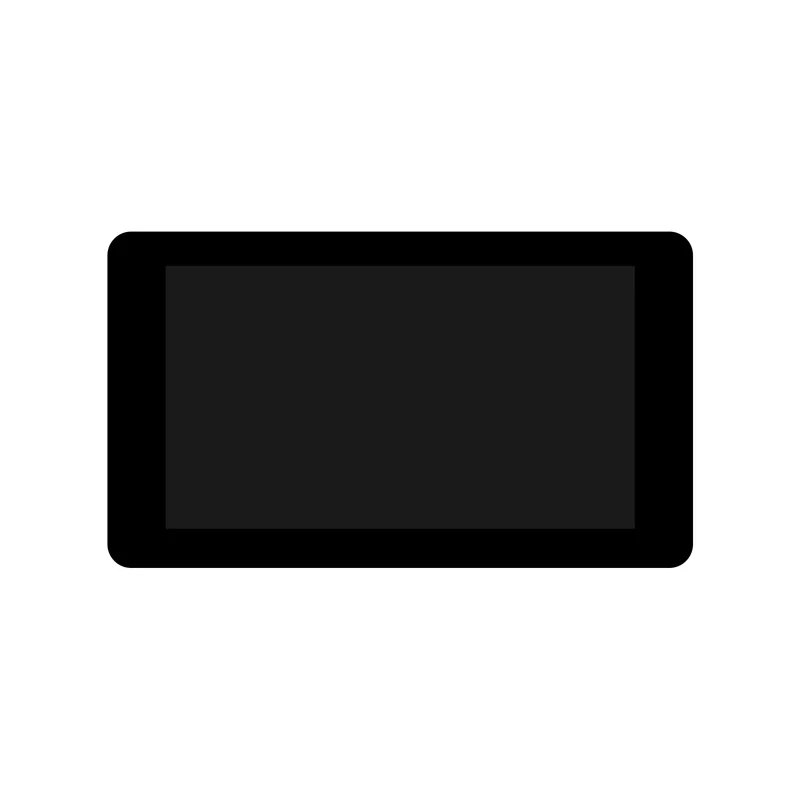

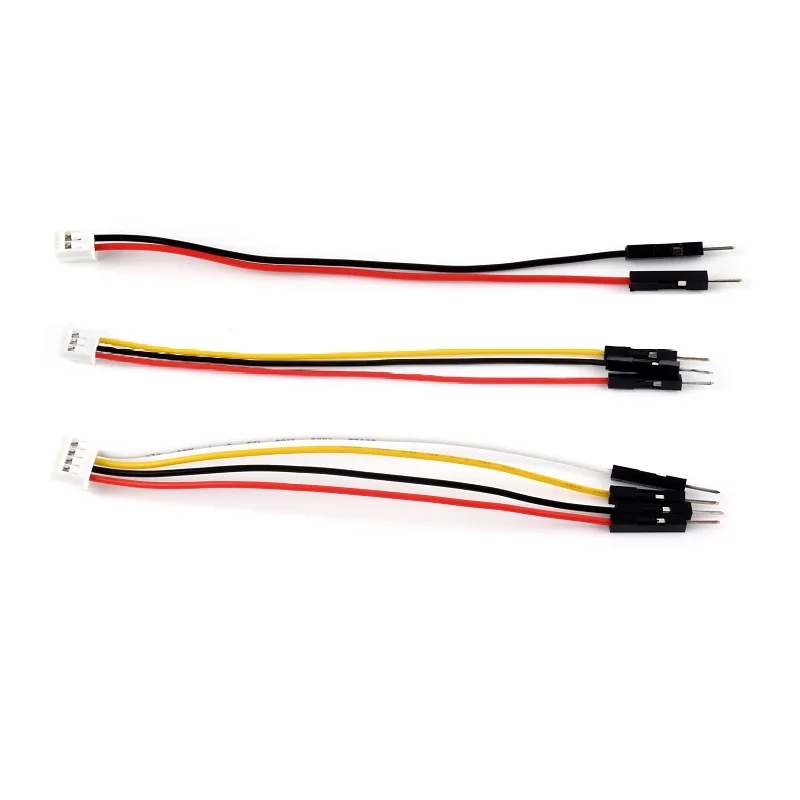

Waveshare ESP32-S3 7-Inch 1024x600 Touch Display Development Board Type B

The board is fully compatible with the Arduino IDE using the ESP32-S3 board package, Espressif's official ESP-IDF framework for advanced features, and MicroPython for rapid scripting. You can develop LVGL-based graphical interfaces using these platforms. Ensure you select the correct COM port and board target (e.g., ESP32-S3 Dev Module) in your IDE after connecting via the USB-C port.

The CAN interface uses the labeled CAN_H and CAN_L pins, requiring a CAN transceiver module for physical layer connection to a CAN bus. The RS485 interface uses the A (D+) and B (D-) pins; you must connect these to an RS485 transceiver chip or module. Both interfaces are accessed via the UART peripherals on the ESP32-S3. Configure the appropriate GPIO pins in your firmware for UART mode and use libraries like ESP32 CAN or Modbus for protocol implementation.

Yes, the LCD backlight brightness is adjustable via PWM control. The backlight control pin is typically connected to a GPIO capable of PWM output. In your code, you can use the LEDC (LED Control) peripheral of the ESP32-S3 to set a PWM signal, allowing you to dim or brighten the screen based on ambient light conditions or to save power. Refer to the board's pinout diagram to identify the correct GPIO for backlight control.

The board can be powered via the USB-C port (5V) or through its battery input terminals. The onboard circuitry includes a battery charging and monitoring feature. A specific ADC pin is connected to a voltage divider to read the battery voltage. You can read this analog value in your firmware to estimate battery level and implement low-power sleep modes or alerts. Ensure your power source provides stable 5V if using USB, or a 3.7V Li-ion battery for the battery terminals.
