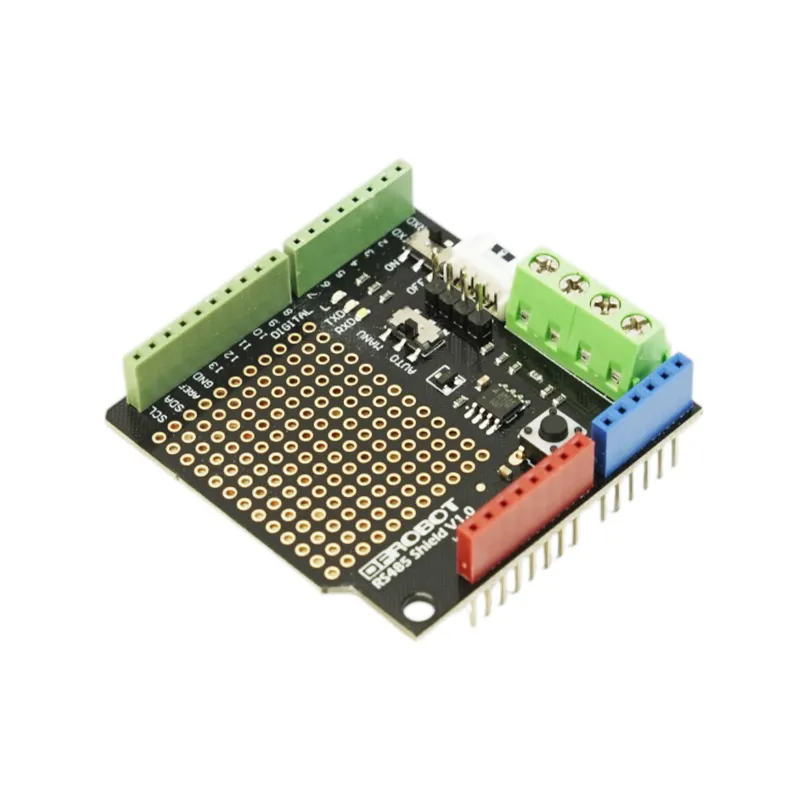

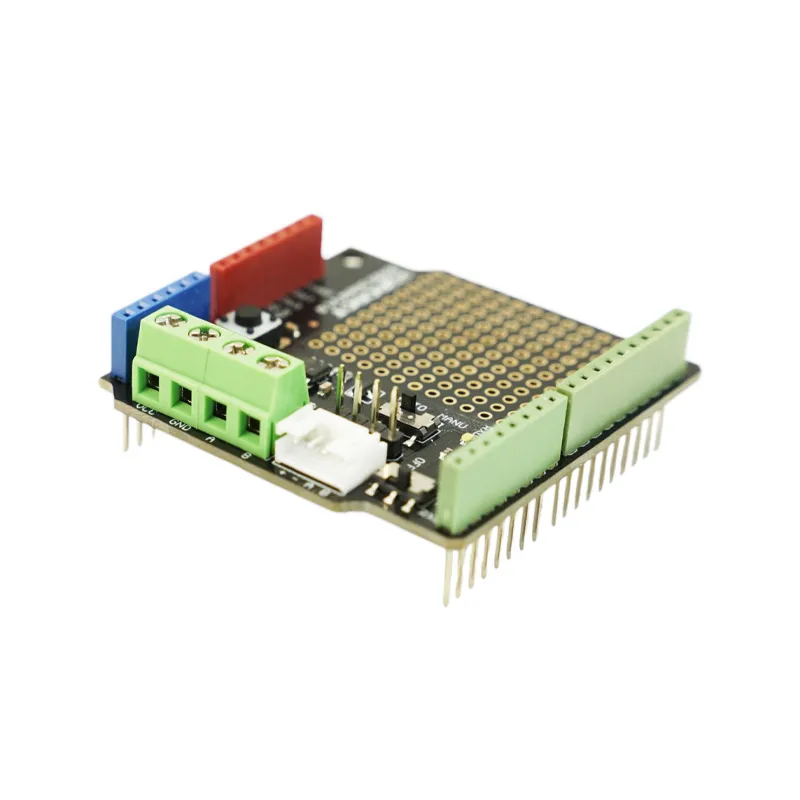

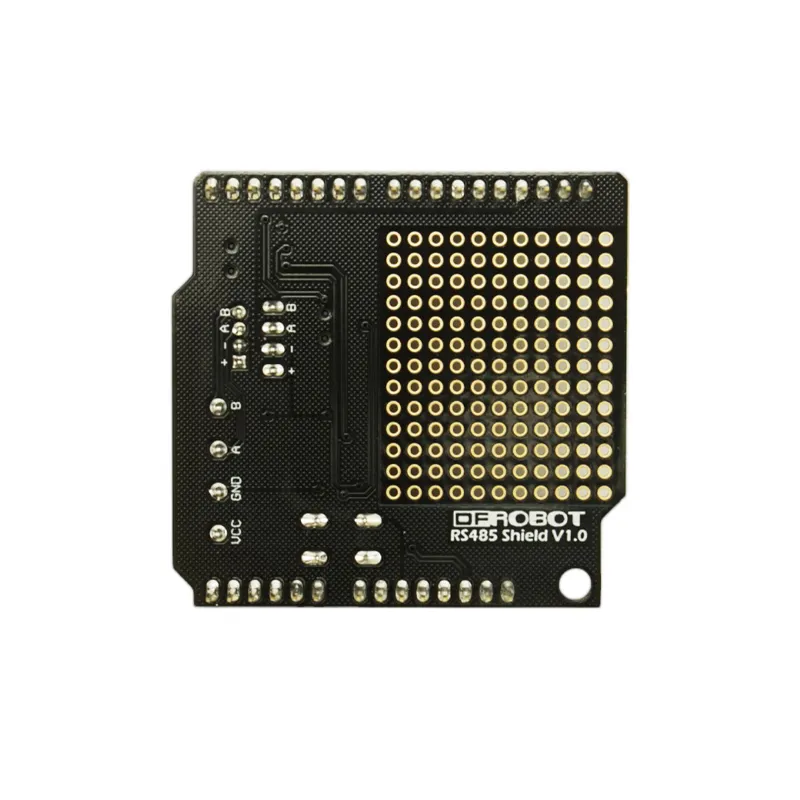

DFRobot RS485 Shield for Arduino

The shield's main function is to convert Arduino's UART (TTL) signals to the RS485 differential signal protocol. This enables robust, long-distance serial communication, making the Arduino suitable for industrial applications where noise immunity and extended range are critical for data exchange.

The auto/manual switch allows control over the RS485 transceiver's direction. In auto mode, the transceiver switches automatically between transmit and receive. In manual mode, you can control the direction via a digital pin, useful for specific timing requirements in complex RS485 networks or half-duplex operations.

This shield is primarily designed for direct compatibility with Arduino Uno and other Arduino boards featuring the standard R3 pinout. It leverages the UART pins (D0/RX, D1/TX) for communication and standard 5V power supply, ensuring straightforward integration and programming.

The DFRobot RS485 Shield can achieve reliable data transmission distances of up to 1200 meters. This long-range capability, combined with the inherent noise resistance of the RS485 standard, makes it ideal for distributed industrial control and monitoring systems over vast areas.

The shield operates on a 5V input voltage, typically supplied directly from the attached Arduino board. It draws power from the Arduino's 5V pin, eliminating the need for an external power source for the shield itself, simplifying power management in your embedded system.
