Waveshare RP2350 4.3inch Capacitive Touch Display Dev Board
The Waveshare RP2350 4.3-inch Capacitive Touch Display Development Board integrates a dual-core, dual-architecture RP2350B microcontroller with an 800×480 IPS LCD, offering 65K colors and 5-point capacitive touch. This versatile platform is ideal for HMI and embedded projects, supporting C/C++, MicroPython, and Arduino IDE.
Features
- RP2350B Dual-core (Arm Cortex-M33 / Hazard3 RISC-V) Microcontroller
- Integrated 4.3-inch 800×480 IPS LCD with 5-point Capacitive Touch
- Onboard 16MB Flash and 2MB PSRAM for ample program and data storage
- Features industrial-grade CAN, RS485, isolated digital I/O, and wide 7-36V DC input
- USB Type-C connectivity for streamlined programming and debugging
Out of stock
The Waveshare RP2350 4.3-inch Capacitive Touch Display Development Board serves as a robust and adaptable platform for crafting advanced Human-Machine Interface (HMI) systems. It integrates the Raspberry Pi RP2350B microcontroller, which boasts a unique dual-core, dual-architecture design, enabling developers to leverage both Arm Cortex-M33 and Hazard3 RISC-V processors for diverse application requirements.

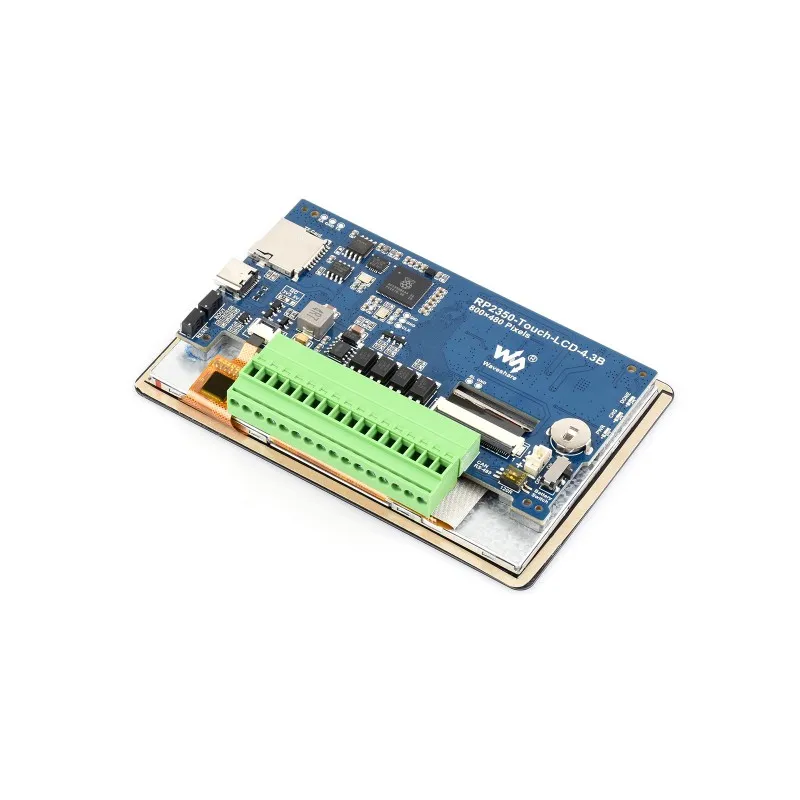

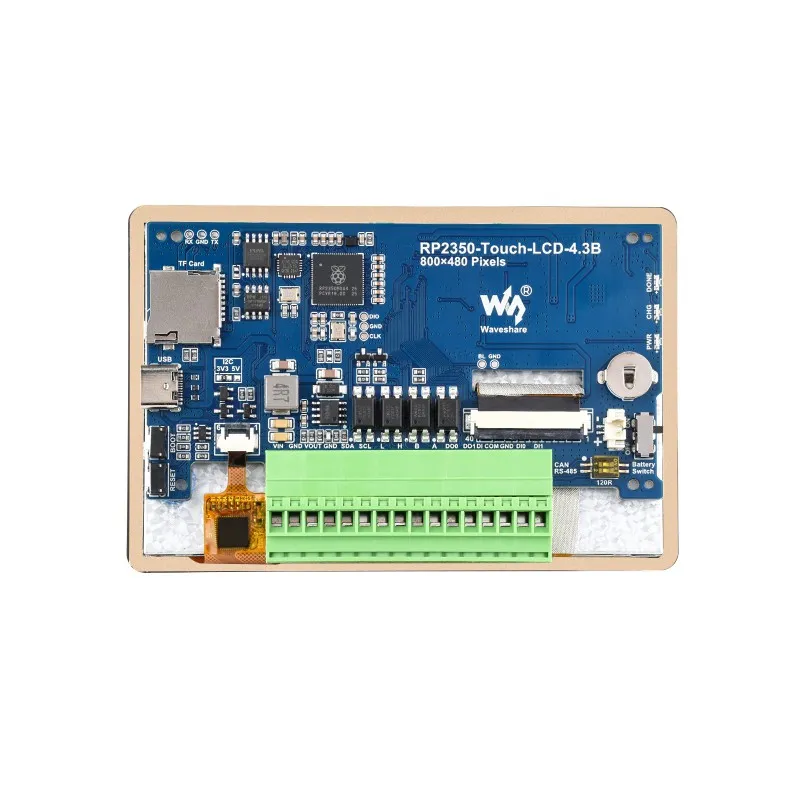

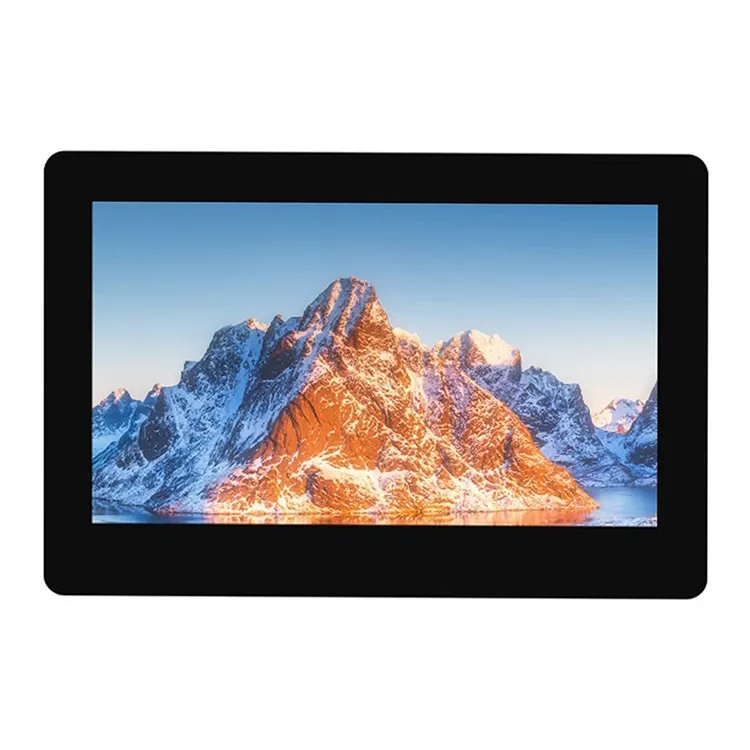

Central to the board’s design is its onboard 4.3-inch IPS LCD, delivering a clear 800 × 480 resolution with a vibrant 65K color palette. This visual interface is complemented by a responsive 5-point capacitive touch panel, ensuring intuitive and smooth user interaction. For enhanced reliability in industrial environments, the board incorporates isolated digital inputs and outputs, CAN and RS485 communication interfaces, a real-time clock (RTC) chip, a TF card slot for expanded storage, and a wide 7V–36V DC power input.
Development is streamlined through a USB Type-C port, facilitating programming and debugging with ease. The board supports multiple popular development environments, including C/C++, MicroPython, and the Arduino IDE, making it accessible for both experienced professionals and new learners. As a standard version, it is supplied without an enclosure, making it ideal for custom integrations into larger systems or bespoke housing solutions.
Additional Information
| Weight | 0.123 kg |
|---|---|
| Dimensions | 11.2 × 7.5 × 3 cm |
