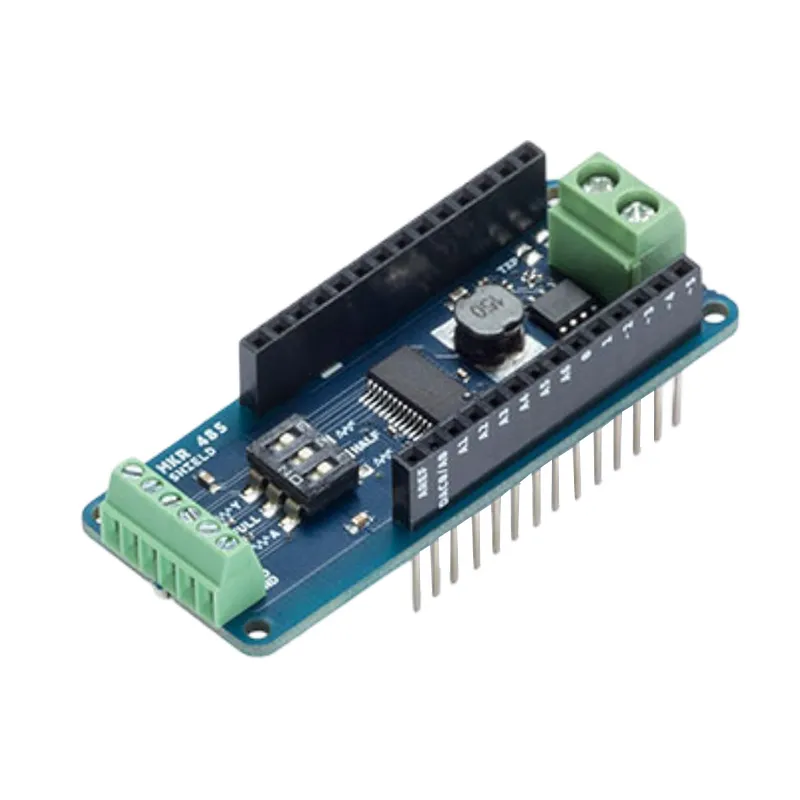

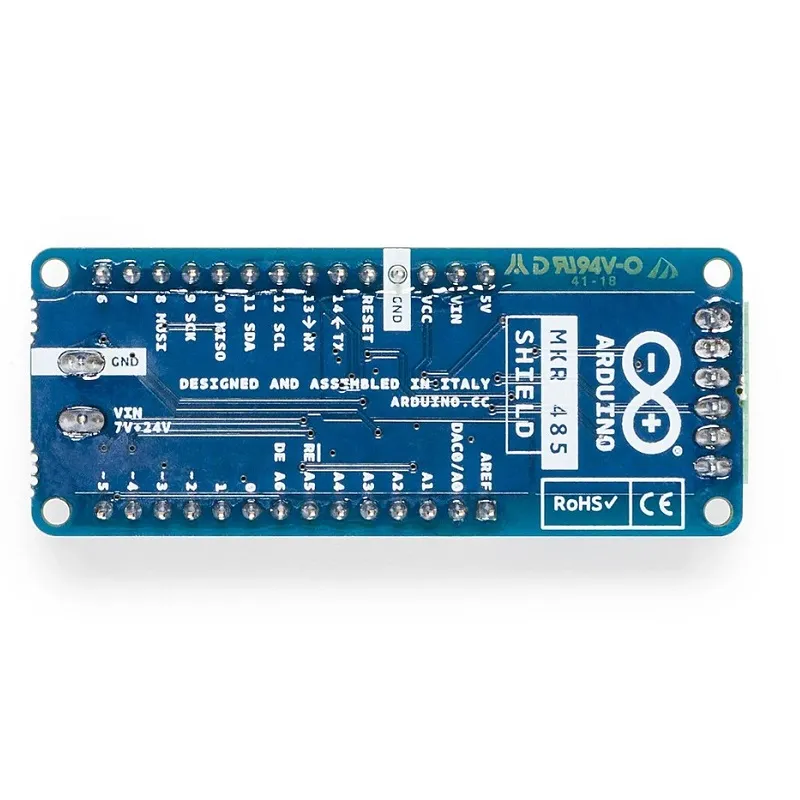

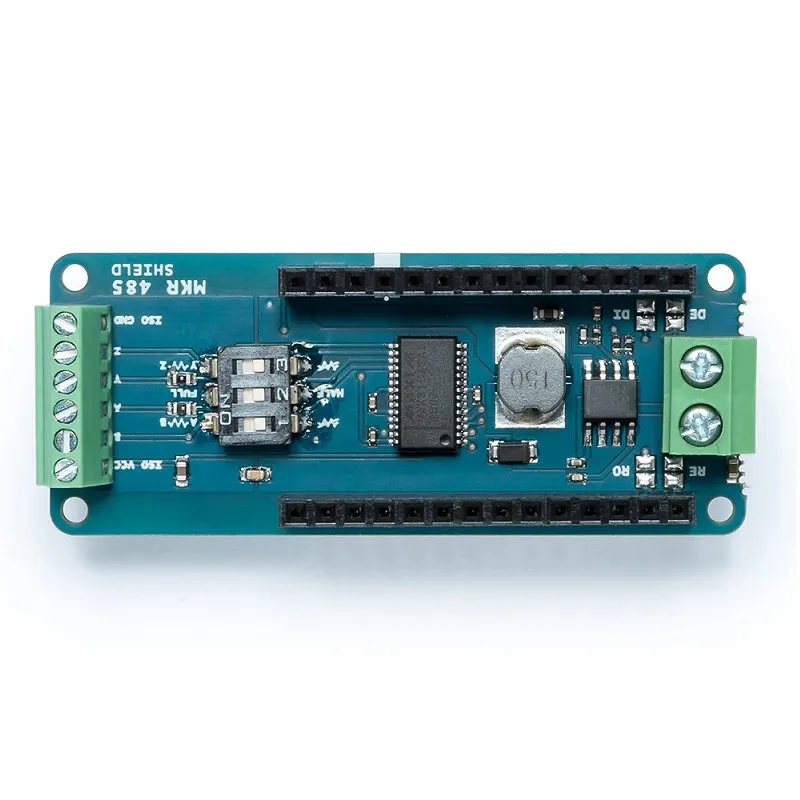

Arduino MKR 485 Shield ASX00004
The Arduino MKR 485 Shield ASX00004 expands MKR boards with industrial RS485 connectivity, enabling robust, long-range serial communication for automation and legacy system integration.
Features
- Adds industrial-grade RS485 communication capabilities to Arduino MKR boards.
- Supports both Half Duplex and Full Duplex operating modes with switchable termination.
- Features a robust MAXIM MAX3157 transceiver for reliable, isolated data transfer.
- Integrates a Texas Instruments TPS54232 buck converter for stable power management.
- Ideal for connecting MKR boards to PLCs, controllers, and industrial HMIs.
Out of stock
The Official Arduino MKR 485 Shield is specifically engineered to enable Arduino MKR series development boards to interface with industrial automation systems leveraging the RS485 protocol. This shield is also suitable for extending serial wired communication over significantly longer distances than standard UART connections, making it indispensable for robust industrial applications.
It offers comprehensive support for Half Duplex and Full Duplex communication, including options for biasing and termination, and accommodates both master and slave configurations. The MKR 485 Shield serves as a critical expansion, allowing MKR boards to seamlessly integrate with a wide array of legacy industrial systems such as PLCs, controllers, drives, and Human-Machine Interfaces (HMIs). By facilitating a serial connection via the MKR 485, older industrial assets like machinery, heating systems, and conveyor belts can be effectively transformed into IoT-enabled devices.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 8 × 6 × 2.5 cm |
