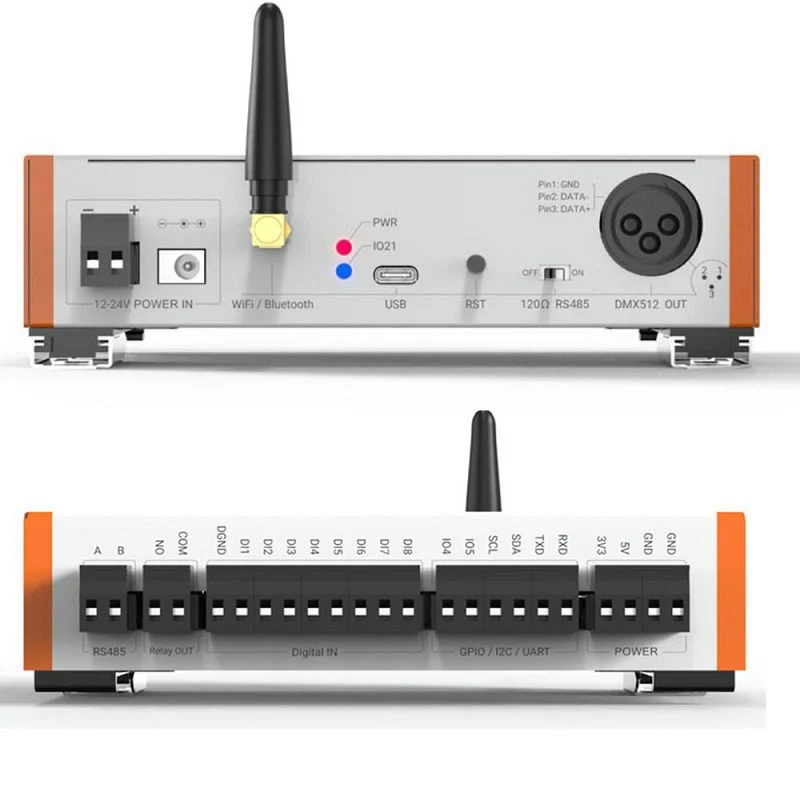

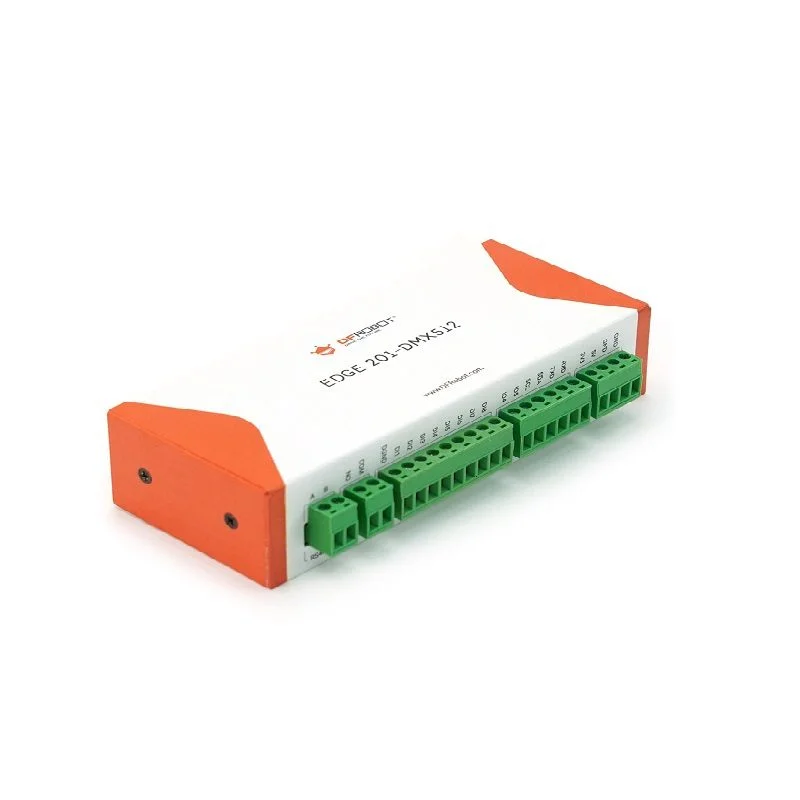

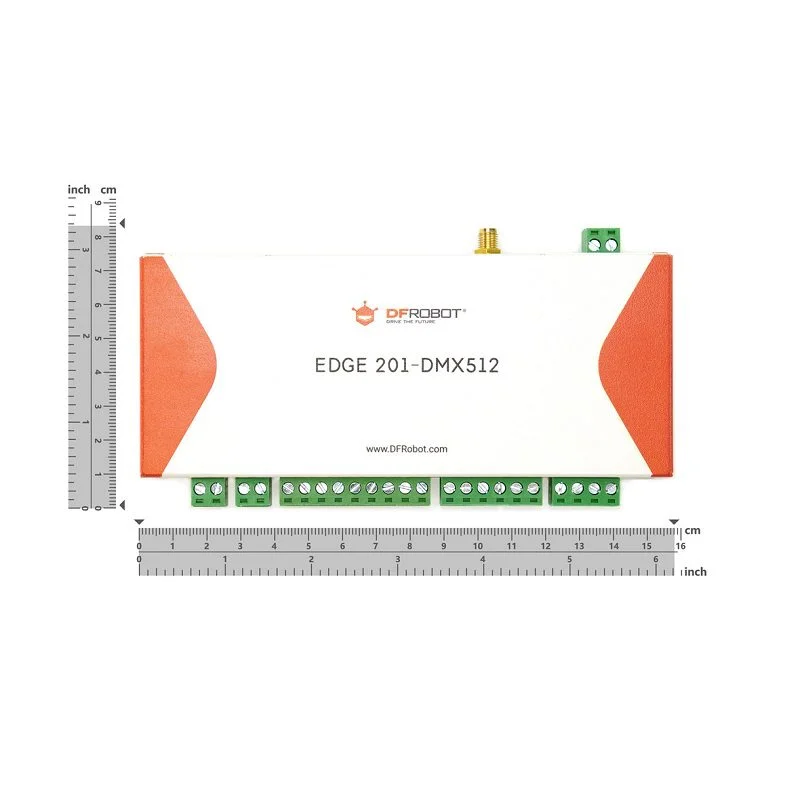

DFRobot DFR0944 ESP32-S3 DMX512 Smart Lighting Controller

The controller is programmed via the Arduino IDE using the ESP32-S3 board package, ESP-IDF, or ESPHome. Connect the USB Type-C port to your computer, select the correct COM port and board definition (e.g., ESP32-S3 Dev Module), and upload your sketch. For DMX512 functionality, you will need to include relevant libraries such as ESP-DMX.

The eight optically isolated PNP inputs allow you to safely connect sensors or switches from external, higher-voltage industrial circuits without risking damage to the sensitive ESP32-S3 core. The isolation barrier prevents electrical noise, ground loops, and voltage spikes from propagating, ensuring reliable operation in electrically noisy environments like stage rigging or factory floors.

Yes, the integrated RS485 interface can be configured through software to operate as either a DMX512 master (controller) or a slave (receiver). This flexibility allows the unit to send DMX512 data to fixtures or receive commands from a primary lighting console, enabling it to function in complex, daisy-chained lighting networks for advanced automation scenarios.

The controller requires a 12V to 24V DC power supply, connected via the terminal blocks or DC2.1 jack. Ensure the supply can deliver at least 200mA. The internal circuitry regulates this down to the required voltages for the ESP32-S3 and I/O. Do not exceed 24V DC, and use a stable, industrial-grade power source for reliable operation in permanent installations.

The dedicated RTC chip enables time-based automation triggers independent of network time. It maintains an accuracy of ±3 seconds per month. An onboard backup battery (or supercapacitor) keeps the clock running for approximately 12 hours after a main power failure, ensuring scheduled events remain accurate following temporary outages without requiring re-synchronization.
