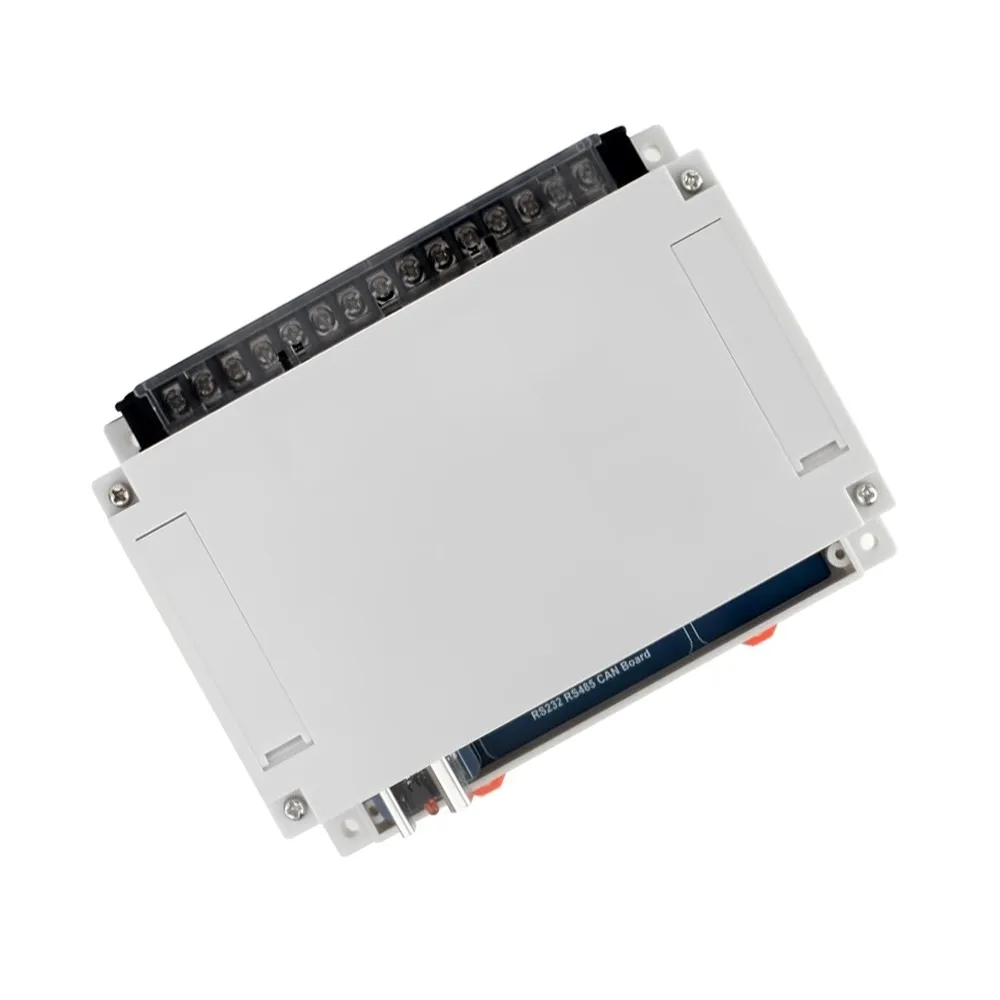

Waveshare Isolated RS232/RS485/CAN/CAN FD HAT for Raspberry Pi
The Waveshare Industrial Isolated Interface Expansion Board for Raspberry Pi 4B/5 provides comprehensive industrial communication, featuring 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, all with electrical isolation for enhanced reliability.
Features
- Expands Raspberry Pi 40-pin GPIO with 2x Isolated RS485 interfaces.
- Includes 1x Isolated RS232, 1x Isolated CAN, and 1x Isolated CAN FD interfaces.
- Onboard lightning protection and anti-electrostatic safeguards for robust operation.

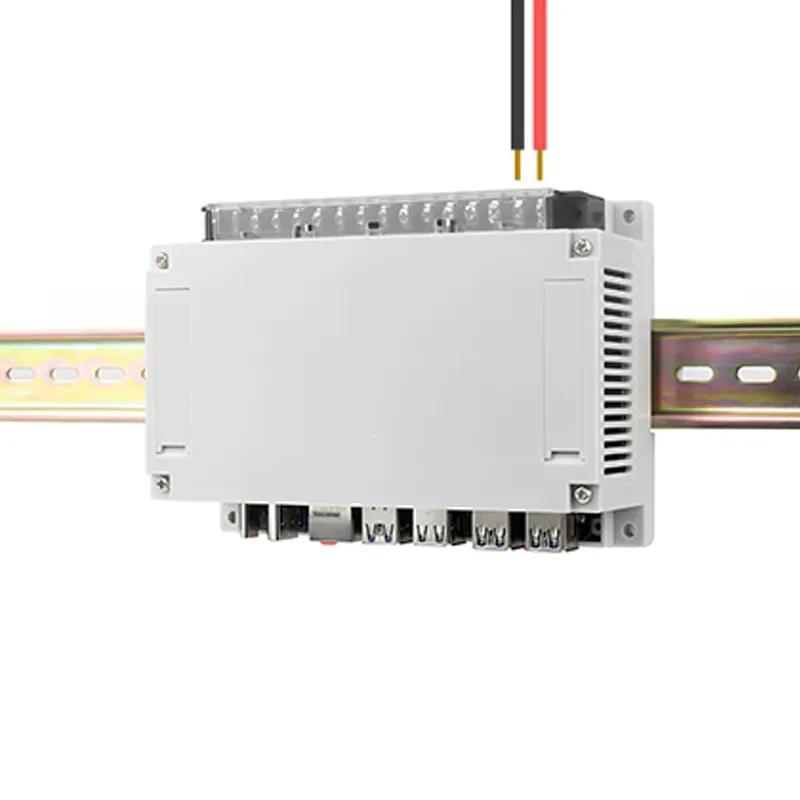

- Supplied with an industrial rail-mount enclosure for easy integration.
- Compatible with Raspberry Pi 4B and Raspberry Pi 5, supporting additional HAT stacking.
Out of stock
This Waveshare Industrial Isolated Interface Expansion Board is engineered to augment Raspberry Pi 4B and Raspberry Pi 5 with a suite of critical industrial communication protocols. It offers 2x RS485 ports, 1x RS232 port, 1x CAN FD port, and 1x CAN port, each fully electrically isolated to prevent ground loops and protect against voltage spikes, ensuring secure and reliable data transfer in demanding environments.

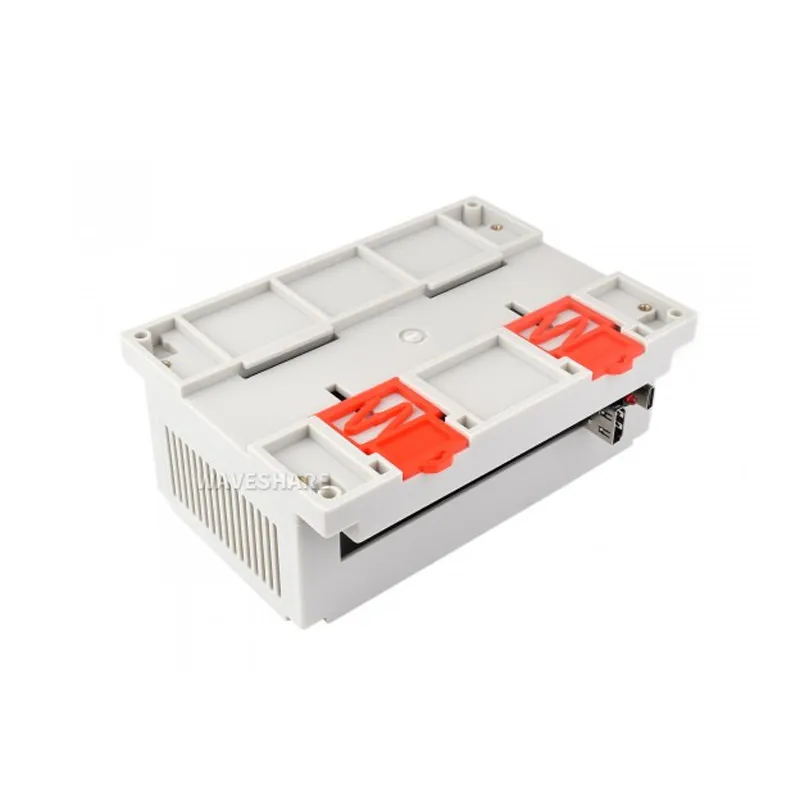

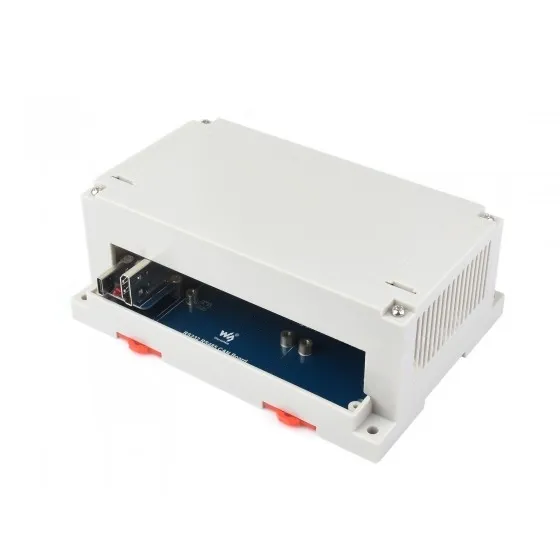

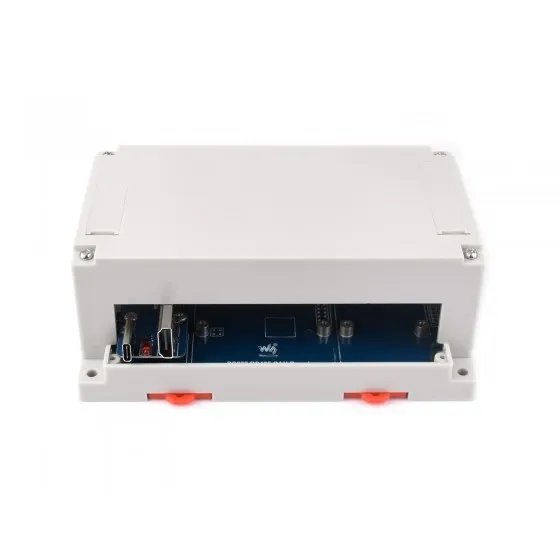

Designed for industrial integration, the board incorporates essential protections against lightning strikes and electrostatic discharge. It comes with a robust industrial rail-mount enclosure, providing ample internal space for stacking other Raspberry Pi HATs or expansion boards. Furthermore, it reserves installation space for a PCIe adapter board specifically for Raspberry Pi 5, facilitating seamless future expansion into high-speed peripherals and networking.
Additional Information
| Weight | 0.46 kg |
|---|---|
| Dimensions | 25 × 18 × 8 cm |
