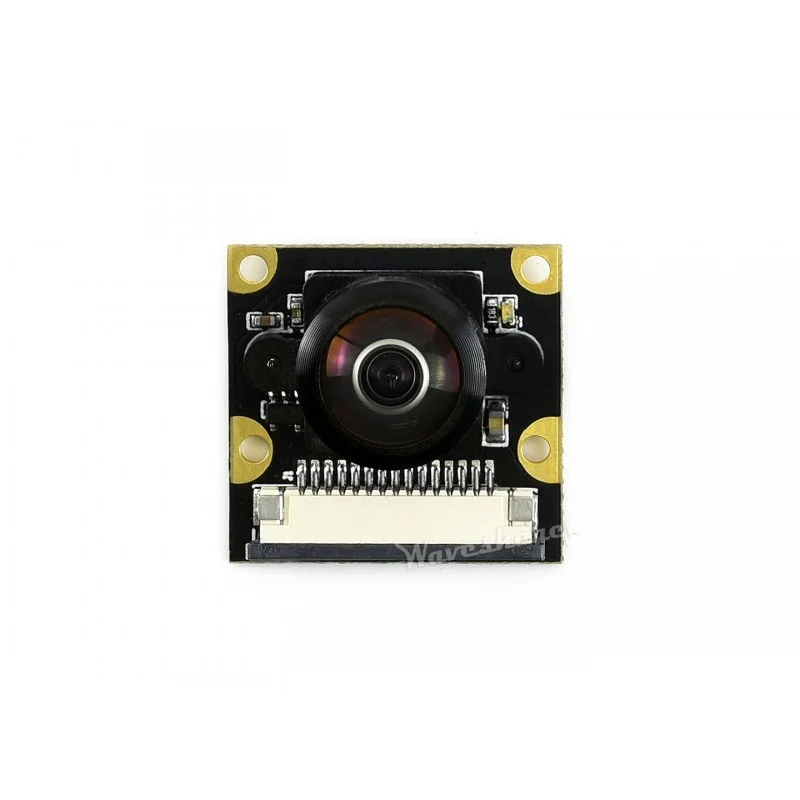

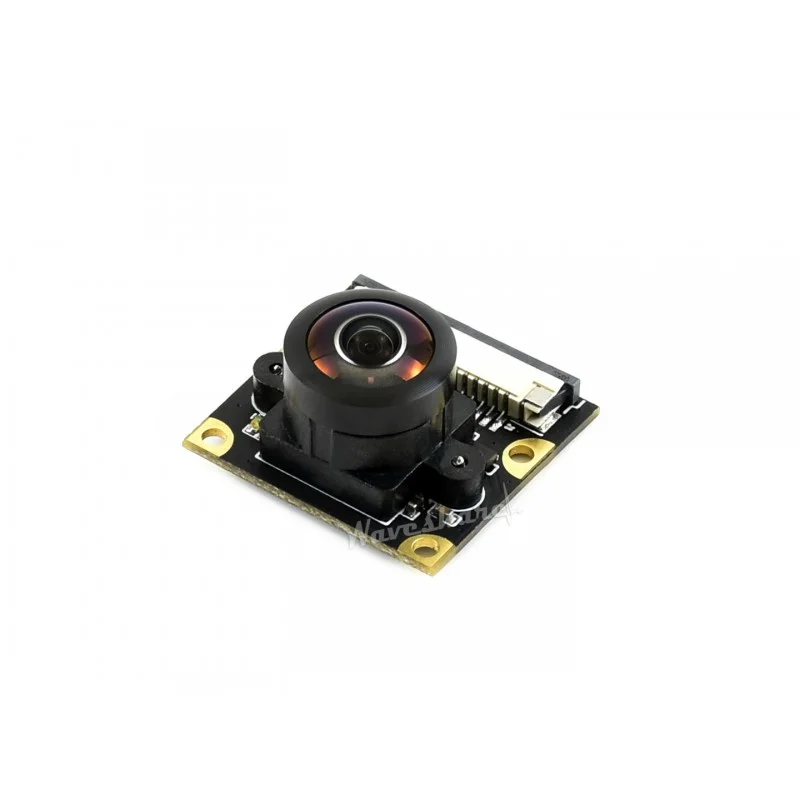

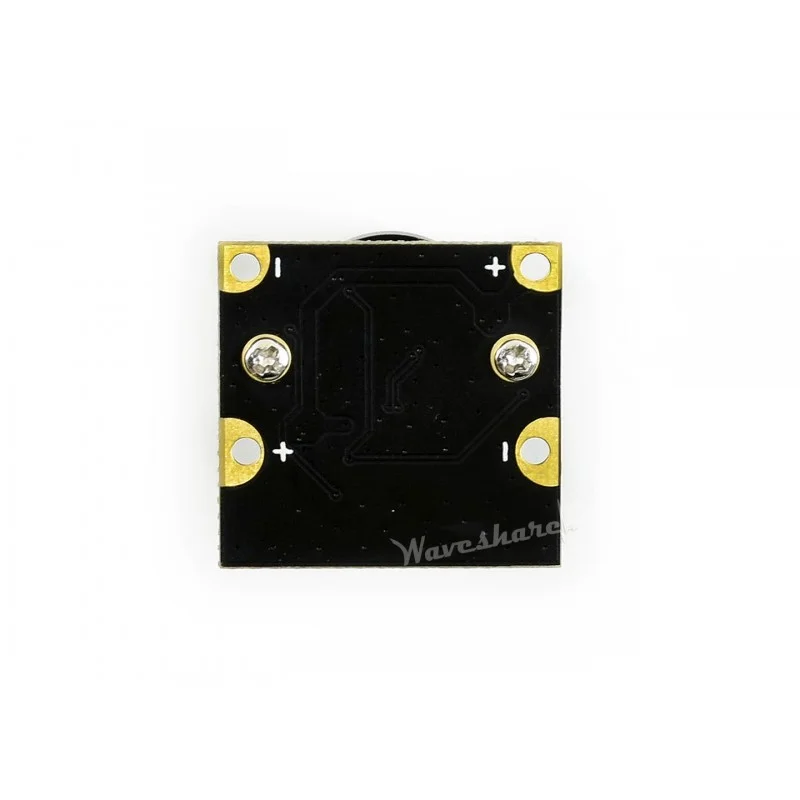

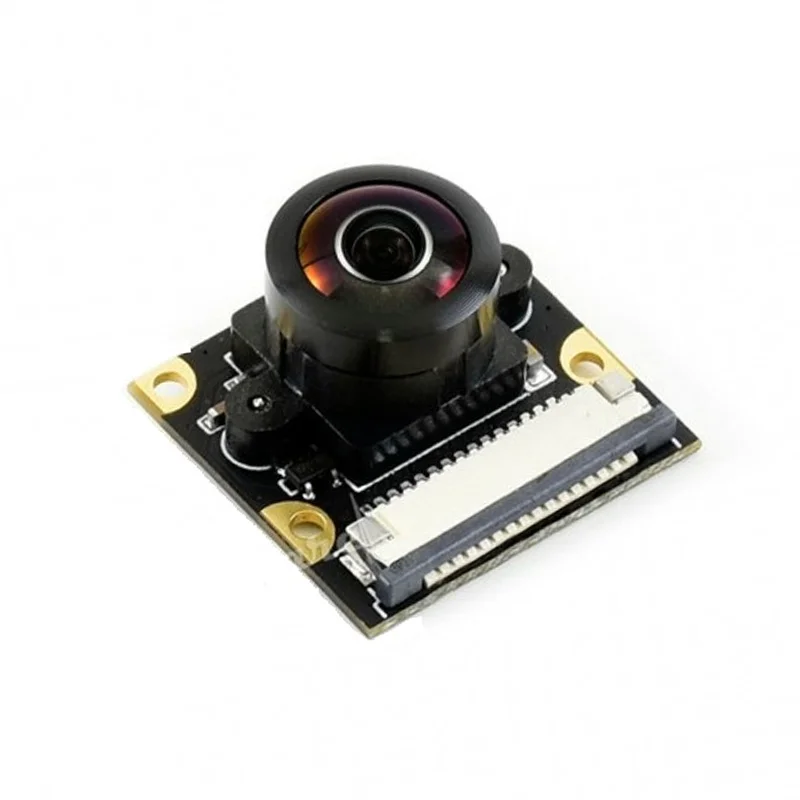

Waveshare IMX219-200 Camera Module, 200° FOV, for Jetson Nano
The Waveshare IMX219-200 Camera is an 8MP wide-angle vision sensor module featuring a 200-degree field of view, designed for direct integration with NVIDIA Jetson Nano development kits and compatible with Raspberry Pi Compute Module boards for IoT and edge AI applications.
Features
- 8MP Sony IMX219 sensor delivers 3280 x 2464 resolution for detailed image capture.
- Ultra-wide 200° diagonal field of view minimizes blind spots in surveillance and robotics.
- Direct 15-pin FFC connector for plug-and-play compatibility with Jetson Nano and Raspberry Pi CM3/CM3+.
- Compact form factor with 3.3V operation, ideal for space-constrained embedded vision projects.

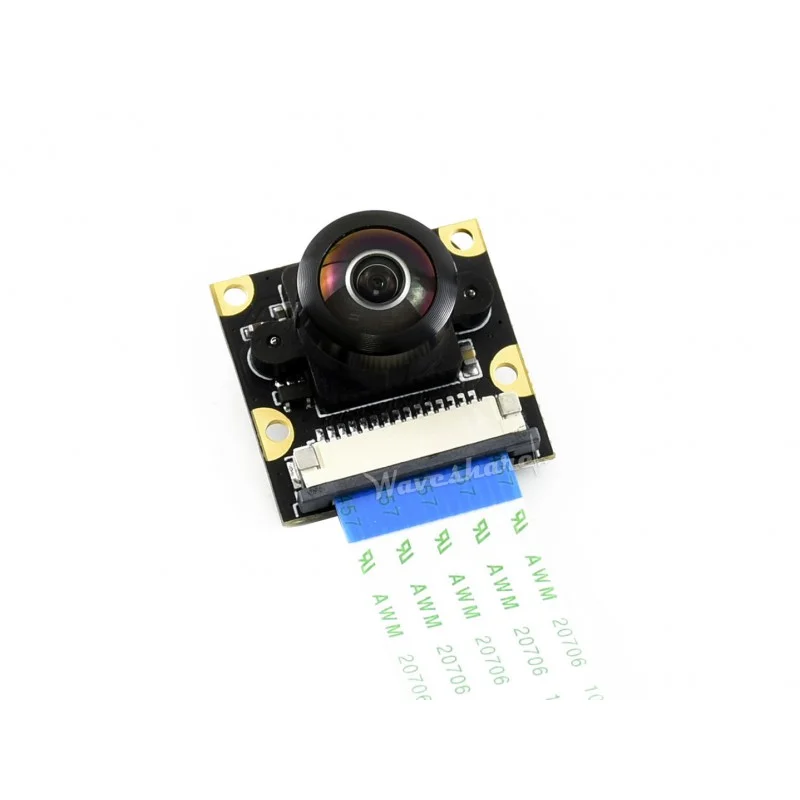

- Includes a 15-pin FFC cable (opposite sides contact) for immediate system integration.
Out of stock
The Waveshare IMX219-200 Camera Module integrates the Sony IMX219 CMOS sensor into a compact, ready-to-deploy package tailored for AI edge computing platforms. Its 200-degree ultra-wide-angle lens provides extensive scene coverage, making it suitable for applications requiring broad environmental awareness without multiple sensors. The module operates at a standard 3.3V supply, drawing minimal power for always-on vision systems.

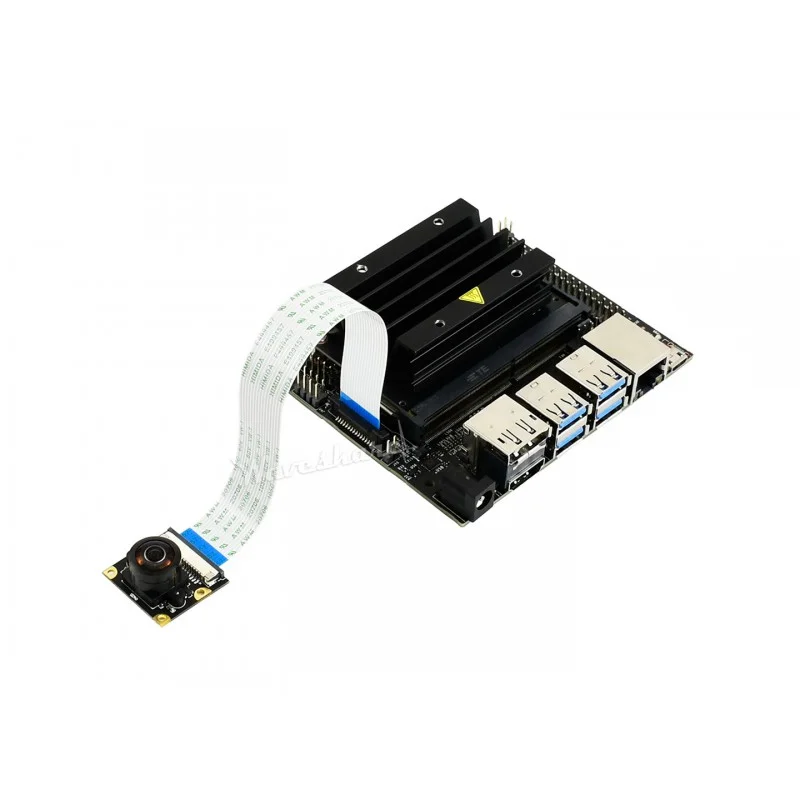

Designed for developer convenience, it connects directly to the camera interface on the NVIDIA Jetson Nano via a supplied 15-pin flat flex cable (FFC). This plug-and-play compatibility extends to Raspberry Pi Compute Module expansion boards, enabling rapid prototyping for computer vision, machine learning inference, and real-time video analytics projects within the IoT and robotics domains.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 5 × 11 × 2.1 cm |
