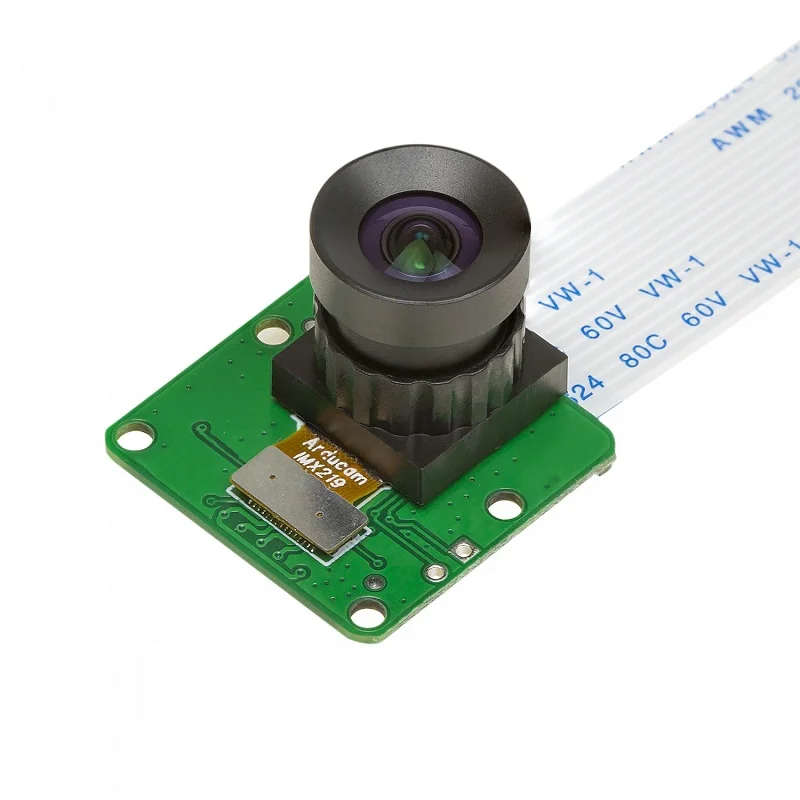

Arducam IMX219 Low Distortion M12 Mount Camera for Jetson Nano, Raspberry Pi Compute
Arducam IMX219 Low Distortion M12 Mount Camera integrates a Sony 8MP sensor for high-resolution imaging on Jetson Nano and Raspberry Pi Compute Module platforms, delivering up to 30fps at full resolution via a 2-lane MIPI CSI-2 interface.
Features
- Sony 8MP IMX219 sensor with 1/4-inch optical format for high-quality, low-distortion imaging.
- Supports 30fps at 8MP, 60fps at 1080p, and 180fps at 720p for versatile frame rate requirements.
- M12 lens mount with 2.8mm focal length and 75° horizontal FOV for flexible lens interchangeability.
- MIPI CSI-2 2-lane interface ensures high-speed data transfer compatible with Jetson Nano and Raspberry Pi Compute Modules.
- Integral IR filter for visible light sensitivity, ideal for computer vision and robotics applications.
Out of stock
The Arducam IMX219 Low Distortion M12 Mount Camera is a specialized imaging module designed for embedded vision systems on NVIDIA Jetson Nano and Raspberry Pi Compute Module platforms. It features a Sony 8-megapixel IMX219 sensor paired with a low-distortion M12 lens mount, providing developers with a high-resolution, interchangeable lens solution for demanding computer vision tasks.
With a 2-lane MIPI CSI-2 interface, the module delivers high-bandwidth video streams, supporting up to 30 frames per second at its native 8MP resolution. The integrated IR filter ensures accurate color reproduction under visible light, making it suitable for applications ranging from autonomous robotics to intelligent video analytics where precise image fidelity is critical.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 3.6 × 3.6 cm |
