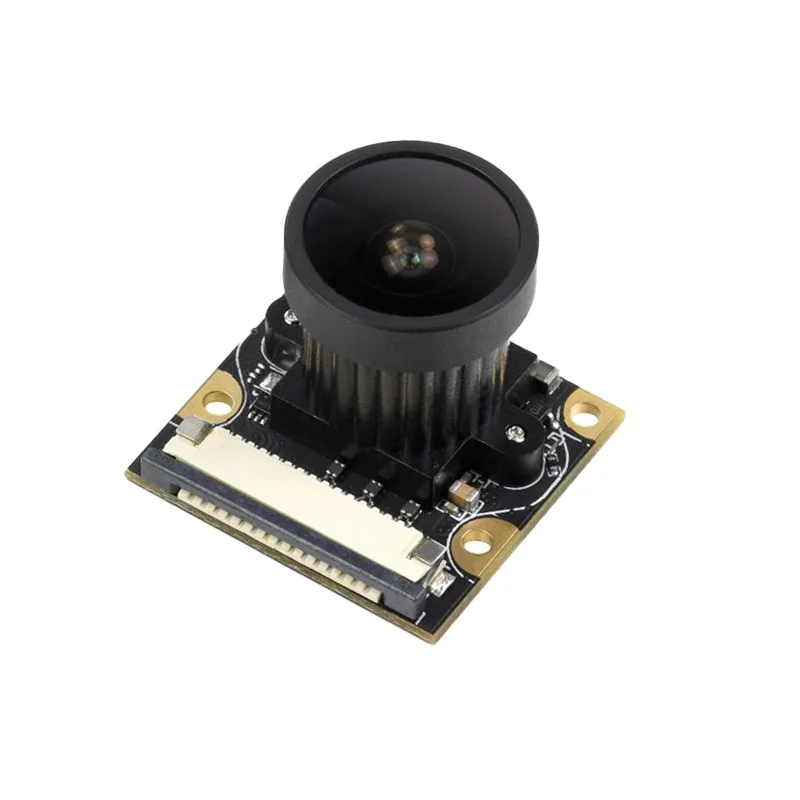

Waveshare IMX477-160 12.3MP Camera, 160° FOV, for Jetson Nano/Compute Module
The Waveshare IMX477-160 is a 12.3MP MIPI-CSI camera module based on the Sony IMX477 sensor, designed for high-resolution computer vision applications on NVIDIA Jetson Nano and Raspberry Pi Compute Module platforms.
Features
- 12.3MP Sony IMX477 Sensor: Delivers high-resolution 4056 x 3040 pixel images with a 1.55µm pixel size for superior detail capture in AI vision tasks.
- Wide 160° Field of View: Provides an expansive viewing angle, ideal for surveillance, robotics, and environmental monitoring applications.
- MIPI-CSI Interface: Ensures high-speed data transfer directly compatible with Jetson Nano and Raspberry Pi Compute Module development kits.
- Standard C/CS-Mount Lens Support: Offers flexibility to attach various industrial-grade lenses (6mm, 16mm available) for customized focal lengths and apertures.
- 3.3V Low-Power Operation: Enables integration into portable and battery-powered IoT edge devices and AI inference systems.
Out of stock
The Waveshare IMX477-160 camera module is engineered for developers and system integrators requiring high-fidelity imaging for machine learning and computer vision. Its core is the Sony IMX477 back-illuminated CMOS sensor, which provides excellent low-light sensitivity and a high dynamic range, crucial for accurate object detection, facial recognition, and autonomous navigation algorithms.
Designed with a native MIPI-CSI-2 serial interface, it plugs directly into the camera connector on NVIDIA Jetson Nano developer kits and Raspberry Pi Compute Module IO boards, offering a streamlined hardware integration path. The module’s lack of a permanently attached lens is a strategic feature, allowing the use of standard C-mount or CS-mount optics to tailor the field of view, focal length, and depth of field for specific applications, from macro inspection to wide-area surveillance.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
