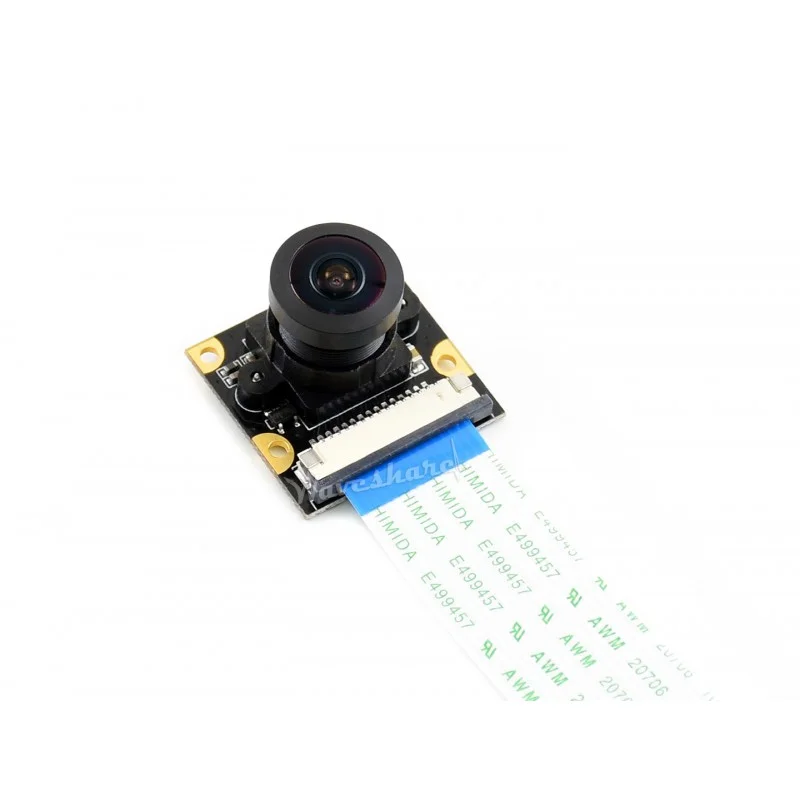

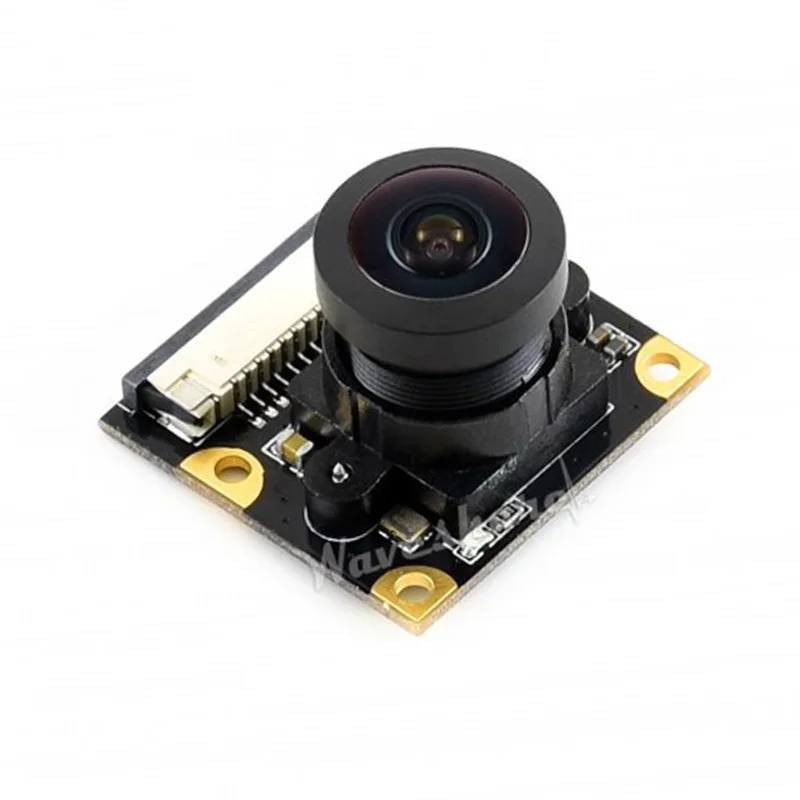

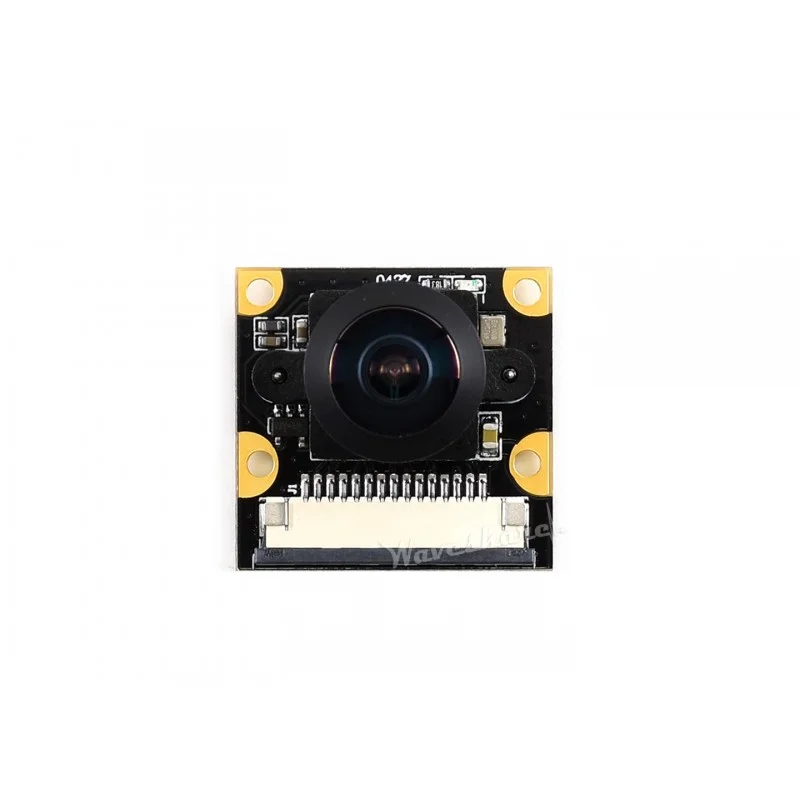

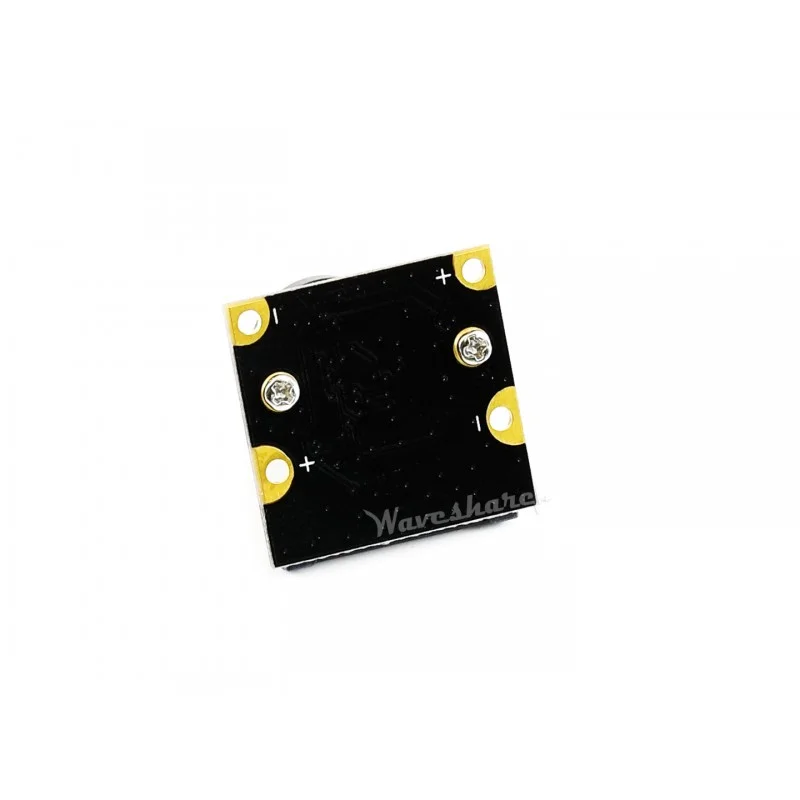

Waveshare IMX219-160 Camera Module, 8MP, 160° FOV for Jetson Nano
The Waveshare IMX219-160 Camera Module is an 8-megapixel, 160-degree wide-angle vision sensor designed for AI and computer vision applications on NVIDIA Jetson Nano, Jetson Xavier NX, and Raspberry Pi Compute Module platforms.
Features
- 8MP IMX219 Sensor: Delivers high-resolution 3280 x 2464 images for detailed AI inference and edge vision processing.
- Ultra-Wide 160° FOV: Captures expansive scenes, ideal for surveillance, robotics, and environmental monitoring applications.

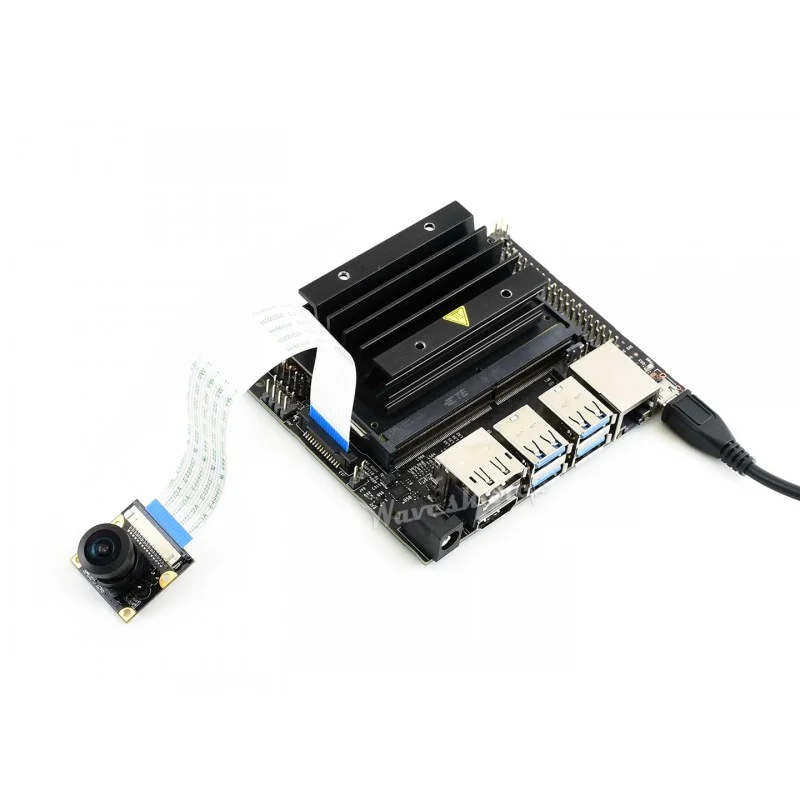

- Jetson Nano & CM3/4 Compatible: Plug-and-play connectivity for NVIDIA Jetson Nano, Jetson Xavier NX, and Raspberry Pi Compute Module 3/3+/4.
- Compact & Lightweight Design: Measures just 25mm x 24mm and weighs 15g for easy integration into embedded systems and drones.
- 3.3V Power Supply: Low-voltage operation simplifies power design for portable and battery-powered AIoT devices.
Out of stock
The Waveshare IMX219-160 Camera Module integrates a Sony IMX219 CMOS sensor into a compact, developer-friendly form factor. It provides a native 8-megapixel resolution with a wide 160-degree field of view, making it suitable for AI projects requiring broad scene capture, such as face recognition, object detection, and autonomous navigation. The module connects directly to the CSI-2 camera interface on supported single-board computers.
Engineered for low-power edge AI, the module operates on a 3.3V supply and is pre-configured for plug-and-play use with NVIDIA’s JetPack SDK and Raspberry Pi OS. Its fixed-focus lens with an f/2.35 aperture ensures good low-light performance, while the mechanical design includes mounting holes for secure installation in robotics, smart city infrastructure, or industrial inspection systems.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 2.5 × 2.4 cm |
