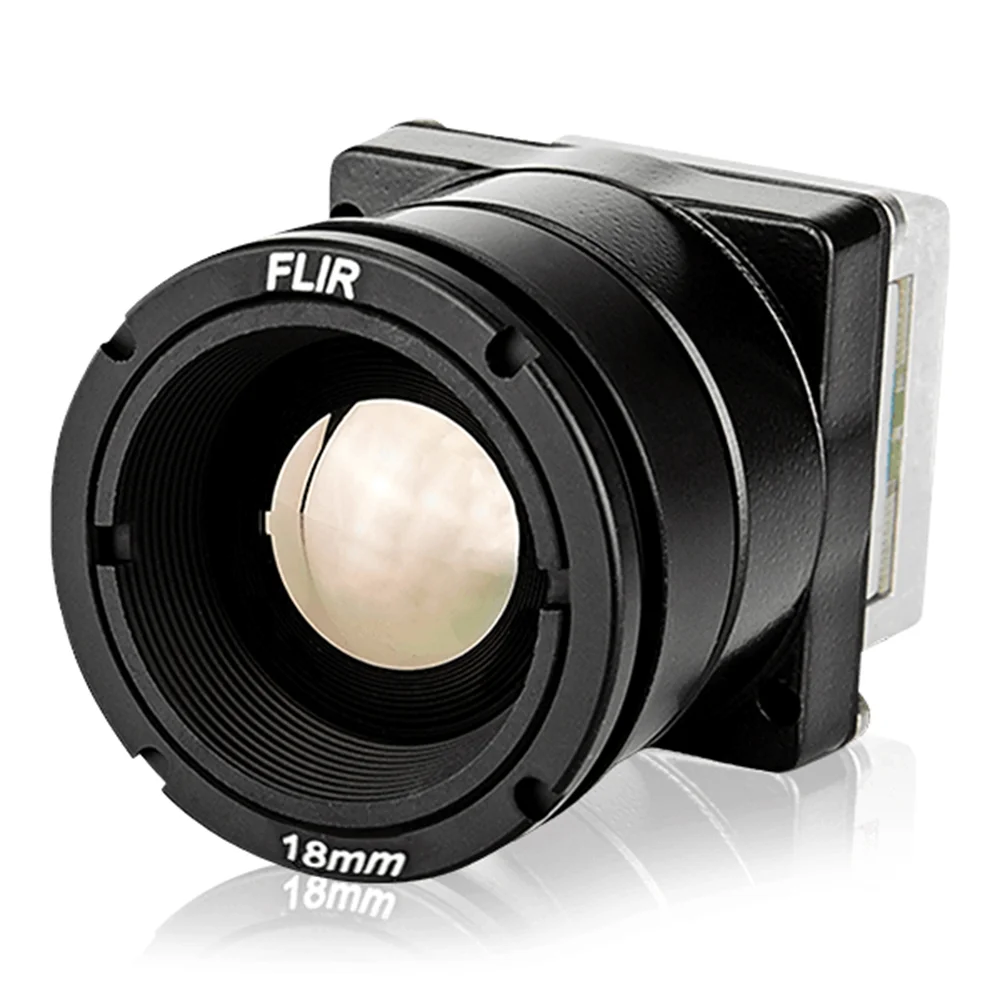

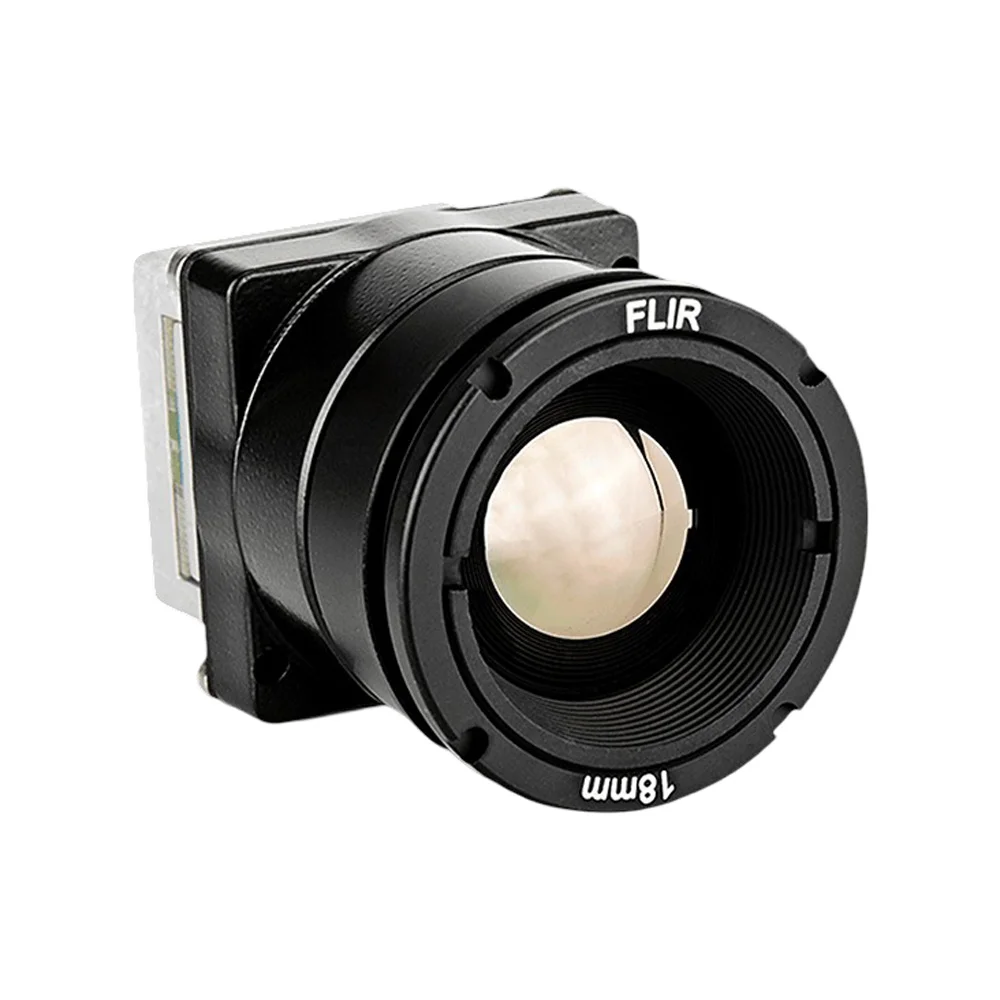

Teledyne Teledyne FLIR Boson 20320A012-6CAAX Thermal Camera Module, 320×256 LWIR, 12° HFOV, 18mm Lens, 60Hz
The Teledyne Teledyne FLIR Boson 20320A012-6CAAX is a high-performance LWIR thermal imaging core module featuring a 320×256 resolution sensor, 12° HFOV with an 18mm lens, and a 60Hz frame rate. Designed for OEM integration, it supports USB, CMOS, and UART interfaces and operates from -40°C to 80°C for demanding industrial, drone, and security applications.
Features
- High-resolution 320×256 LWIR thermal sensor with 12 µm pixel pitch for accurate temperature detection and sharp imaging.
- 12° horizontal field of view with an 18mm lens provides focused, long-range thermal observation capabilities.
- 60 Hz high frame rate ensures smooth, real-time video output suitable for dynamic monitoring and tracking applications.
- Low power consumption, operating from a 3.3V supply with power draw as low as 500mW for portable and battery-powered systems.
- Ruggedized design with an extended operating temperature range of -40°C to 80°C for reliable performance in harsh environments.
Out of stock
The Teledyne Teledyne FLIR Boson 20320A012-6CAAX is a professional-grade long-wave infrared (LWIR) thermal camera core engineered for seamless OEM integration. It captures thermal imagery within the 8–14 µm spectral band, delivering a 320×256 resolution with high thermal sensitivity for precise temperature differential analysis. The integrated 18mm lens with a 12° horizontal field of view optimizes the module for mid-to-long-range imaging scenarios.
Built for robust performance, the module supports multiple control and data interfaces including USB 2.0 for direct streaming, CMOS for digital video output, and a UART serial port for configuration and command control. Its compact 21x21mm form factor and minimal weight (7.5g) make it ideal for space-constrained and mobile platforms like drones, robotics, and handheld devices. The core is backed by Teledyne FLIR’s comprehensive software development kit (SDK) and GUI tools, enabling rapid firmware development and system integration for thermal vision applications.
Additional Information
| Weight | 0.0075 kg |
|---|---|
| Dimensions | 2.1 × 2.1 cm |
