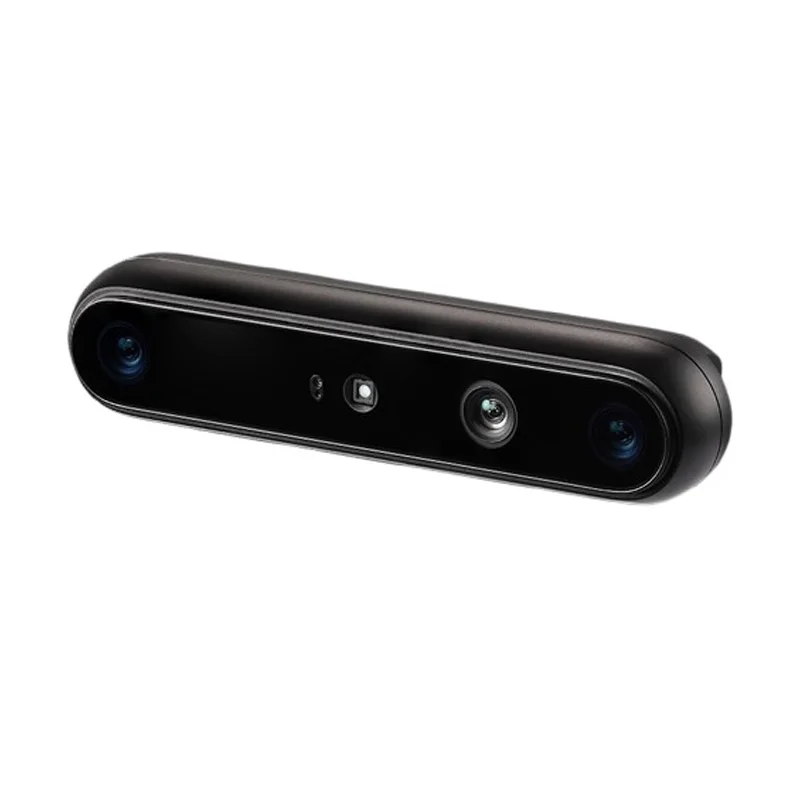

Orbbec Gemini 335L Active Stereo 3D Depth Camera
The Orbbec Gemini 335L is an active stereo 3D camera delivering high-fidelity depth data at up to 1280×800 resolution and 60 fps, designed for robotics and computer vision applications with USB-C connectivity and integrated IMU.
Features
- Active Stereo IR depth sensing with 850nm wavelength for robust indoor/outdoor operation.
- High-resolution depth output at 1280 x 800 pixels and up to 60 frames per second.
- Integrated 6-DoF IMU (Gyroscope/Accelerometer) and multi-camera synchronization support.
- USB Type-C interface for streamlined power and data transfer, with average power under 3W.
- Wide 101° diagonal field of view (90°H x 65°V) for comprehensive scene coverage.
Out of stock
The Orbbec Gemini 335L 3D Camera leverages a custom ASIC to perform on-board depth image computation and depth-to-color spatial alignment, minimizing system latency and eliminating the need for external, power-intensive processing units. Its active stereo IR technology, combined with a global shutter for IR and rolling shutter for color, ensures reliable and accurate depth data acquisition across diverse lighting conditions, from complete darkness to bright sunlight.
Engineered for scalable deployment, the camera features a programmable architecture for various depth operating modes and a flexible frame synchronization mechanism, simplifying multi-camera setups. With IP5X protection and a compact form factor, it is built for integration into demanding environments, supported by the comprehensive Orbbec SDK for rapid development and deployment in robotics, automation, and spatial computing applications.
Additional Information
| Weight | 0.518 kg |
|---|---|
| Dimensions | 12.4 × 2.9 cm |
