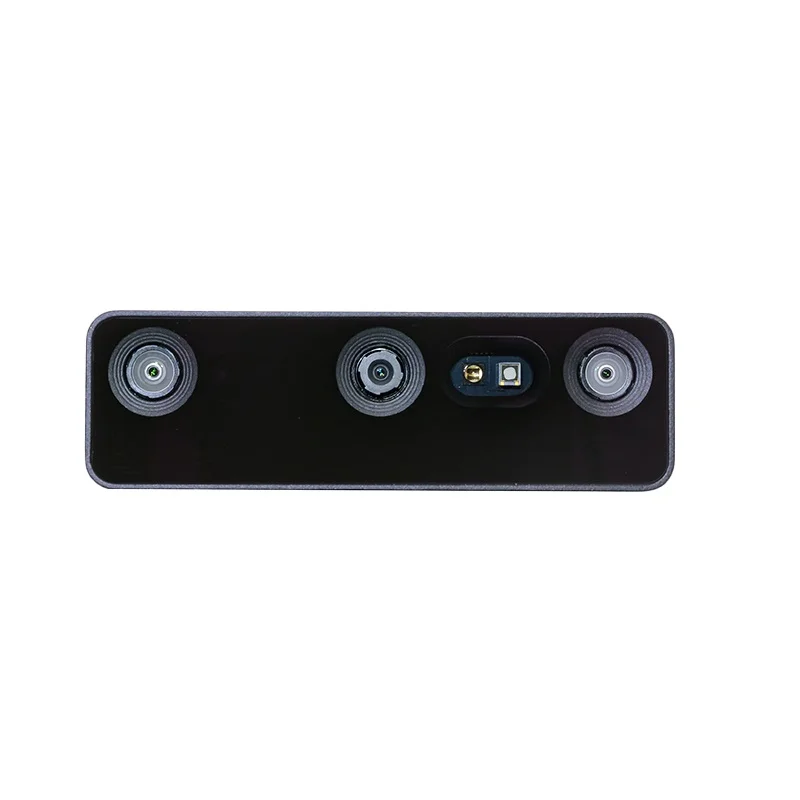

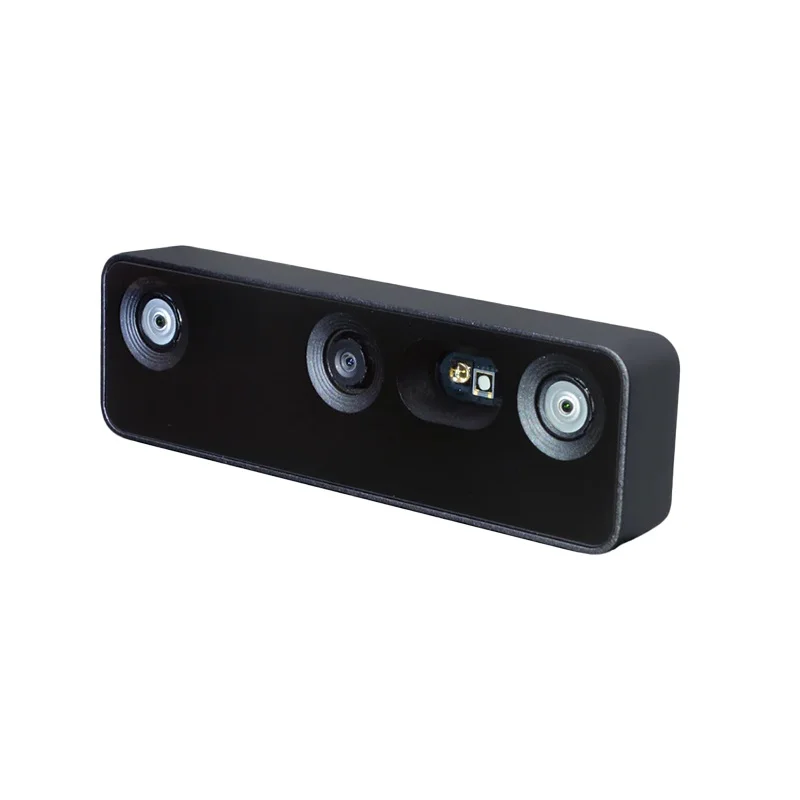

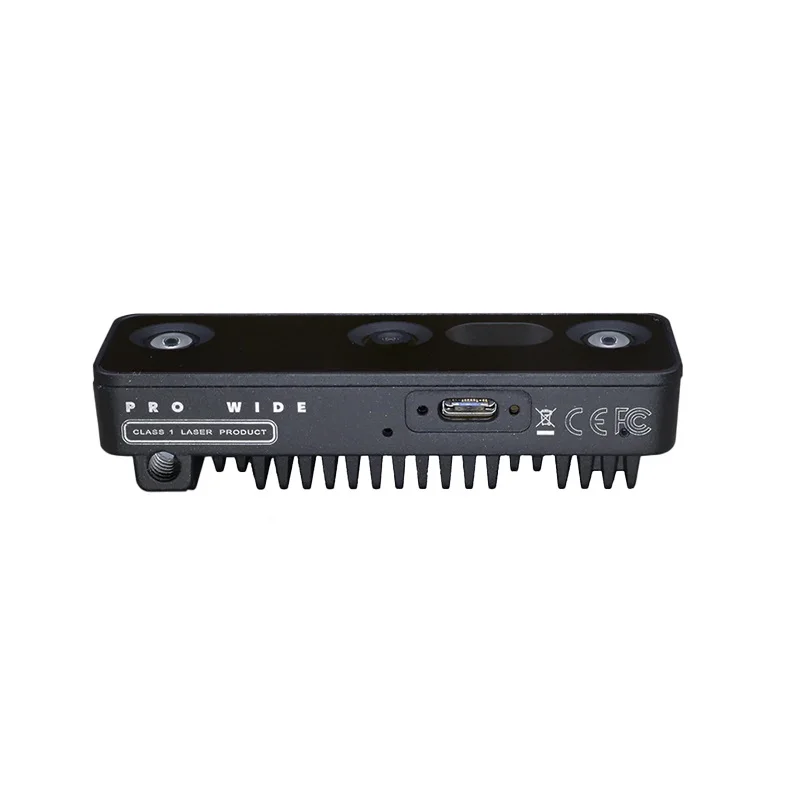

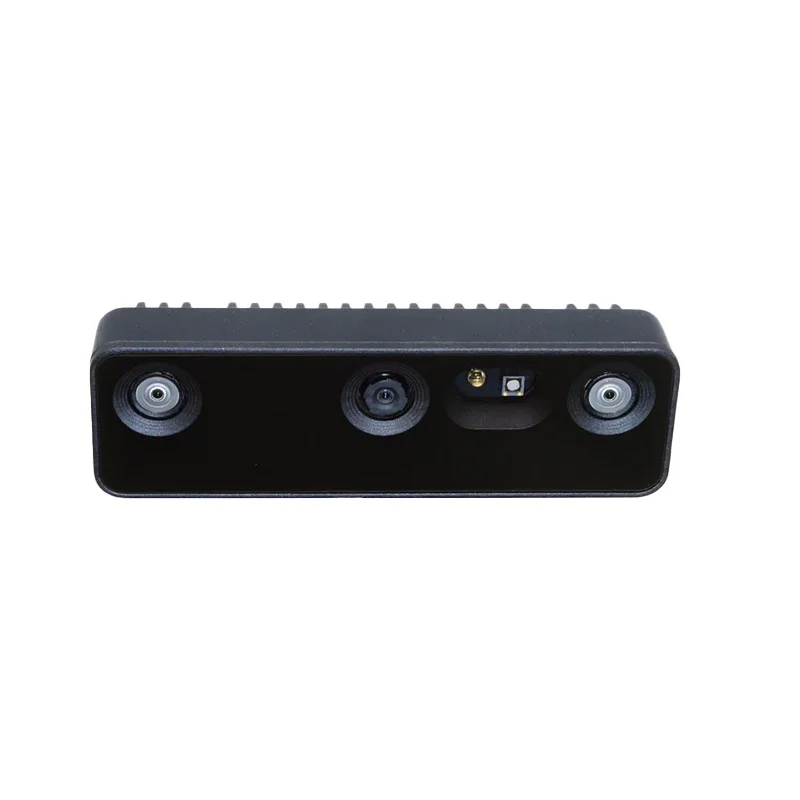

Luxonis OAK-D Pro W AI Stereo Depth Camera w/ IMX378
The Luxonis OAK-D Pro W is an AI-enabled stereo depth camera featuring a wide-FOV IMX378 RGB sensor, active IR stereo depth with a dot projector, and onboard 4 TOPS neural inference for robotic vision, SLAM, and industrial perception.
Features
- Active Stereo Depth with IR Projector: Integrates an Ams Belago 1.1 IR dot projector and IR LEDs for robust depth sensing in low-texture or low-light environments, with an ideal range of 40 cm to 6 meters.
- Onboard AI & CV Processing: Features 4 TOPS total compute (1.4 TOPS dedicated to AI) for running custom or pre-trained neural networks directly on the camera, offloading host CPU.
- Wide-FOV High-Res Imaging: Equipped with a 1/2.3” IMX378 sensor providing 12MP (4056×3040) RGB capture at up to 60 FPS and a 150° FOV stereo pair for comprehensive scene perception.
- Rugged Industrial Design: Housed in an IP66-rated aluminum enclosure with Gorilla Glass, featuring 1/4” tripod and VESA mounting points for reliable deployment in demanding applications.
- Unified USB-C Interface: Uses a single USB 3.2 Gen1 (5 Gbps) USB-C port for both data and power (2.5W–7.5W), simplifying system integration with included Y-adapter for auxiliary 5V power.
Out of stock
The Luxonis OAK-D Pro W is a professional-grade, AI-accelerated depth perception camera engineered for autonomous robotics and industrial machine vision. Its core architecture combines a high-resolution IMX378 color sensor with a wide-baseline (75mm) stereo pair and an active IR dot projector (Ams Belago 1.1), enabling precise depth mapping even in challenging, texture-less, or poorly lit environments where passive stereo systems fail.
Beyond raw sensor data, the module incorporates a dedicated Myriad X VPU delivering 4 TOPS of processing power, with 1.4 TOPS allocated for neural network inference. This allows for real-time execution of object detection, semantic segmentation, or feature tracking pipelines directly on the camera, drastically reducing latency and host system load. The device supports a full suite of computer vision functions including encoding (H.264/H.265/MJPEG), image warping, and optical flow.
Built for robustness, the OAK-D Pro W features an IP66-rated aluminum housing, Gorilla Glass lens protection, and integrated mounting options. Power and data are streamlined through a single USB 3.2 Gen1 Type-C connection, with an included Y-adapter ensuring stable operation under high computational loads. This makes it an ideal embedded vision solution for SLAM, 3D mapping, logistics automation, and outdoor robotic navigation.
Additional Information
| Weight | 0.226 kg |
|---|---|
| Dimensions | 15 × 7.5 × 3.5 cm |
