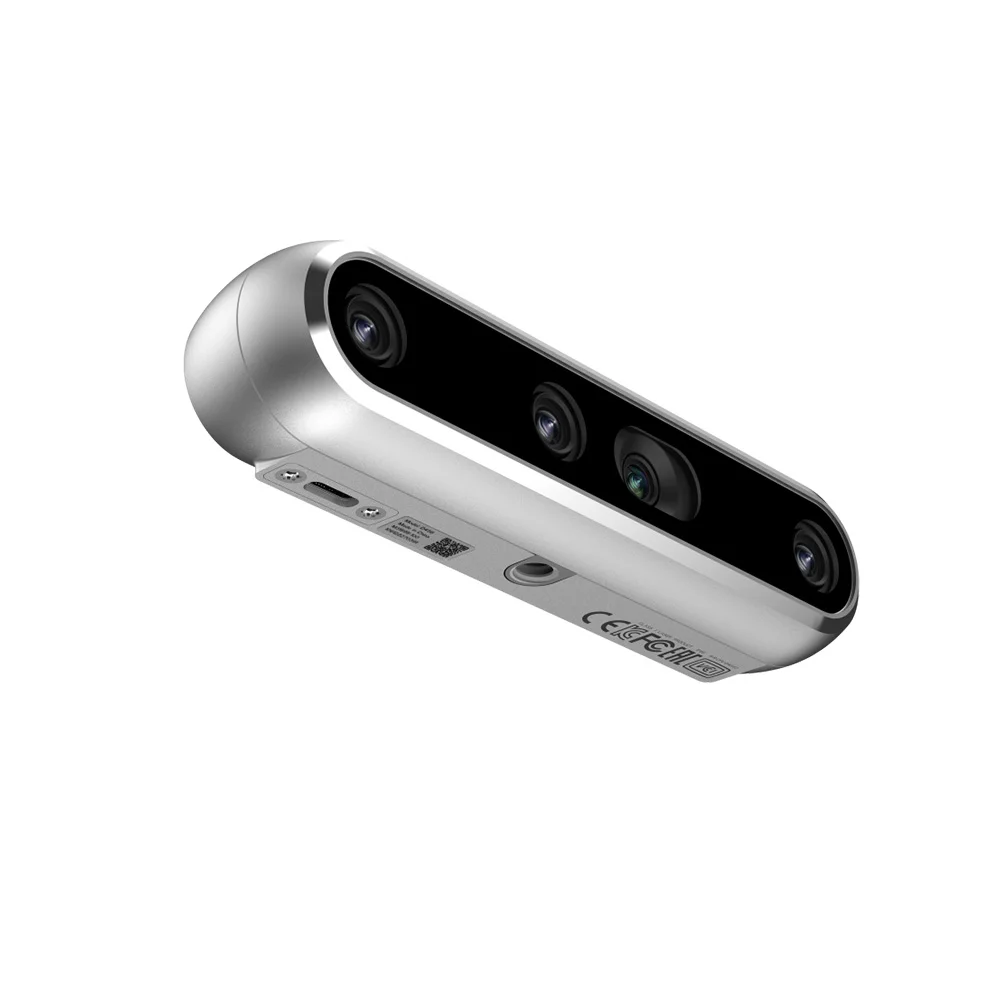

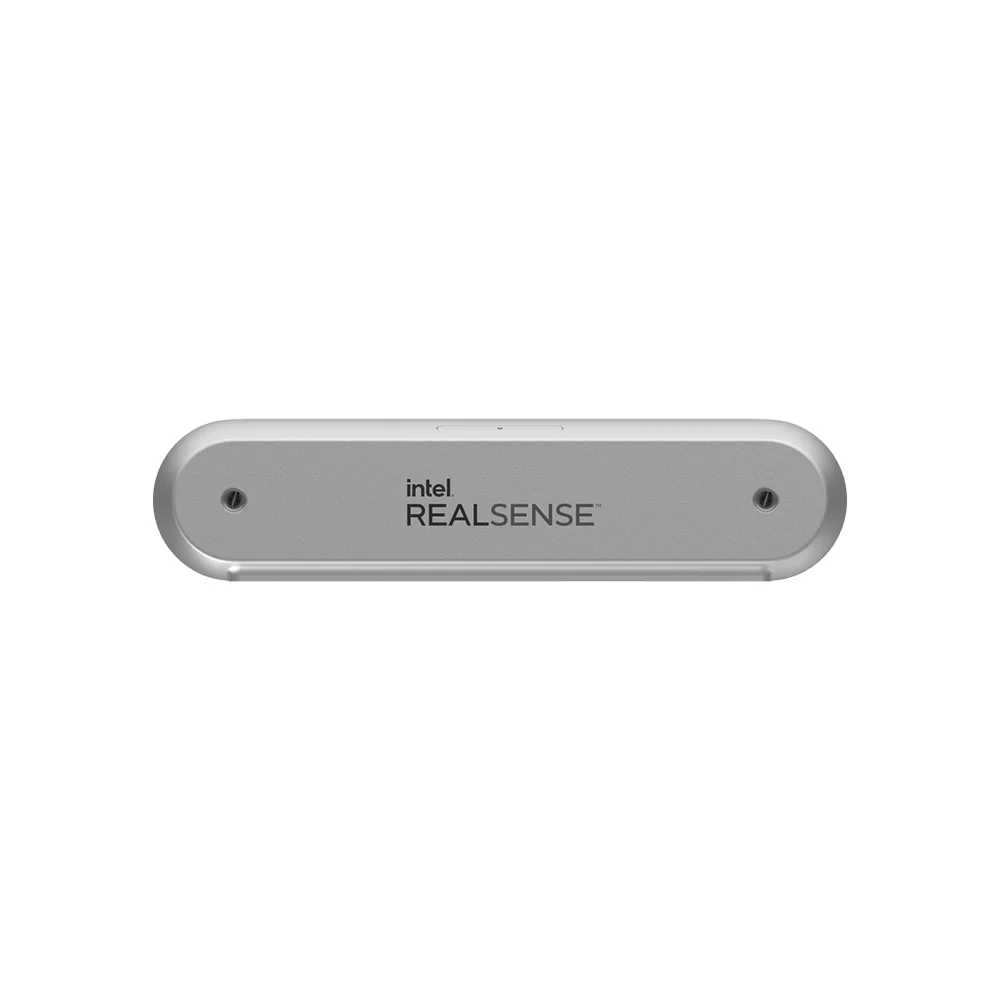

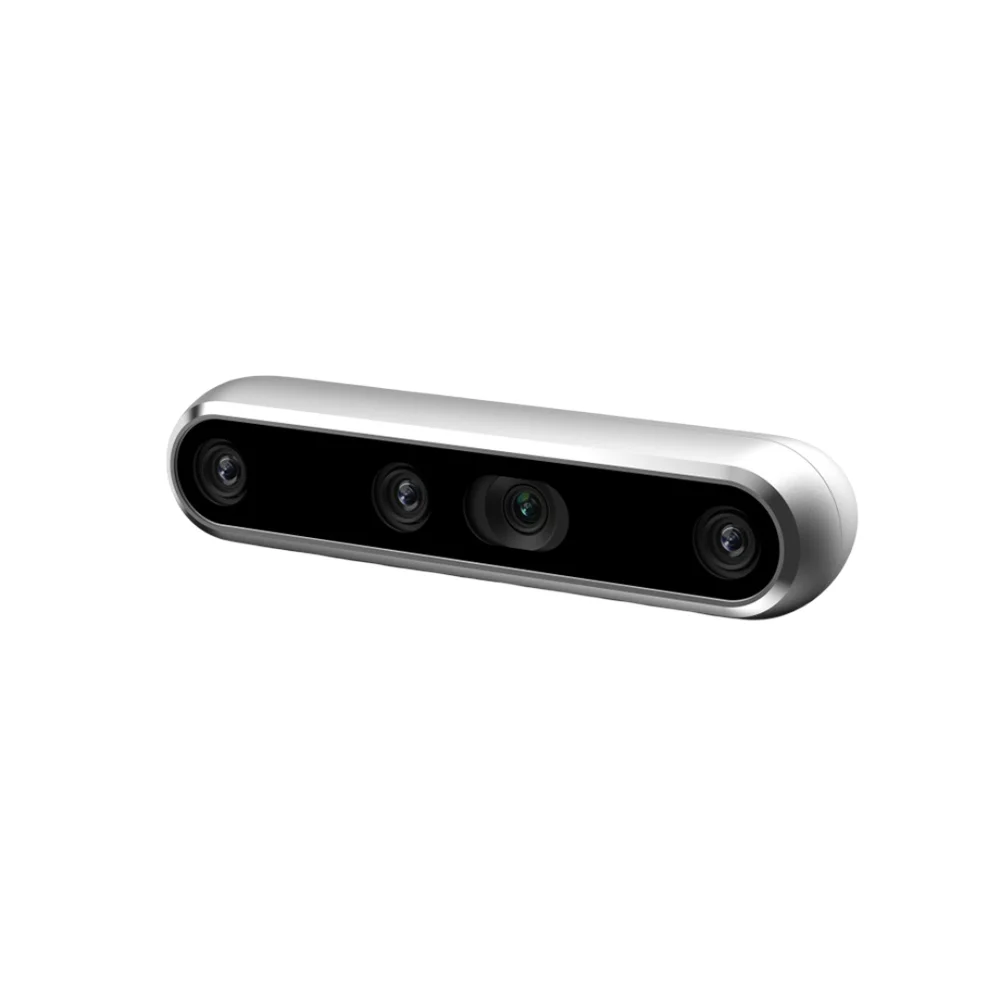

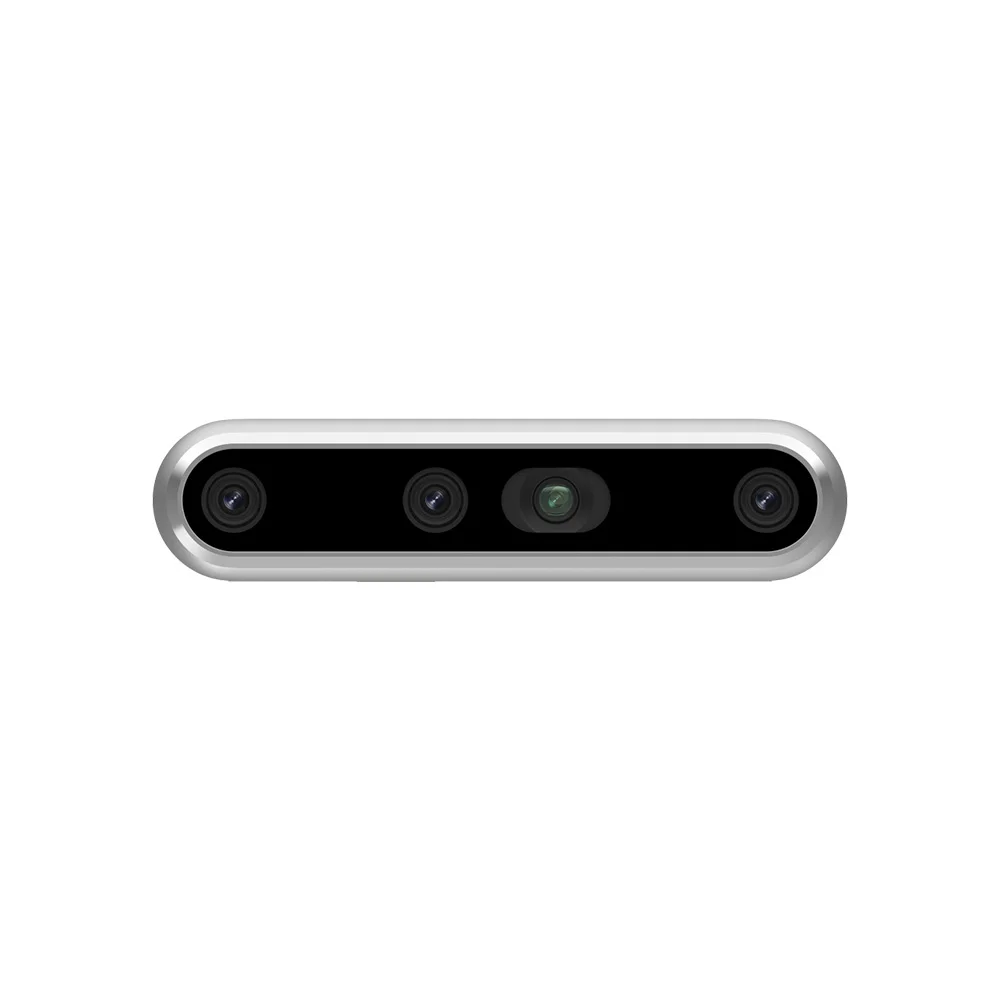

Intel Intel RealSense D456 IP65 Depth Camera w/ Global Shutter & IMU

The D456 is fully compatible with the Intel Intel RealSense SDK 2.0 (librealsense), which provides cross-platform support for Windows, Linux, and macOS. Developers can use the SDK's APIs in C++, C#, Python, or Java to capture depth streams, access IMU data, and implement computer vision algorithms. The SDK includes tools for camera calibration, point cloud generation, and alignment of depth with RGB data, streamlining integration into robotics or vision systems.

The IP65 rating indicates complete protection against dust ingress and resistance to low-pressure water jets from any direction. This allows the D456 to be deployed in outdoor or industrial environments where it may be exposed to rain, dust, or splashing water without requiring an additional protective enclosure. It is suitable for applications on outdoor robots, agricultural drones, or automotive test platforms operating in non-submerged harsh conditions.

The integrated Bosch BMI085 IMU provides accelerometer and gyroscope data, which is fused with the visual depth data from the global shutter sensors. This sensor fusion compensates for the camera's own motion, reducing motion blur and correcting depth measurements during rapid movement or vibration. This is critical for applications on drones or mobile robots where platform dynamics would otherwise degrade the accuracy of the stereoscopic depth calculation.

The D456 is powered and communicates data solely through its USB-C connector. It requires a USB 3.0 or higher port to support the high bandwidth needed for streaming depth data at up to 90 fps. A single cable provides both power and data transfer, simplifying system integration. Ensure your host system (PC, embedded computer, or robot controller) can supply adequate power via USB, typically following the USB 3.0 specification of 5V/900mA.
