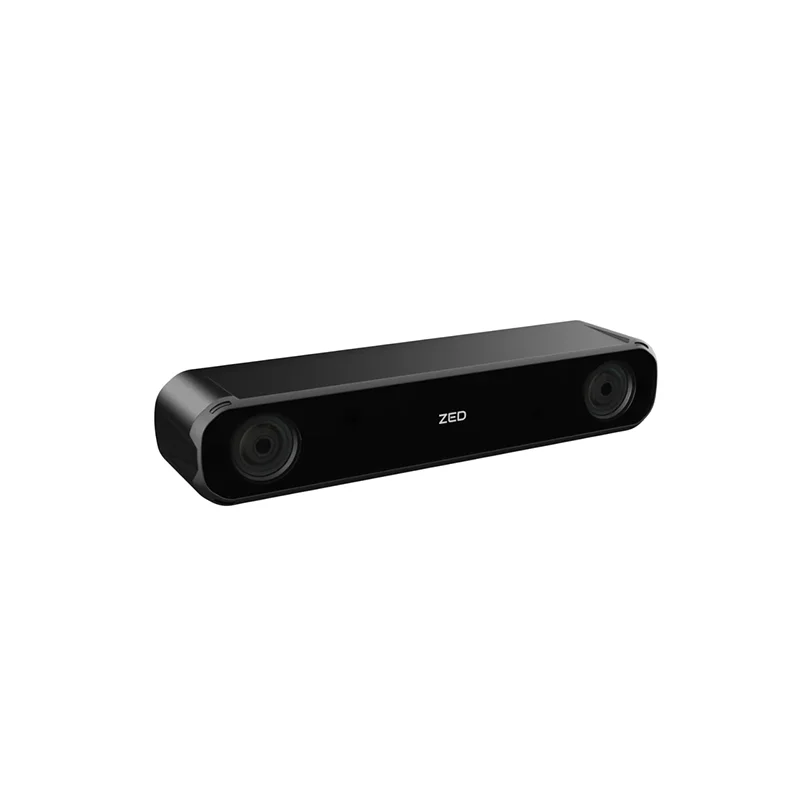

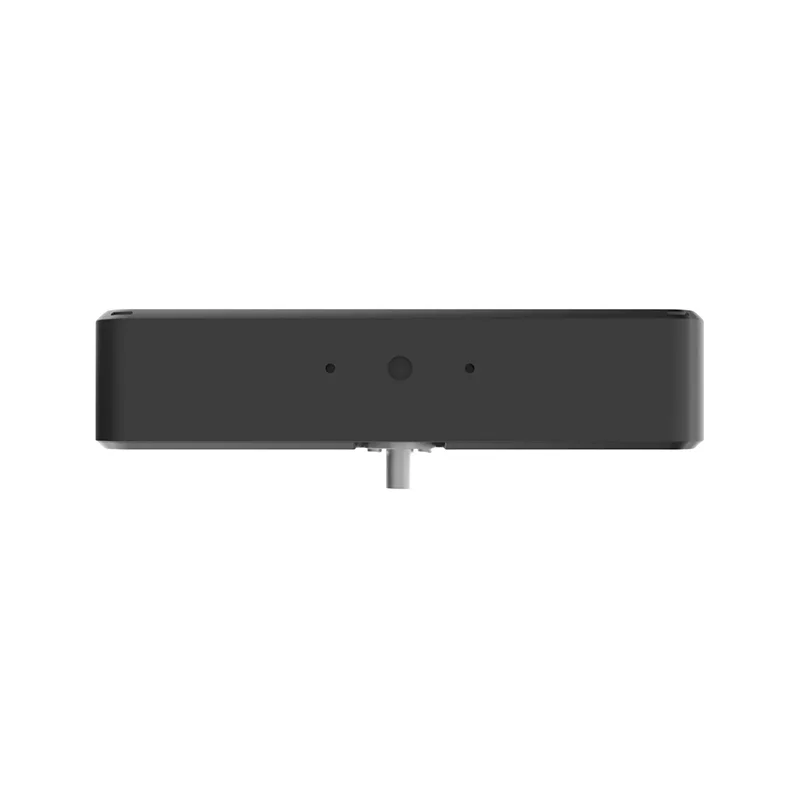

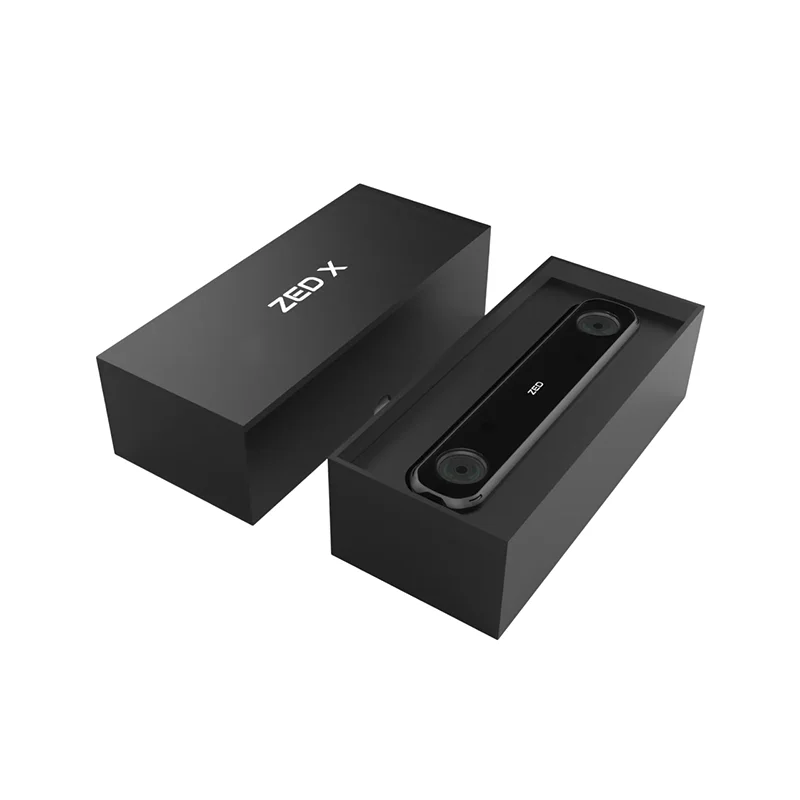

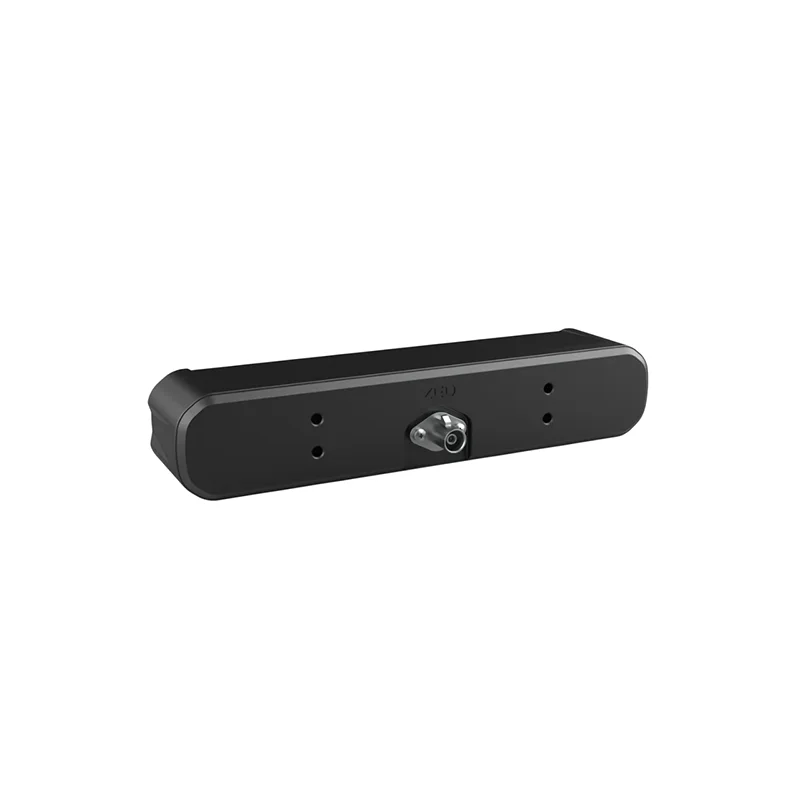

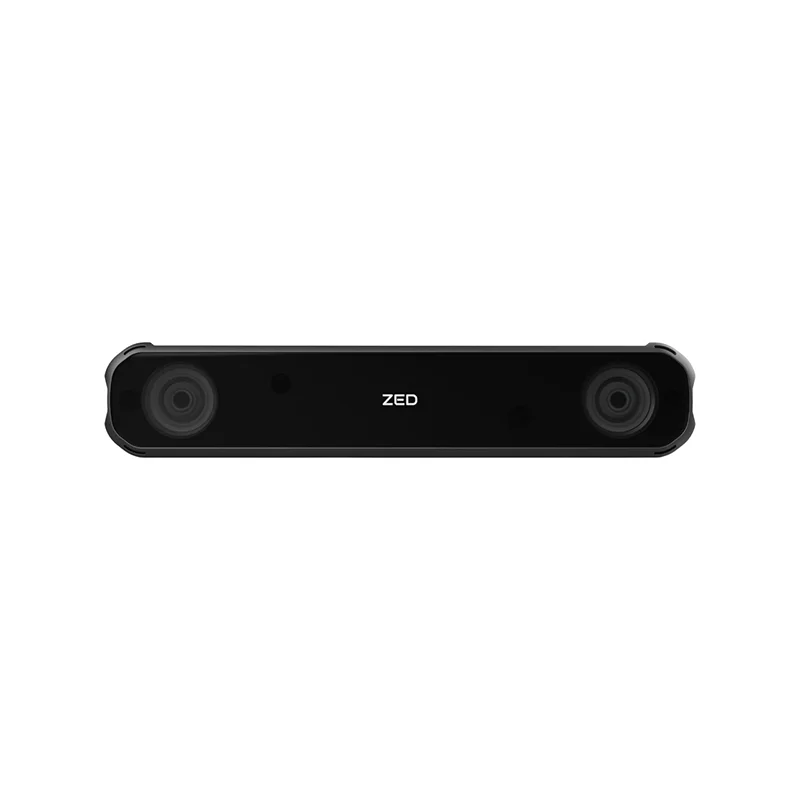

Stereolabs ZED X Stereo Camera w/ Polarizer & 2.2mm Lens
The Stereolabs ZED X is a rugged, IP67-rated stereo vision camera with a 2.2mm wide-angle lens and integrated polarizer, designed for high-precision 3D perception in robotics and autonomous systems. It streams dual 2.3MP global shutter video via GMSL2 and is powered by the ZED SDK for real-time depth mapping, object detection, and SLAM.
Features
- Dual 2.3MP global shutter CMOS sensors deliver crisp, motion-free stereo imaging at up to 60 FPS for fast-moving objects.
- 2.2mm wide-angle lens with integrated polarizer provides a 110° HFOV and reduces glare for enhanced outdoor and industrial vision.
- Neural stereo depth sensing achieves high-accuracy 3D perception up to 20 meters, critical for navigation and collision avoidance.
- Industrial IP67 rating ensures reliable operation in dusty, wet, or demanding environments from -20°C to +55°C.
- Integrated high-frequency IMU and multi-camera sync via GMSL2 enable precise motion tracking and scalable multi-sensor setups.
Out of stock
The Stereolabs ZED X Stereo Camera is engineered for professional-grade machine vision applications requiring robust, high-fidelity 3D data. Its dual 2.3MP global shutter sensors capture perfectly synchronized stereo pairs, eliminating motion blur for dynamic scenes in robotics, drones, and autonomous vehicles. The integrated 2.2mm wide-angle lens, coupled with optical distortion correction and a polarizing filter, delivers a broad 110° horizontal field of view while mitigating reflections and glare.
Powered and connected via a single GMSL2 coaxial cable (Power over Coax), the camera simplifies system integration while supporting high-bandwidth data transmission. The embedded neural depth engine processes stereo imagery in real-time, generating dense depth maps with a range of 0.3 to 20 meters. Combined with the onboard IMU for 6-axis motion data, the ZED X provides a complete perception suite for SLAM, volumetric measurement, and object tracking in outdoor and industrial settings.
Additional Information
| Weight | 0.233 kg |
|---|---|
| Dimensions | 16 × 2.8 cm |
