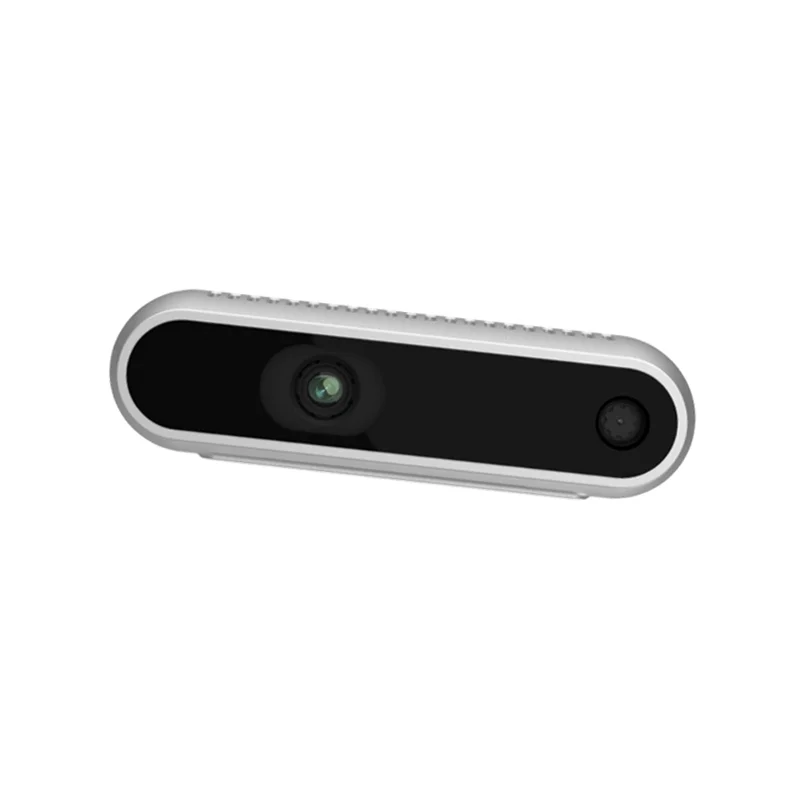

Intel Intel RealSense Depth Camera D435f

You need to install the cross-platform Intel Intel RealSense SDK 2.0, available for Windows, Linux, and macOS. The SDK provides libraries, APIs, and viewer tools for capturing depth streams, accessing point cloud data, and integrating vision pipelines into applications using C++, C#, or Python bindings. Ensure your system meets the USB 3.0 host controller requirements for full bandwidth operation.

The D435f is entirely bus-powered via its USB-C 3.1 Gen 1 interface. You must use a compliant USB 3.0 or later cable and port that can deliver sufficient power (typically 900mA). For reliable operation at high frame rates, avoid using long or low-quality cables that may cause voltage drop or data integrity issues, which can affect depth stream stability.

The camera is optimized for distances between 0.3 meters and 3 meters. Its depth accuracy is specified as better than 2% of the measured distance at 2 meters, thanks to the advanced stereo algorithm and active IR projector which improves performance in textureless or low-light environments. The field of view is 87° horizontal by 58° vertical for comprehensive scene coverage.

Yes, the onboard vision processor and SDK provide hardware synchronization and software alignment features. The depth and RGB images are intrinsically calibrated, and the Intel RealSense SDK offers functions to align depth pixels to the color coordinate space, creating registered colorized point clouds essential for applications like 3D reconstruction and object recognition.
