SICK MICS3-CBAZ90EN1P01 Safety Laser Scanner - 275° Beam Angle, 64m Range, SIL2, IP65

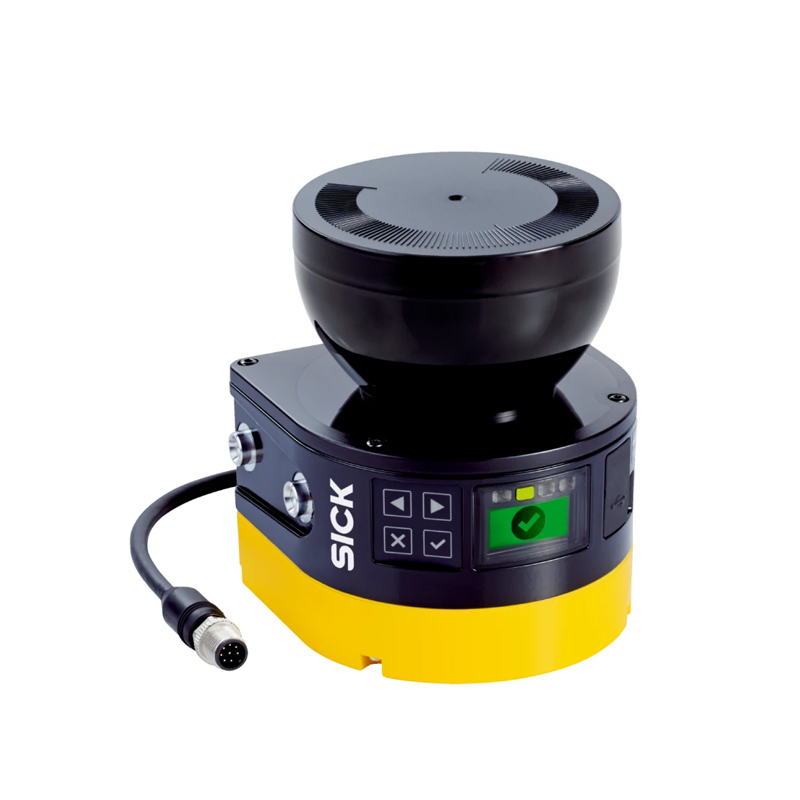

SICK MICS3-CBAZ90EN1P01 Safety Laser Scanner - 275° Beam Angle, 64m Range, SIL2, IP65 - Image 2
SKU: SENS-2740
📋 GST Invoice Available

SICK MICS3-CBAZ90EN1P01 Safety Laser Scanner - 275° Beam Angle, 64m Range, SIL2, IP65

₹1,363,829.00 (Inclusive of all taxes)
Out of Stock

The SICK MICS3-CBAZ90EN1P01 is a high-performance Type 3, SIL2 safety laser scanner designed for industrial automation, featuring a 275° scanning angle, a protective range up to 64 meters, and support for 128 configurable field pairs for complex safety zoning.

Features

  • Ultra-wide 275° scanning angle for extensive area coverage.
  • Extended protective sensing range of up to 64 meters.
  • Configurable with up to 128 safety field pairs for dynamic zoning.
  • Certified to Type 3 and SIL2 industrial safety standards.
  • Rugged IP65 housing for operation in dusty and harsh environments.

Out of stock

Description

The SICK MICS3-CBAZ90EN1P01 utilizes advanced laser time-of-flight (ToF) sensing to create precise, two-dimensional protective fields. Its high-resolution scanning provides reliable object detection for personnel and equipment safety in dynamic industrial settings.

Engineered for demanding applications, the scanner operates reliably within a temperature range of -10°C to 50°C. It features multiple configuration interfaces, including USB 2.0 (Mini-USB) and Ethernet, enabling flexible integration and diagnostics within complex automation control systems.

Key Features

  • High-precision laser scanning with configurable resolution settings (30mm to 200mm).
  • Comprehensive safety certification meeting Type 3 and SIL2 performance levels.
  • Robust IP65-rated enclosure ensures protection against dust and water jets.
  • Advanced field configuration allows creation of complex warning and protective zones.
  • Dual communication interfaces (USB and Ethernet) for easy setup and monitoring.
  • Optimized for integration with autonomous mobile robots (AMRs) and automated guided vehicles (AGVs).

Applications

  • Safety perimeter guarding for large industrial machinery and robotic cells.
  • Collision avoidance and navigation for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs).
  • Access protection and intrusion detection in smart factories and high-speed production lines.
  • Hazardous area monitoring in logistics centers and automated storage systems.

Technical Specifications

Model NumberMICS3-CBAZ90EN1P01
Scanning Angle275°
Sensing RangeUp to 64 m
Protective Field Range9 m
Configurable Field Pairs128
Resolution30/40/50/60/70/150/200 mm
Safety LevelType 3, SIL2
Protection RatingIP65
Operating Temperature-10°C to 50°C
Configuration InterfaceUSB 2.0 (Mini-USB), Ethernet
Length15.07 cm
Height1.2 cm
Weight1.45 kg

Frequently Asked Questions

What is the maximum sensing range and scanning angle of the MICS3-CBAZ90EN1P01?

The scanner has an extended sensing range of up to 64 meters for monitoring and a protective field range of 9 meters. It provides an ultra-wide scanning angle of 275 degrees, offering extensive area coverage for large-scale industrial applications.

What safety certifications does this SICK laser scanner hold?

This device is certified to Type 3 and Safety Integrity Level 2 (SIL2) standards. These industrial safety ratings ensure high-performance, fault-tolerant operation for personnel protection in automated machinery and robotic environments.

How are the safety zones configured on this scanner?

Configuration is performed via USB 2.0 (Mini-USB) or Ethernet interfaces using SICK's proprietary software. The scanner supports up to 128 configurable field pairs, allowing you to define complex warning zones, protective fields, and multiple switching outputs for dynamic safety scenarios.

Is this sensor suitable for outdoor or harsh environments?

With an IP65 protection rating, the enclosure is dust-tight and protected against water jets from any direction. This makes it suitable for operation in dusty industrial settings, but it is not designed for prolonged submersion or extreme outdoor weather conditions.

Package Includes

  • 1 x SICK MICS3-CBAZ90EN1P01 Safety Laser Scanner

Additional Information

Weight 1.45 kg
Dimensions 15.07 × 1.2 cm
