Renke RS-PH-N01-2-201T Industrial pH Sensor, 0-14.00pH, 0-80°C, RS485/4-20mA/0-5V/0-10V Output, IP65
The Renke RS-PH-N01-2-201T is an industrial-grade pH sensor with a composite electrode, designed for continuous monitoring in water and wastewater applications. It provides versatile analog and digital outputs (RS485 Modbus, 4-20mA, 0-5V, 0-10V) for seamless integration with PLCs, SCADA systems, and data loggers, operating from a wide 10-30V DC supply.
Features
- High-Accuracy pH Measurement: 0-14.00pH range with 0.01pH resolution and ±0.15pH accuracy.
- Integrated Temperature Sensing: Built-in 0-80°C temperature measurement for automatic compensation.
- Multi-Protocol Output: Selectable RS485 Modbus, 4-20mA, 0-5V, or 0-10V signal output for system flexibility.
- Robust Industrial Design: IP65-rated transmitter housing for outdoor and wet environment durability.
- Wide Power Input: Operates from 10-30V DC with low power consumption (0.6W for RS485).
Out of stock

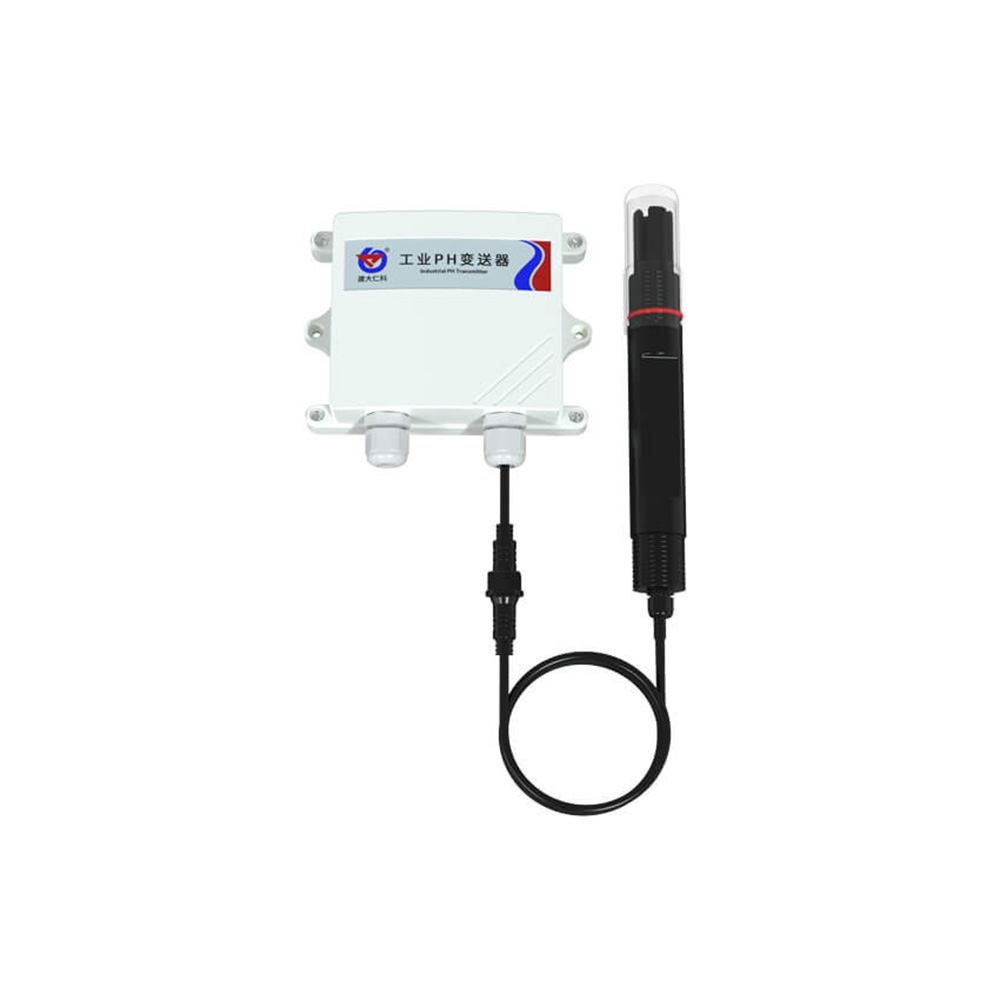

The Renke RS-PH-N01-2-201T industrial pH sensor employs a conventional composite electrode suitable for measuring pH in conventional sewage, tap water, environmental monitoring, and domestic wastewater. The sensor assembly consists of a separate, immersible electrode probe (available in cable lengths from 5m to 20m) and a data collector/transmitter unit. The transmitter features an IP65 protection rating, making it resistant to rain and dust for reliable outdoor installation.
Advanced signal conditioning within the transmitter ensures stable readings with excellent repeatability (±0.02pH). The unit supports configurable alarm thresholds and can trigger multiple notification methods (interface, sound/light, SMS, email) upon detecting pH levels outside preset limits, facilitating prompt management response and event logging for analysis.
Additional Information
| Weight | 0.59 kg |
|---|---|
| Dimensions | 25 × 21 × 9 cm |
