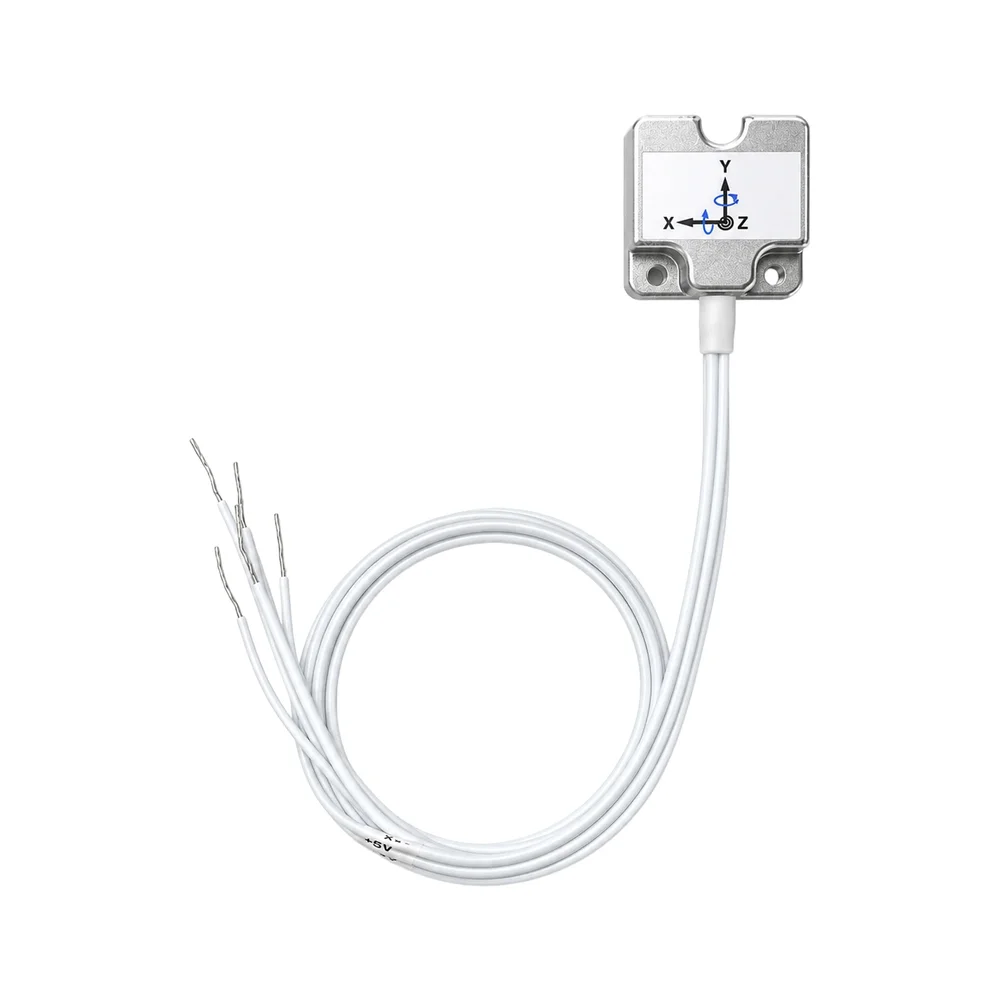

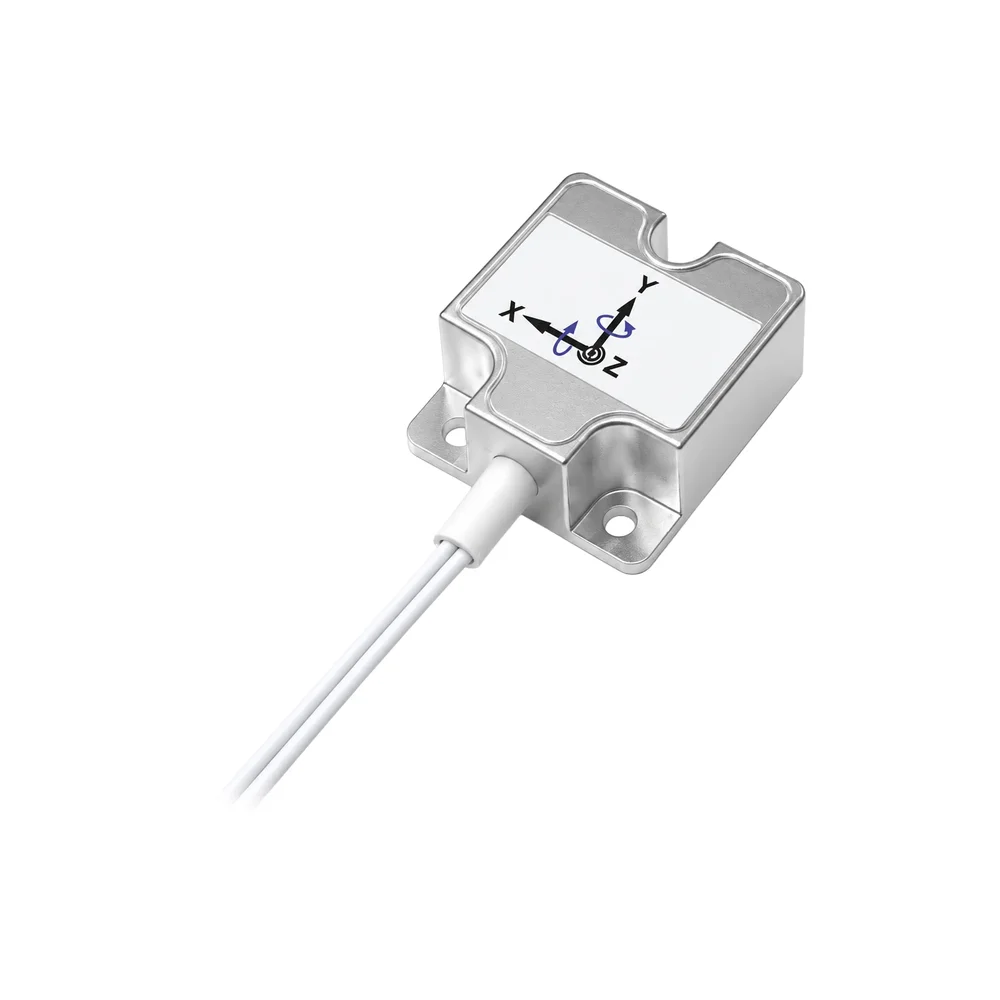

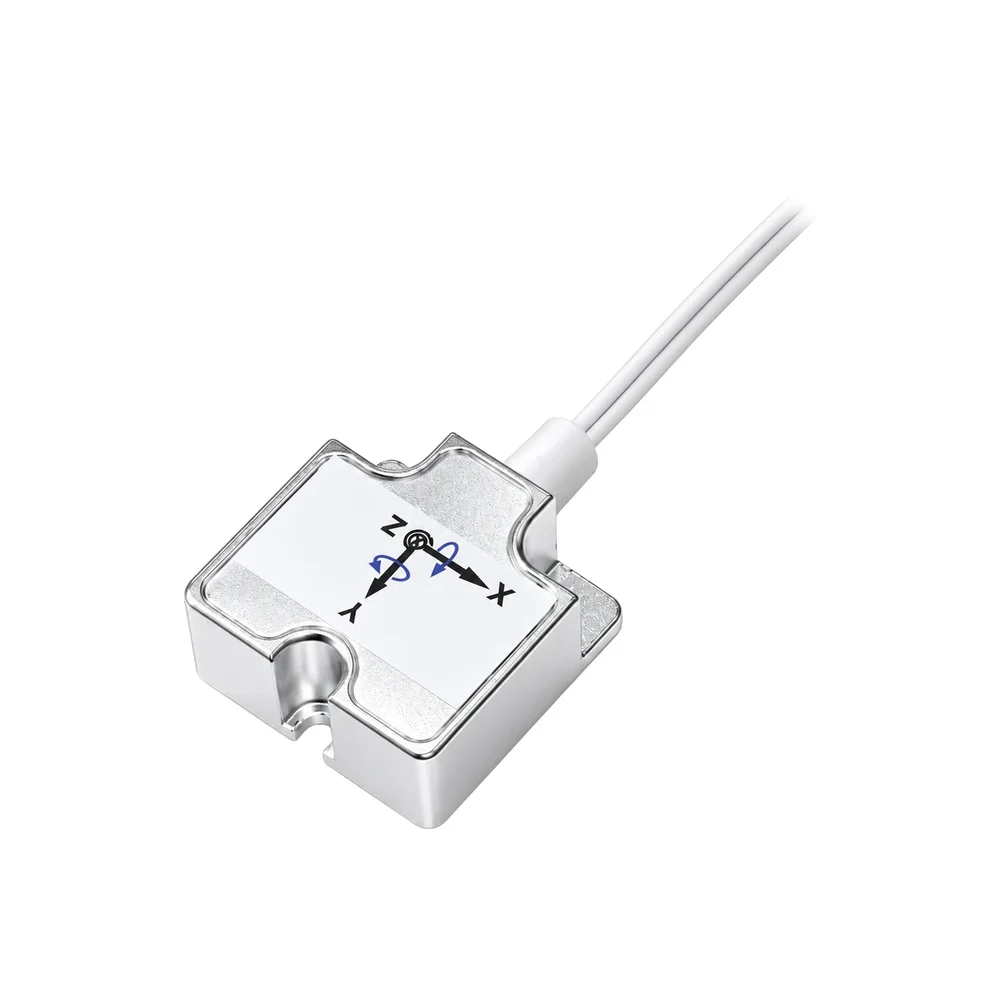

BWSENSING IMU100S 3-Axis Gyroscope & Accelerometer Sensor, High Precision Industrial IMU Sensor, RS422
The BWSENSING IMU100S is a high-precision industrial-grade inertial measurement unit (IMU) integrating a 3-axis gyroscope (±500°/sec) and a 3-axis accelerometer (±10g). It communicates via an RS422 interface and is designed for robust integration into industrial control systems, robotics, and unmanned platforms requiring accurate motion and orientation data.
Features
- High-precision 3-axis MEMS gyroscope (±500°/sec) and accelerometer (±10g).
- Industrial RS422 communication interface for reliable, noise-immune data transmission.
- Advanced 6-state Kalman filtering algorithm with dynamic and quadrature compensation.
- Rugged IP65-rated magnesium aluminium alloy housing for harsh environments.
- Wide operating temperature range from -40°C to +85°C with high shock/vibration resistance.
Out of stock
The BWSENSING IMU100S utilizes high-performance MEMS inertial sensors combined with sophisticated onboard signal processing. Its integrated Kalman filter fuses gyroscope and accelerometer data to provide stable, drift-compensated orientation and motion measurements, even under dynamic conditions. The sensor’s architecture is optimized for minimal latency and high data integrity.
Housed in a compact, machined magnesium aluminium alloy enclosure with an IP65 ingress protection rating, the IMU100S is built to withstand industrial environments characterized by dust, moisture, and mechanical stress. Its RS422 differential serial interface ensures reliable communication over extended cable lengths in electrically noisy settings, making it suitable for integration into PLCs, robotic controllers, and custom data acquisition systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 2.24 × 2.24 × 1 cm |
