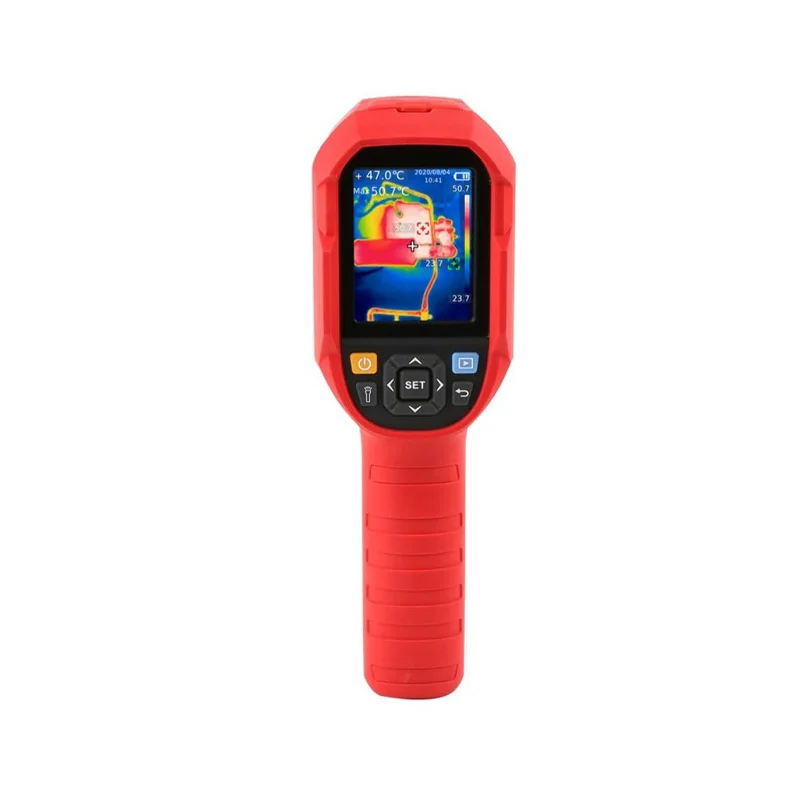

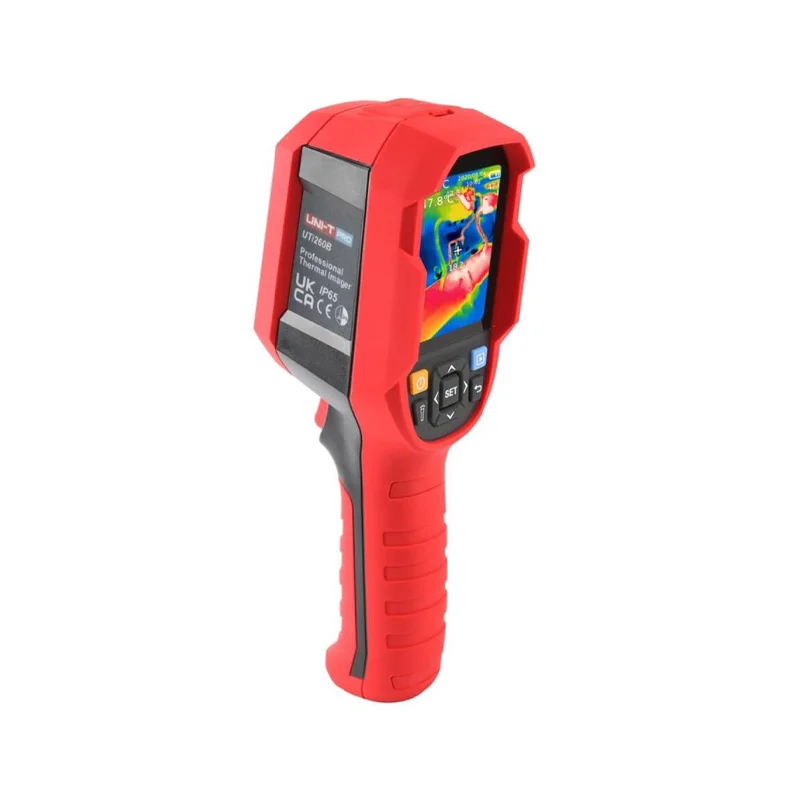

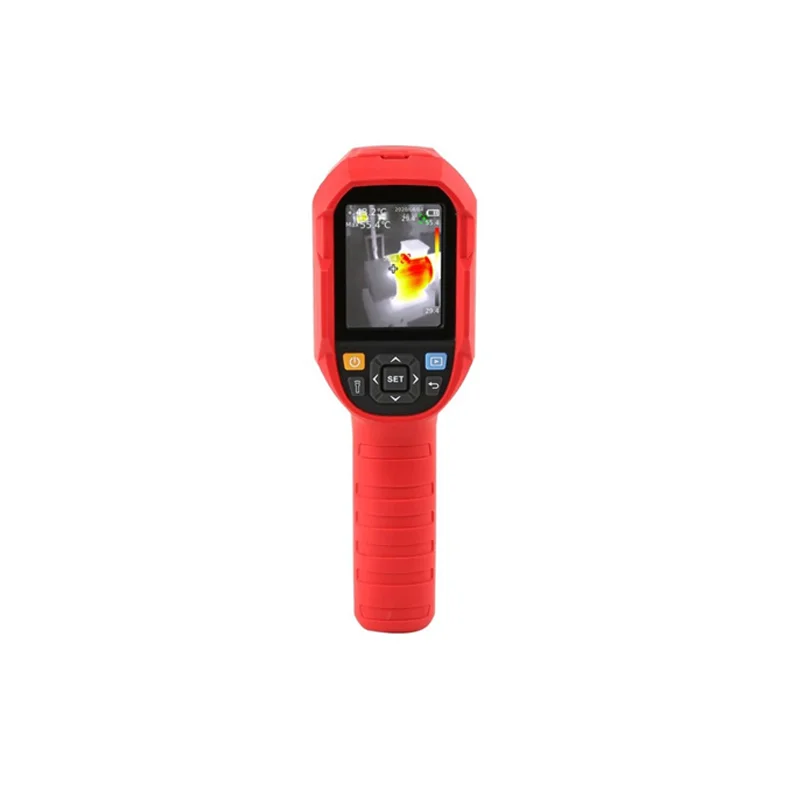

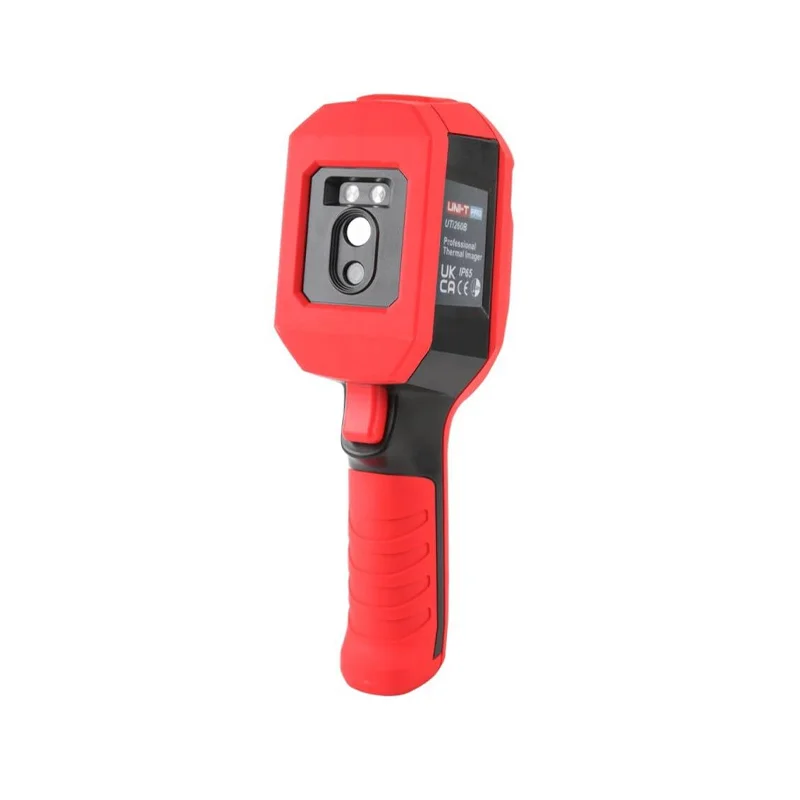

UNI-T UTi260B Professional Thermal Imager 256x192 IR
The UNI-T UTi260B is a professional-grade thermal imaging camera featuring a 256×192 IR sensor for detailed thermal analysis, a 640×480 visual camera, and a 2.8-inch TFT display. It offers a wide -20°C to 550°C measurement range, IP65 ruggedness, and USB-C charging for industrial inspection and maintenance applications.
Features
- High-Resolution Thermal Imaging: 256×192 IR sensor paired with a 640×480 digital camera delivers clear, detailed thermal and visual images for precise fault detection and analysis.
- Wide Industrial Temperature Range: Measures from -20°C to 550°C (-4°F to 1022°F) with ±2% accuracy, suitable for electrical, mechanical, and building diagnostics.
- Rugged IP65 & Drop-Resistant Design: Built for harsh environments with IP65 sealing and 2-meter drop test certification, ensuring reliability on job sites.
- Advanced On-Screen Analysis: Features 7 color palettes, 4 display modes (Thermal, Visual, Fusion, PIP), 3-point temperature analysis, and high/low auto alarms for efficient workflow.

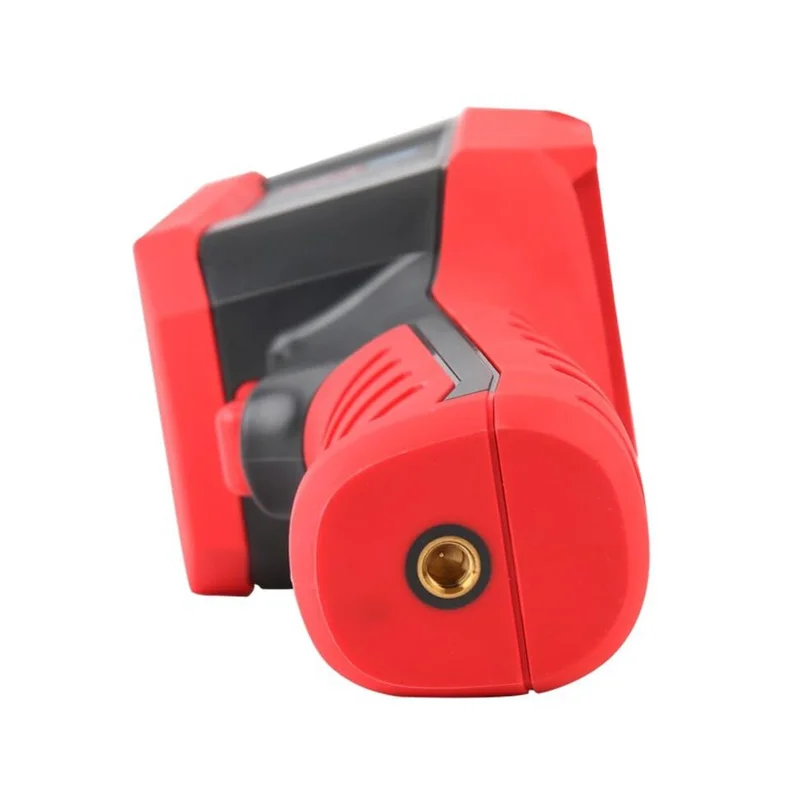

- Long-Lasting & Portable: Powered by a rechargeable 5000mAh Li-ion battery providing up to 6 hours of operation, with USB-C charging and a 1/4″ tripod mount for stable use.
Out of stock
The UNI-T UTi260B Professional Thermal Imager is engineered for industrial technicians, maintenance engineers, and energy auditors requiring reliable, detailed thermal diagnostics. Its uncooled microbolometer sensor with a 256×192 IR resolution captures thermal gradients with high clarity, while the integrated 640×480 visual camera provides context for accurate problem localization. The device supports multiple analysis modes including thermal, visual, fusion, and picture-in-picture, alongside seven selectable color palettes for optimal contrast based on the inspection target.
Designed for field durability, the UTi260B meets IP65 standards for dust and water resistance and survives 2-meter drops, making it a robust tool for challenging environments. Onboard software features like movable spot meters, area temperature alarms, and PC analysis compatibility streamline reporting and data logging. The fixed-focus lens with a 56°×42° field of view and ≤60mK thermal sensitivity ensures rapid, accurate scans of electrical panels, mechanical systems, building envelopes, and HVAC equipment without complex setup.
Additional Information
| Weight | 0.49 kg |
|---|---|
| Dimensions | 23.6 × 7.55 cm |
