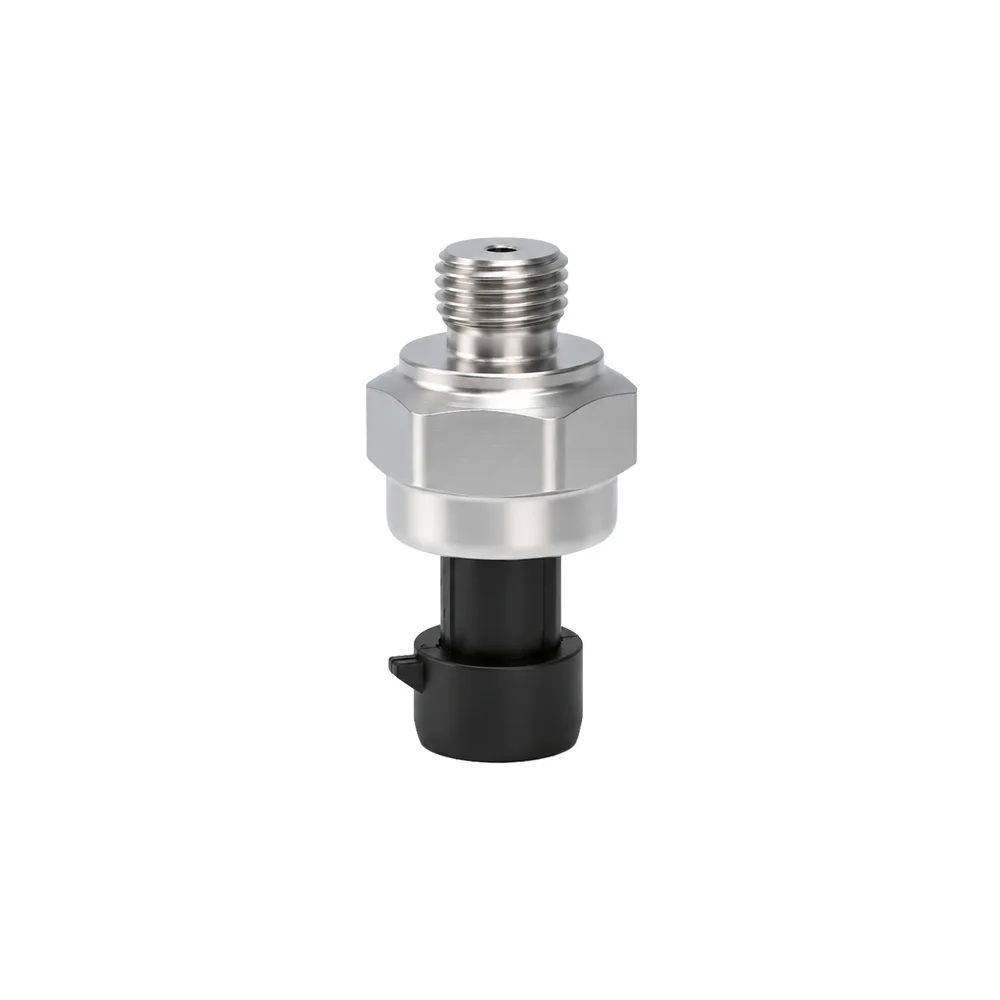

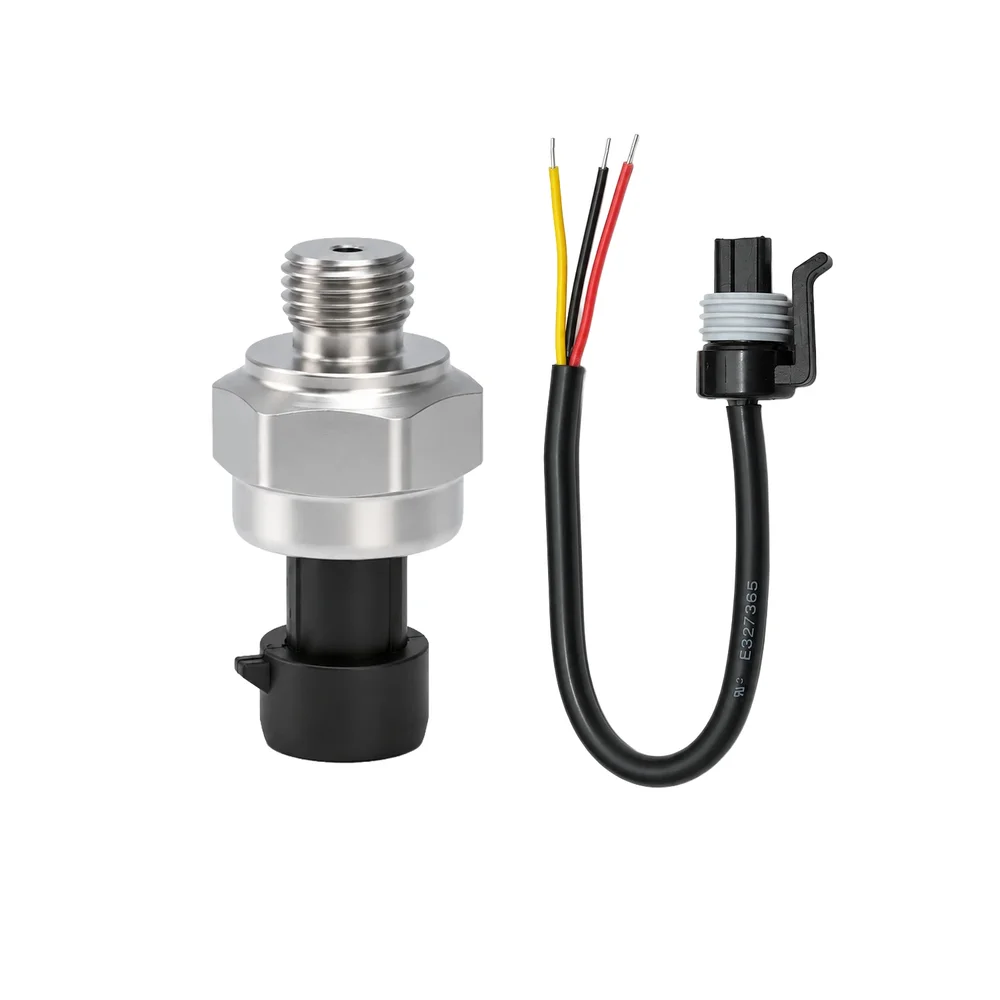

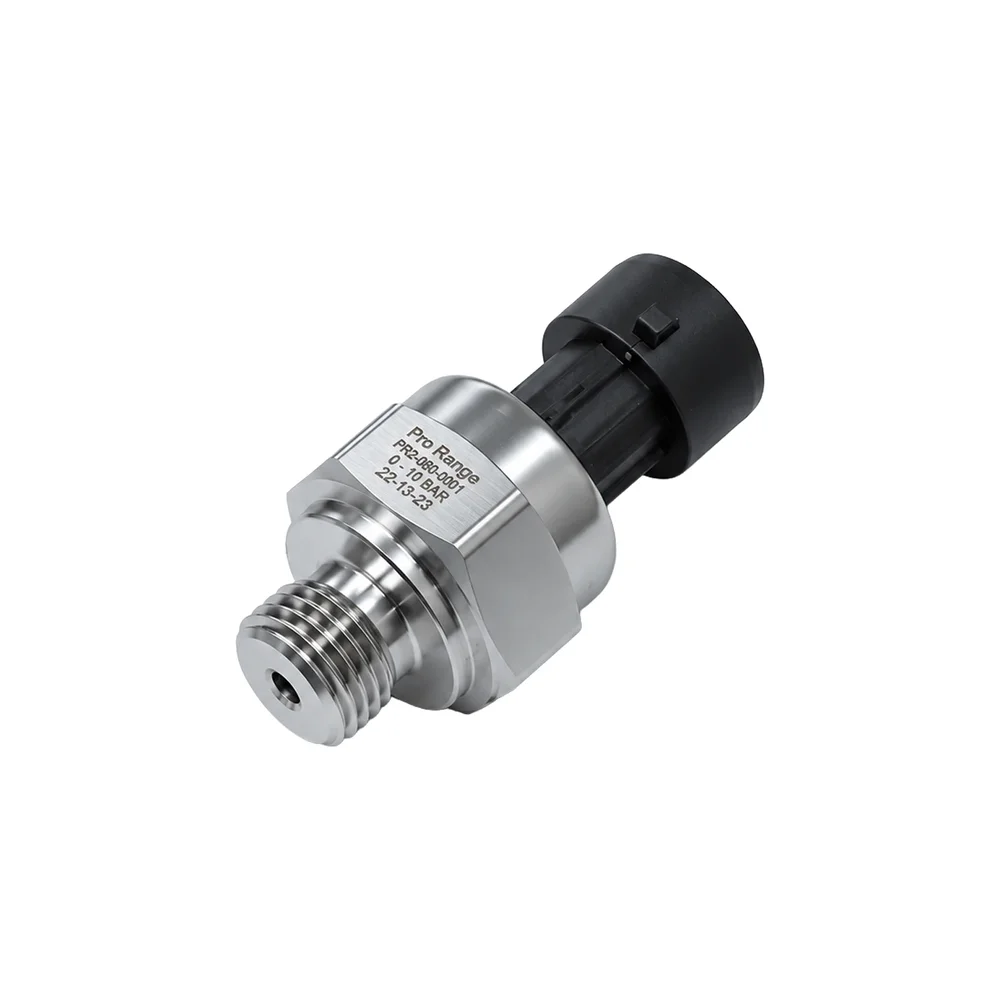

Pro-Range PR1100C Pressure Transducer 0-1.2 MPa, 0.5-4.5V Output, G1/4" Thread
The Pro-Range PR1100C is a compact pressure transducer delivering a 0.5–4.5V analog output for direct ADC interfacing with microcontrollers (Arduino, Raspberry Pi, PLCs). It provides precise measurement of non-corrosive gases and liquids up to 1.2 MPa with an IP65-rated, durable housing.
Features
- 0.5–4.5V Analog Output for direct ADC connection to microcontrollers and data acquisition systems.
- ±1.0% Full-Scale Accuracy ensures reliable pressure measurement up to 1.2 MPa (0–12 bar).
- IP65 Protection Rating provides dust-tight and water-jet resistant operation for industrial environments.
- Fast ≤10 ms Response Time enables real-time pressure monitoring and control.
- G1/4″ Male Thread for secure and standardized installation into fluid and gas lines.
Out of stock
The PR1100C pressure transducer utilizes a high-stability piezoresistive sensing element to convert applied pressure into a linear analog voltage signal. Its internal signal conditioning circuit ensures minimal drift and high repeatability across the specified -20°C to +105°C operating temperature range.
Designed for integration into automation, HVAC, hydraulic, and pneumatic systems, the sensor’s robust stainless steel construction and IP65 sealing make it suitable for demanding industrial applications where exposure to dust and water sprays is a concern. The 5V DC supply requirement and low ≤10 mA current draw simplify power system design.
Additional Information
| Weight | 0.056 kg |
|---|
