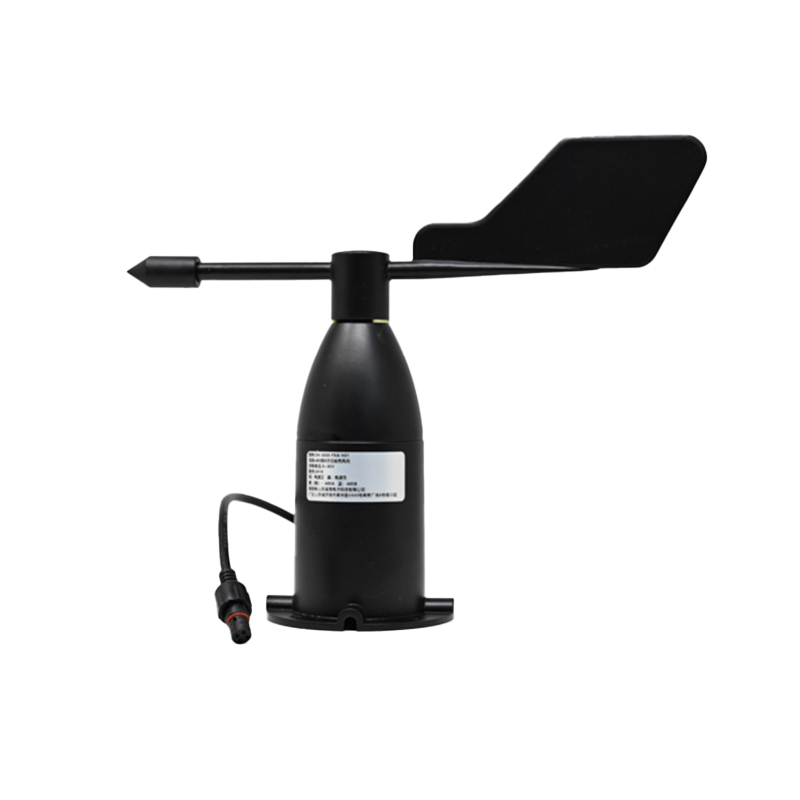

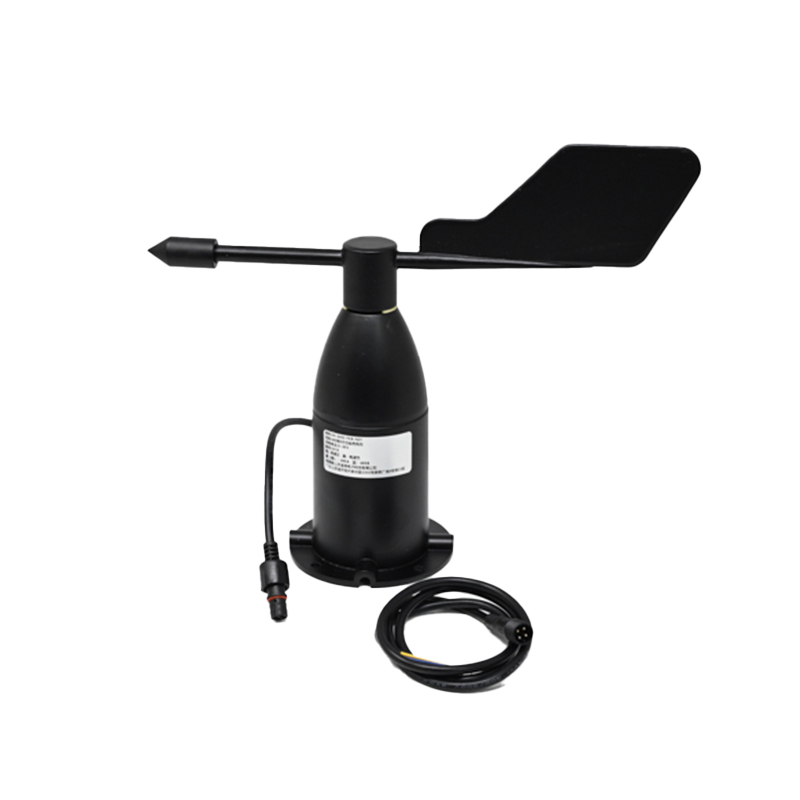

Pro-Range SN-3000-FXA-N01-8 Wind Direction Sensor - RS485 Output, 8 Direction, Aluminum Shell
The Pro-Range SN-3000-FXA-N01-8 is a robust wind direction transmitter featuring an all-aluminum shell and RS485 Modbus-RTU communication. It provides 8-direction wind data and is designed for seamless integration with weather stations, industrial PLCs, and environmental monitoring systems operating on a wide 5-30V DC supply.
Features
- RS485 Modbus-RTU output for reliable industrial communication and easy system integration.
- 8-direction wind sensing (45° resolution) with low rotational resistance from high-performance bearings.
- Rugged IP65-rated aluminum alloy housing ensures long-term outdoor corrosion resistance.
- Wide operating voltage range (5-30V DC) compatible with various field power sources.
- Compact, lightweight design with low moment of inertia for fast, sensitive response to wind changes.
Out of stock
The SN-3000-FXA-N01-8 wind direction sensor utilizes a precision mechanical vane and bearing system to translate wind direction into a corresponding digital signal. Its internal smooth bearing assembly minimizes friction, ensuring accurate and responsive measurement even in low-wind conditions.
Housed in a high-strength aluminum alloy shell with a protective plastic spray coating, the sensor is built to withstand harsh environmental exposure from -40°C to +60°C. The IP65 rating provides protection against dust ingress and water jets, making it suitable for permanent outdoor installation in meteorological, agricultural, and marine applications.
Additional Information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 25 × 21 × 11 cm |
