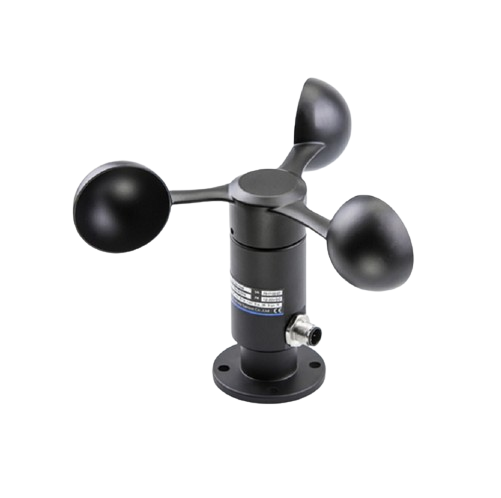

FirstRate FST200-201 Wind Speed Anemometer Sensor, 0.5-50 m/s Range, 4-20mA Output, M12 Connector w/ 1.5m Cable
The FirstRate FST200-201 is a robust 4-20mA wind speed anemometer designed for industrial and environmental monitoring systems. Featuring an aluminum alloy housing with IP65 protection, it delivers a linear current output signal proportional to wind speeds from 0.5 to 50 m/s, compatible with PLCs, data loggers, and SCADA interfaces.
Features
- Industrial 4-20mA analog output signal for direct PLC/DAQ integration.
- Wide measurement range from 0.5 m/s to 50 m/s with ±3% FS accuracy.
- Rugged IP65-rated aluminum alloy housing for harsh outdoor environments.
- Non-contact magnetic sensing principle ensures long-term reliability and low wear.
- Includes a 1.5-meter cable with a standard M12 electrical connector for easy installation.
Out of stock
The FST200-201 wind speed sensor employs a precision cup-type anemometer mechanism coupled with a non-contact magnetic sensing element. As wind rotates the cups, the internal circuit generates a linear 4-20mA current signal directly proportional to the horizontal wind speed, providing a stable and noise-resistant output for industrial control systems.
Engineered for durability, the sensor features fully sealed internal and rotating components to prevent ingress of water, salt spray, and sand. Its built-in digital circuitry provides robust protection against RF interference, electromagnetic noise, and lightning surge events up to 15kV, ensuring reliable operation in demanding applications from port machinery to high-altitude installations.
Additional Information
| Weight | 0.615 kg |
|---|---|
| Dimensions | 20 × 19 × 19 cm |
