Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-RBD01 Absolute Rotary Encoder, IO-Link, Flange Mount, 12000 RPM, 18-30V DC, 10mm Shaft
Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-RBD01 Absolute Rotary Encoder, IO-Link, Flange Mount, 12000 RPM, 18-30V DC, 10mm Shaft - Image 2
SKU: SENS-2586
📋 GST Invoice Available

Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-RBD01 Absolute Rotary Encoder, IO-Link, Flange Mount, 12000 RPM, 18-30V DC, 10mm Shaft

₹77,589.00 (Inclusive of all taxes)
Out of Stock

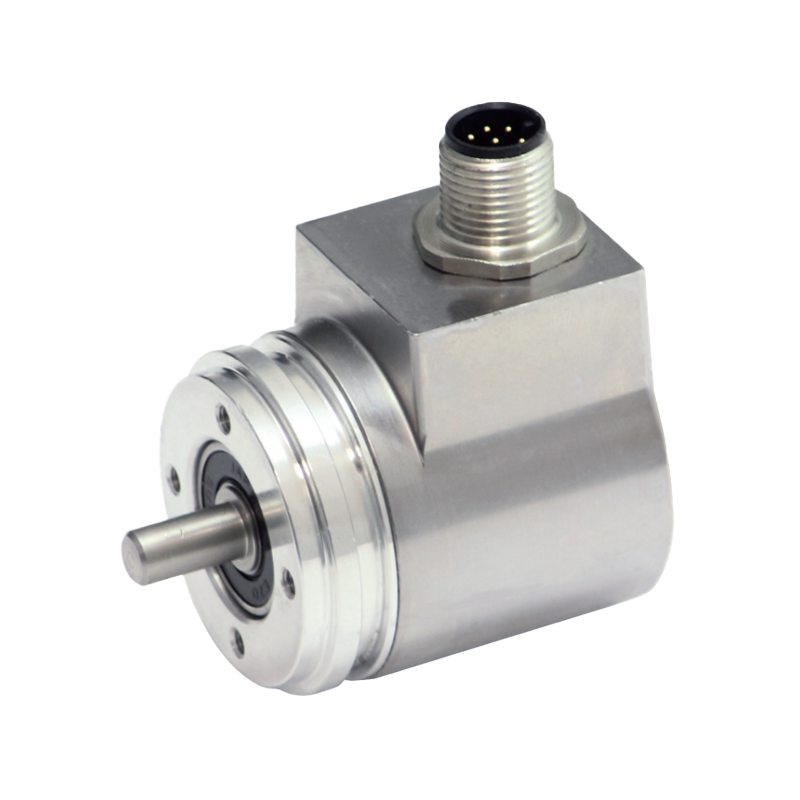

The Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-RBD01 is an absolute rotary encoder with an integrated IO-Link V1.1 interface, designed for direct integration into industrial PLCs and smart factory networks. It provides high-resolution, wear-free absolute position feedback for precise motion control applications.

Features

  • Absolute rotary encoder with magnetic sampling technology for wear-free operation.
  • Integrated IO-Link V1.1 interface for smart communication, parameterization, and diagnostics.
  • High programmable resolution up to 31-bit overall and 16-bit single turn.
  • Rugged IP65 housing and stainless-steel shaft for demanding industrial environments.
  • Supports high rotational speeds up to 12,000 RPM for dynamic motion control.

Out of stock

Description

The ENA36TL-S10SA5-0016-IO-RBD01 absolute rotary encoder from Pepperl+Fuchs utilizes advanced magnetic sampling technology to deliver precise, non-contact position feedback. This wear-free sensing principle ensures long-term reliability and accuracy without mechanical degradation, making it ideal for continuous operation in industrial automation.

Featuring an integrated IO-Link V1.1 interface, the encoder enables bidirectional digital communication for configuration, real-time data transfer, and condition monitoring within Industry 4.0 frameworks. Its programmable parameters, including measuring range and rotation direction, allow for flexible adaptation to specific machine control requirements. The device is housed in a robust IP65-rated enclosure with a 10mm stainless steel shaft, ensuring performance across a wide operating temperature range in harsh environments.

Key Features

  • High-precision absolute rotary encoder with magnetic sensing technology.
  • Integrated IO-Link V1.1 interface for smart sensor communication and diagnostics.
  • Programmable resolution up to 31-bit (overall) and 16-bit (single turn).
  • Rugged IP65-rated industrial housing for protection against dust and water jets.
  • Stainless steel solid shaft with a 10mm diameter for durable mechanical coupling.
  • Wide operating voltage range of 18-30V DC for compatibility with standard industrial power supplies.
  • High-speed operation capable of up to 12,000 RPM for dynamic control applications.
  • M12, 5-pin A-coded connector for reliable and standardized field wiring.

Applications

  • Precision motion control and position feedback in industrial robotics and automated guided vehicles (AGVs).
  • Speed and angular position monitoring on high-speed conveyor systems and packaging machinery.
  • Absolute position sensing for rotary actuators and valves in process automation.
  • Integration into condition monitoring systems for predictive maintenance on rotating machinery.
  • Angular feedback for CNC machine tool axes and servo drives requiring high-resolution data.

Technical Specifications

Model NumberENA36TL-S10SA5-0016-IO-RBD01
Sensor TypeAbsolute Rotary Encoder
Sensing TechnologyMagnetic Sampling
Operating Voltage18 – 30 V DC
Communication InterfaceIO-Link V1.1
Maximum Rotational Speed12000 RPM
Single Turn ResolutionUp to 16 Bit Programmable
Overall ResolutionUp to 31 Bit Programmable
Shaft TypeSolid Shaft
Shaft Diameter10 mm
Electrical ConnectionM12 × 1, 5-Pin A-coded Connector
Ingress ProtectionIP65
Mounting TypeFlange Mount
Length68 mm
Width68 mm
Weight270 g

Frequently Asked Questions

What is the operating voltage range for this Pepperl+Fuchs encoder?

The encoder operates from a 18V DC to 30V DC power supply, making it compatible with standard 24V DC industrial control systems. Ensure your power source is within this range for stable operation and to avoid damage to the device.

How do I communicate with and configure this encoder?

The encoder features an integrated IO-Link V1.1 digital communication interface. You will need an IO-Link master device to connect via the standard M12 5-pin A-coded connector. Through this interface, you can read absolute position data, program parameters like resolution and rotation direction, and access diagnostic information.

What is the difference between single-turn and overall resolution?

Single-turn resolution (programmable up to 16-bit) defines the angular precision within one full shaft revolution (0-360°). The overall resolution (programmable up to 31-bit) defines the total unique positions the encoder can report over its full multi-turn range, which is essential for applications requiring absolute positioning over many revolutions.

Is this encoder suitable for high-speed applications?

Yes, with a maximum rotational speed rating of 12,000 RPM, this encoder is designed for high-speed motion control applications such as spindle monitoring, fast conveyor systems, and high-performance robotics. The magnetic sensing technology provides stable and accurate feedback even at these elevated speeds.

What environmental protection does this encoder offer?

The encoder is housed in a rugged enclosure rated IP65, providing protection against dust ingress and low-pressure water jets from any direction. This makes it suitable for use in industrial environments with exposure to particulates and occasional washdowns.

Package Includes

  • 1 x Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-RBD01 Absolute Rotary Encoder

Additional Information

Weight 0.27 kg
Dimensions 6.8 × 6.8 cm
